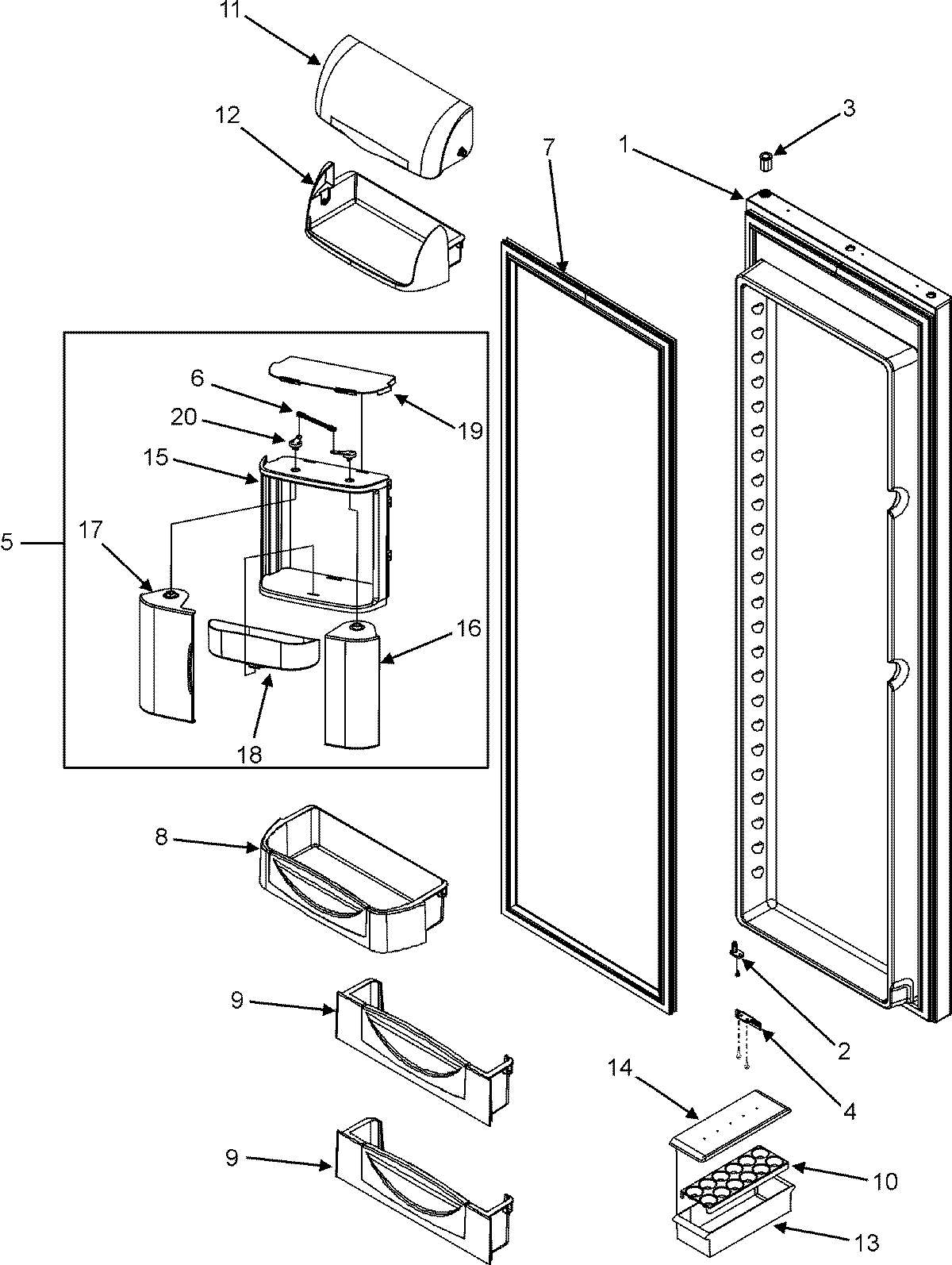

GC2225GEK5 15 – REFRIGERATOR DOOR (GC2225GEK3/5/9)

GC2225GEK5 15 – REFRIGERATOR DOOR (GC2225GEK3/5/9)

Written by

in

GC2225GEK5 15 – REFRIGERATOR DOOR (GC2225GEK3/5/9)

Products

PositionProduct
1MAY 12818239B
1MAY 67005773
2CLOSURE, DOOR (BLK)
2MAY M0220432
2MAY 12113204
3MAY 10961002
4MAY M0211018
4MAY 67006516
4SCREW
4MAY 12636401B
5MAY 67003321
6Linkage, Center Chiller (2)
7W10840101 Whirlpool Refrigerator FIP Gasket
8MAY 67004229
9MAY 67004473
10MAY 10436506
11MAY 67001325
12MAY 67002304
13MAY 10423131
14MAY 10436404
15Frame, Chiller (Large)
16Door Chiller (RT) (Large)
17Door Chiller (LT) (Large)
18Tray, Chiller (2)
19Cover, Chiller (2)
20Linkage, Chiller (4)
