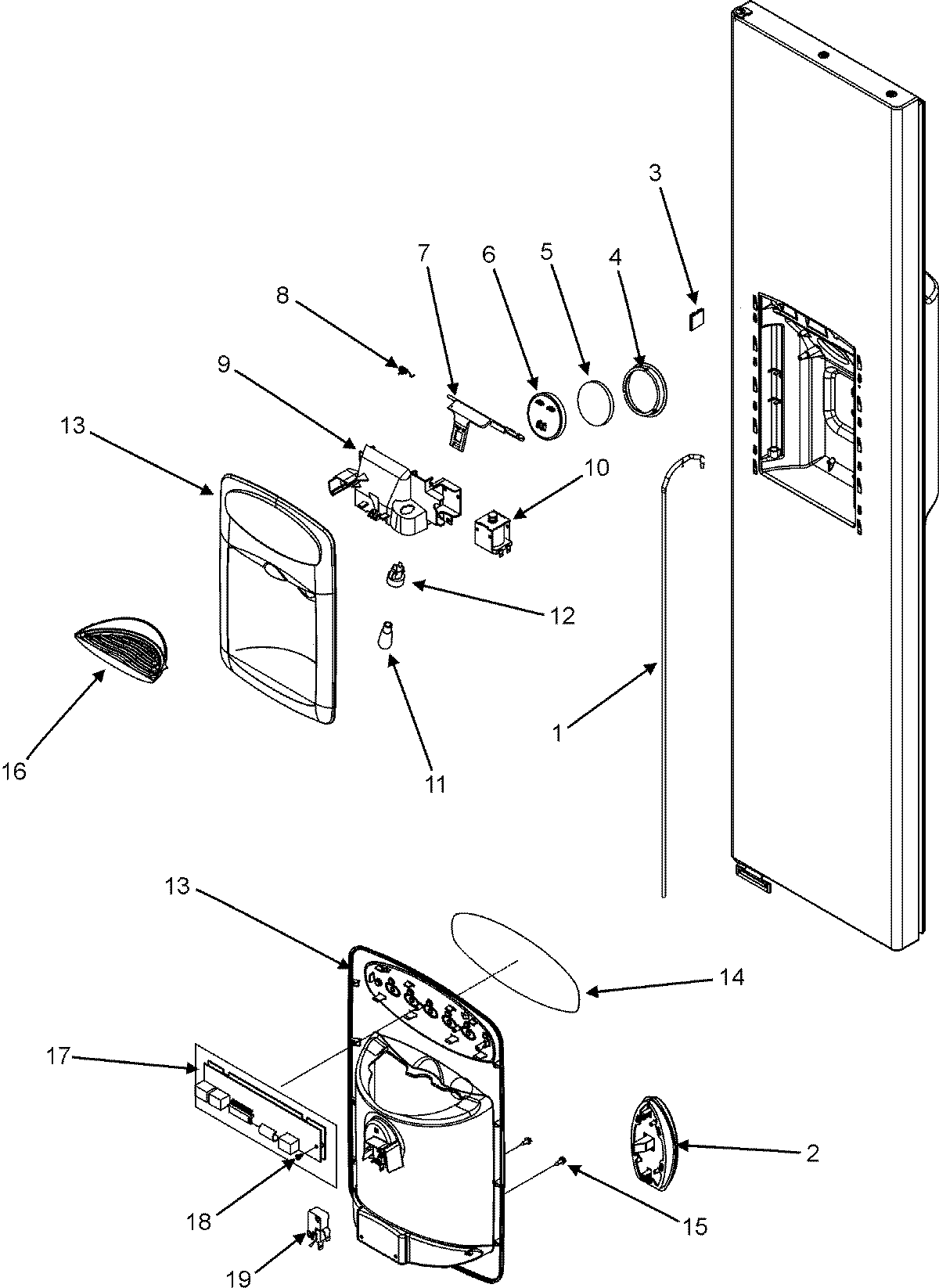

GC2225GEK9 07 – FOUNTAIN (GC2225GEK3/5/9)

Products

Position	Product
1	W10833902 Whirlpool Refrigerator Clamp
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	ACTR PAD FRAME ASSY. (BLK)
3	MAY M0104102
4	MAY 12665101
5	MAY 12563401
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	SCREW, SM
9	MAY 12703606
9	MAY 67005010
10	MAY 67002170
10	MAY Y67006001
10	WP488234 Whirlpool Air Conditioner Screw
11	Bulb, Light
12	MAY 12617501
13	MAY 67006015
13	MAY 67007003
14	INSERT, FACADE (BLK)
15	Screw (2)
16	WP67005636 Whirlpool Refrigerator Dispenser Drip Tray
17	MAY 67005013
17	MAY 67007154
18	MAY M0237902
18	MAY 67006683
19	WP12575501 Whirlpool Refrigerator Micro Switch
