GC2225GEK9 14 – ICE MAKER (GC2225GEK3/5/9)

GC2225GEK9 14 – ICE MAKER (GC2225GEK3/5/9)

Written by

in

GC2225GEK9 14 – ICE MAKER (GC2225GEK3/5/9)

Products

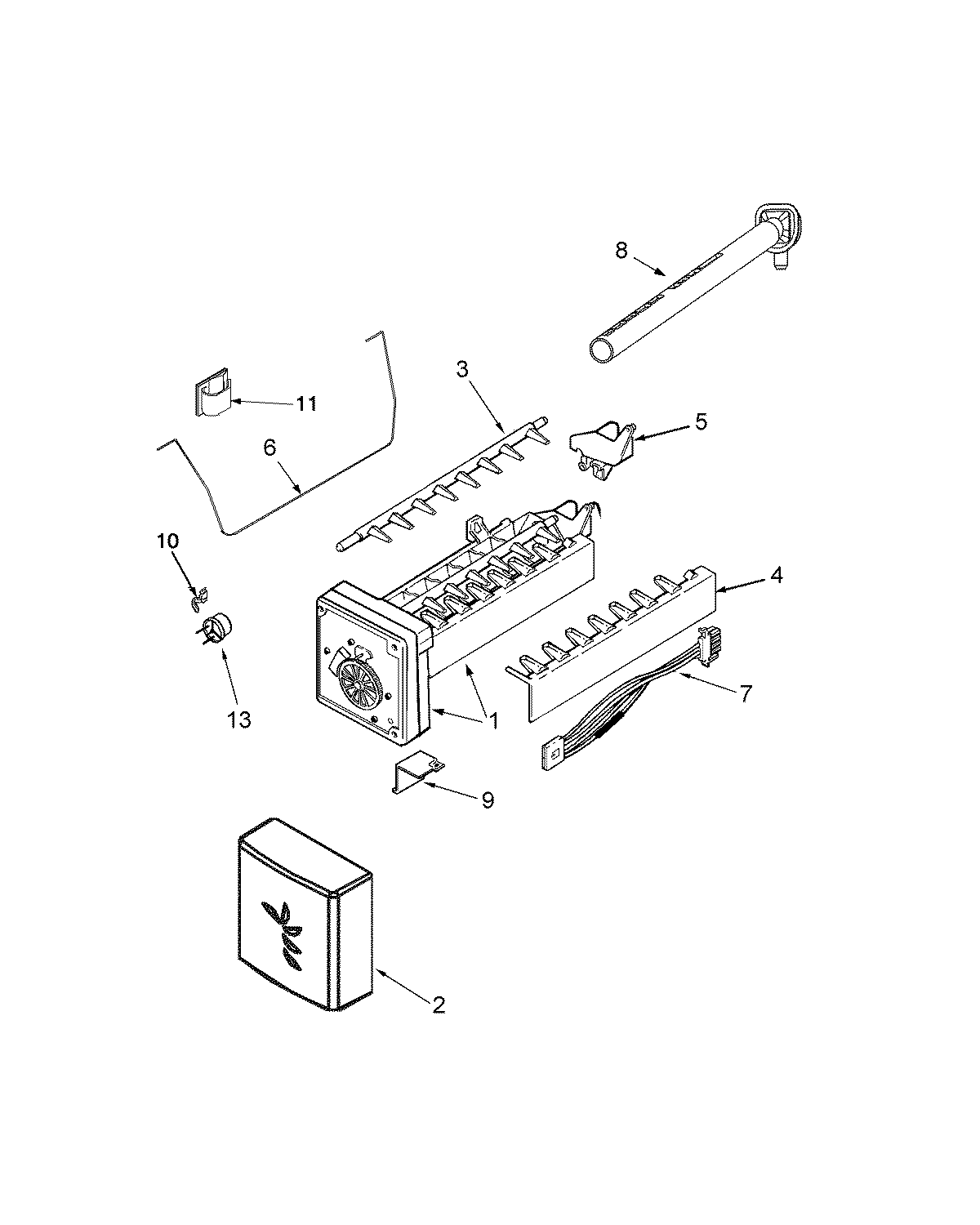

PositionProduct
NISHIELD, ICE MAKER
NIMAY B5720302
NIWP627985 Whirlpool Icemaker Cycling Thermostat
1MAY D7846305
1WPW10190972 Whirlpool Refrigerator Icemaker
1MAY M0238833
1BRKT, ICE MAKER
2Cover
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP628356 Whirlpool Refrigerator Fill Cup
6MAY 12671401Q
7MAY 67002281
7MAY 12975102
8MAY 67003663
9MAY 95108-1
9BRACKET, MODULE & HEATER
10WP2315522 Whirlpool Refrigerator Clip
11WPM0104106 Whirlpool Refrigerator Clip
13MAY 67005031
