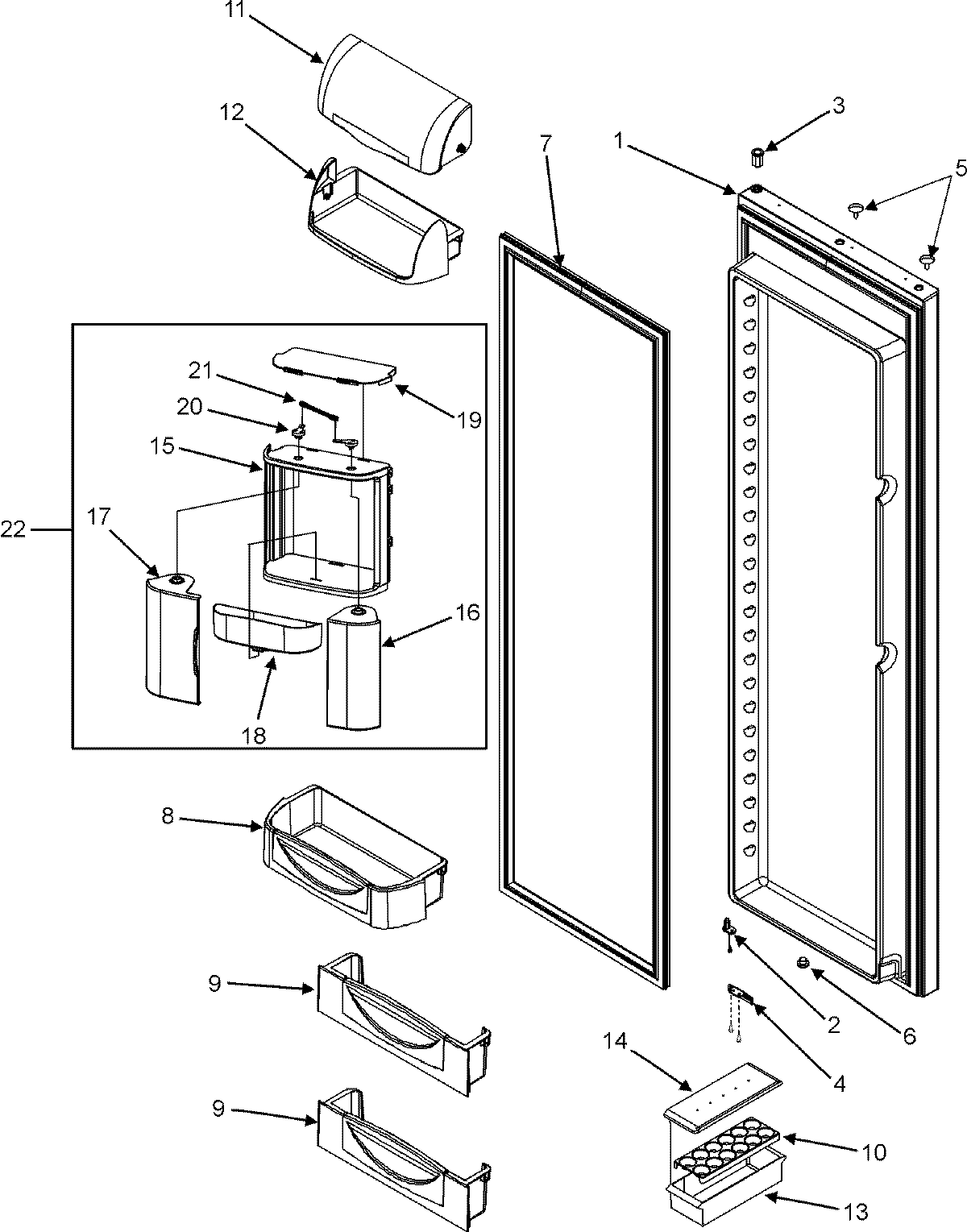

GC2225GEKB 15 – REFRIGERATOR DOOR (GC2225GEKB/S/W)

Products

PositionProduct
1MAY 12818235B
1MAY 67005105
2CLOSURE, DOOR (BLK)
2MAY M0220432
2MAY 12113204
3MAY 10961002
4MAY 12636401B
4MAY 67006516
4MAY M0211018
5MAY M0311604
6MAY A3080001
7W10840101 Whirlpool Refrigerator FIP Gasket
8MAY 67004229
9MAY 67004473
10MAY 10436506
11MAY 67001325
12MAY 67002304
13MAY 10423131
14MAY 10436404
15Frame, Chiller (Large)
16Door Chiller (RT) (Large)
17Door Chiller (LT) (Large)
18Tray, Chiller (2)
19Cover, Chiller (2)
20Linkage, Chiller (4)
21Linkage, Center Chiller (2)
22MAY 67003321
