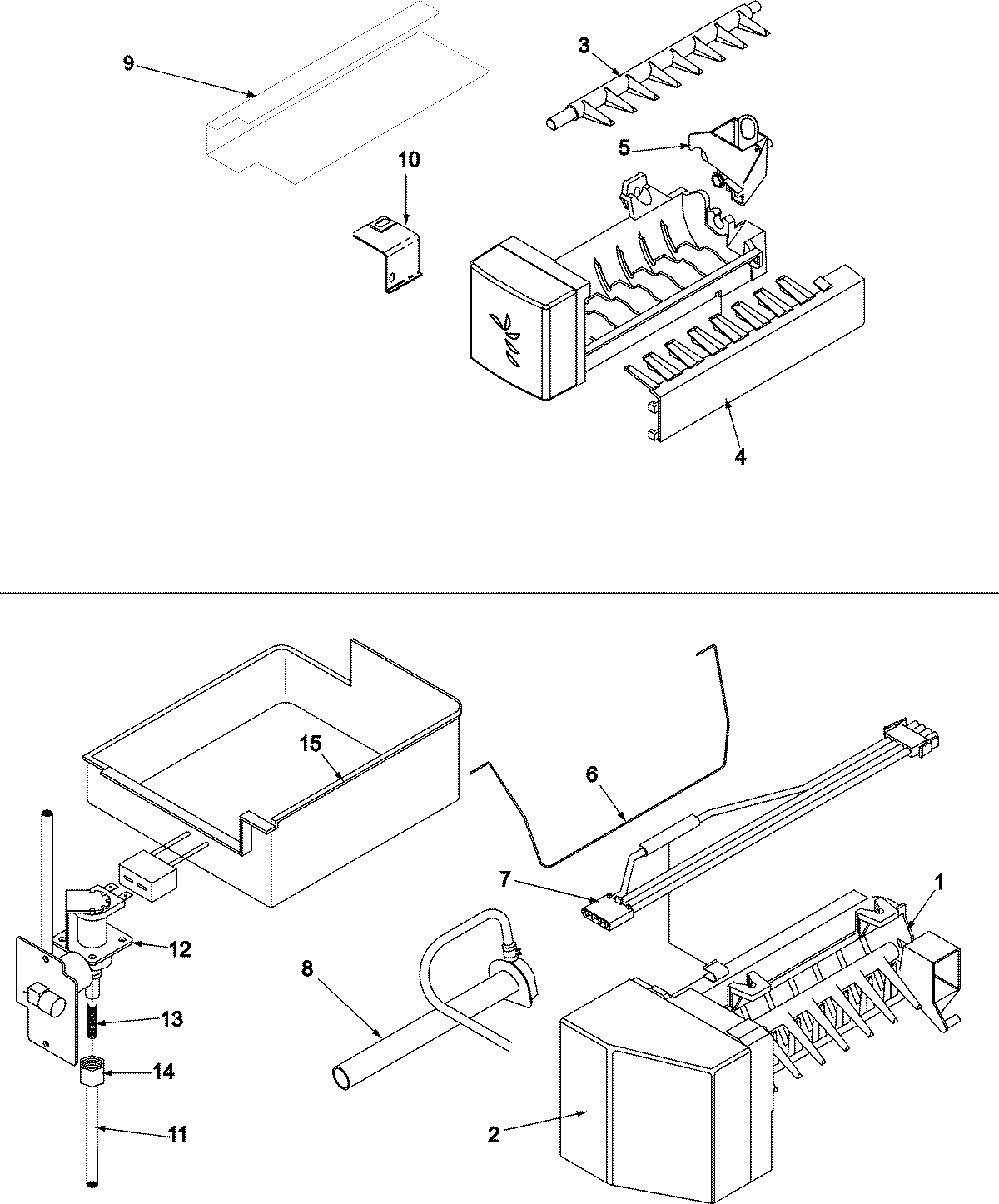

GC2225PEKS 12 – OPTIONAL ICE MAKER KIT-IC510S

Products

Position	Product
NI	MAY 67006022
NI	MAY 67005031
NI	SCREW, SM
NI	MAY 67005603
NI	Clip
NI	W10833902 Whirlpool Refrigerator Clamp
1	MAY D7846305
1	MAY 67004822
2	WPW10289690 Whirlpool Ice Maker Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	MAY 12671401Q
7	MAY 67002281
8	MAY 67003663
9	MAY 95108-1
9	SHIELD, ICE MAKER
10	BRKT, ICE MAKER
11	MAY A3223101
11	WPB5705307 Whirlpool Refrigerator Tube
12	MAY 67002250
13	SPRING, ANTI KINK
14	MAY 67003190
15	MAY 10476207
