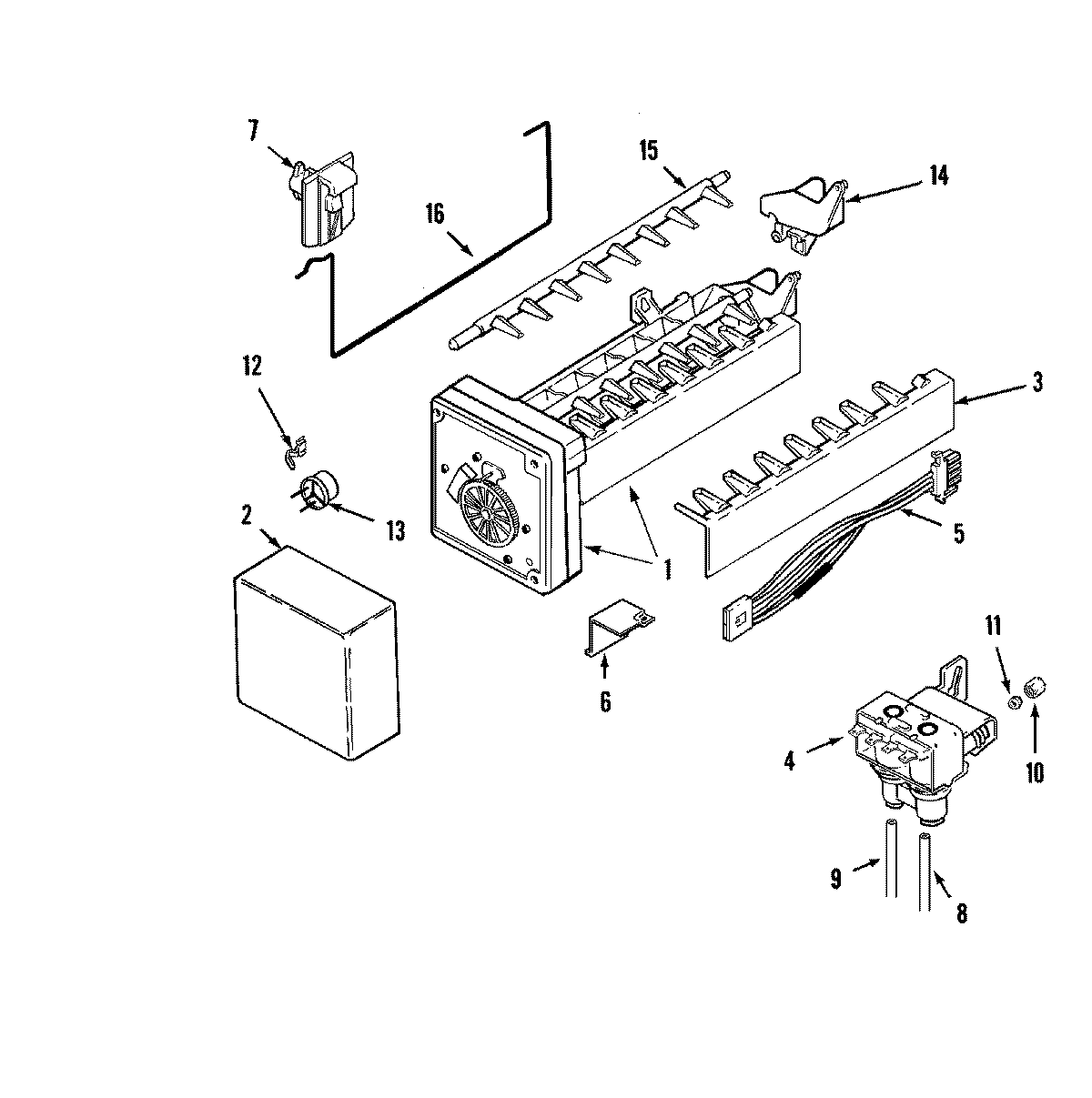

GC2227CDFB 10 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	MAY 61005948
2	MAY 61005374
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	MAY 61005997
4	MAY 61002819
5	MAY 61004436
6	BRACKET, MODULE & HEATER
6	MAY 95108-1
7	WP61005028 Whirlpool Refrigerator Support
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-26
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	MAY 95093-1
13	WP627985 Whirlpool Icemaker Cycling Thermostat
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61004136
