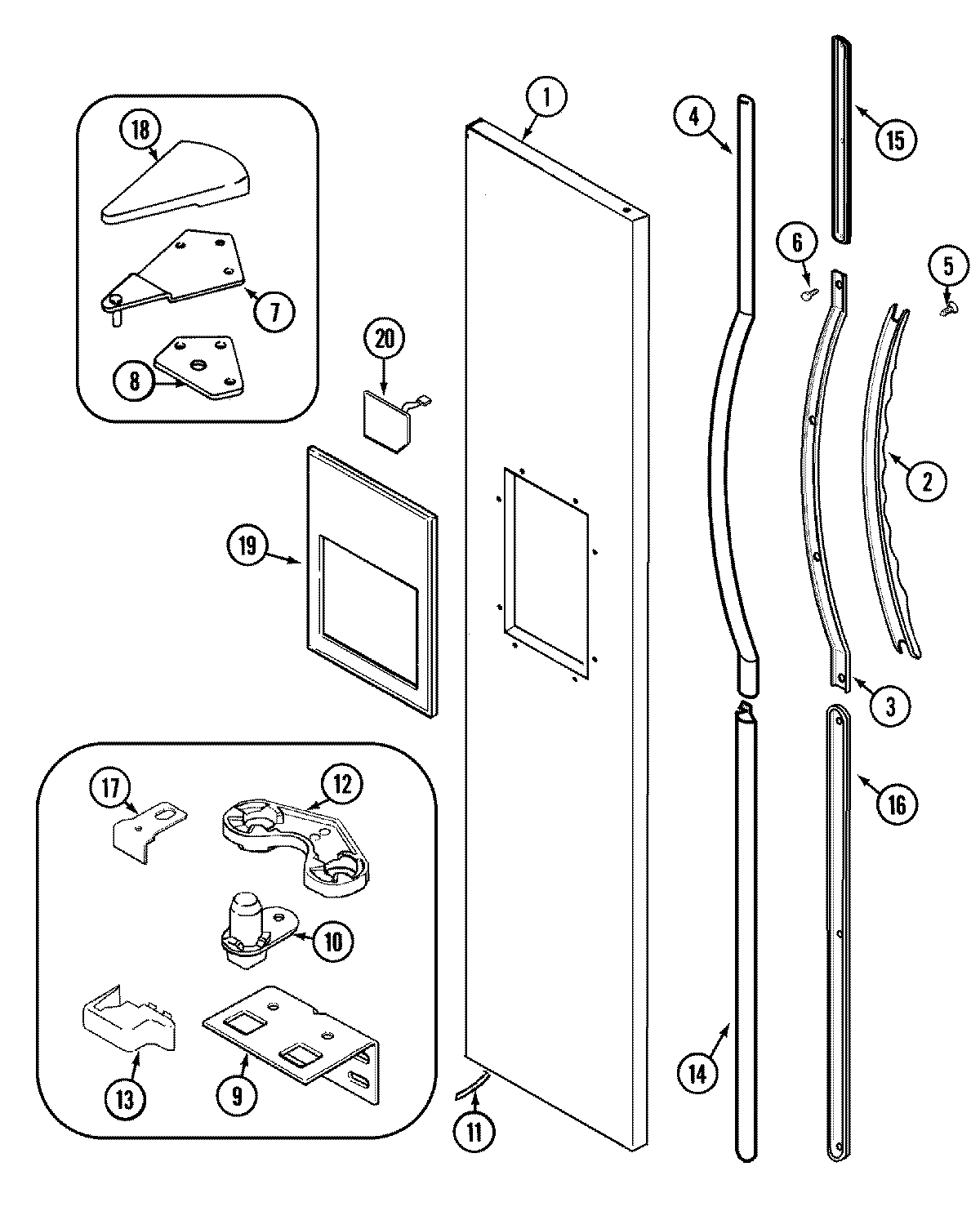

GC2227DEDW 07 – FREEZER OUTER DOOR (REV 10)

GC2227DEDW 07 – FREEZER OUTER DOOR (REV 10)

Written by

in

GC2227DEDW 07 – FREEZER OUTER DOOR (REV 10)

Products

PositionProduct
1MAY 61004129
2MAY 61004291
3MAY 61004292
4MAY 61003352
5MAY 61003351
7MAY 61001971
7MAY 65275-86
8MAY 61001922
93400112 Whirlpool Refrigerator Screw
9MAY 61001918
10MAY 61003174
11MAY 61003852
11WP2300868 Whirlpool Refrigerator Fitting
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61003219
14MAY 61003966
15MAY 61003361
16MAY 61003969
17MAY 61004120
17W10856122 Whirlpool Refrigerator Screw
18WP8281196 Whirlpool Screw
18MAY 61004642
19415013-35 Whirlpool Refrigerator Screw
19MAY 61004033
20MAY 61003422
20MAY 61003421
