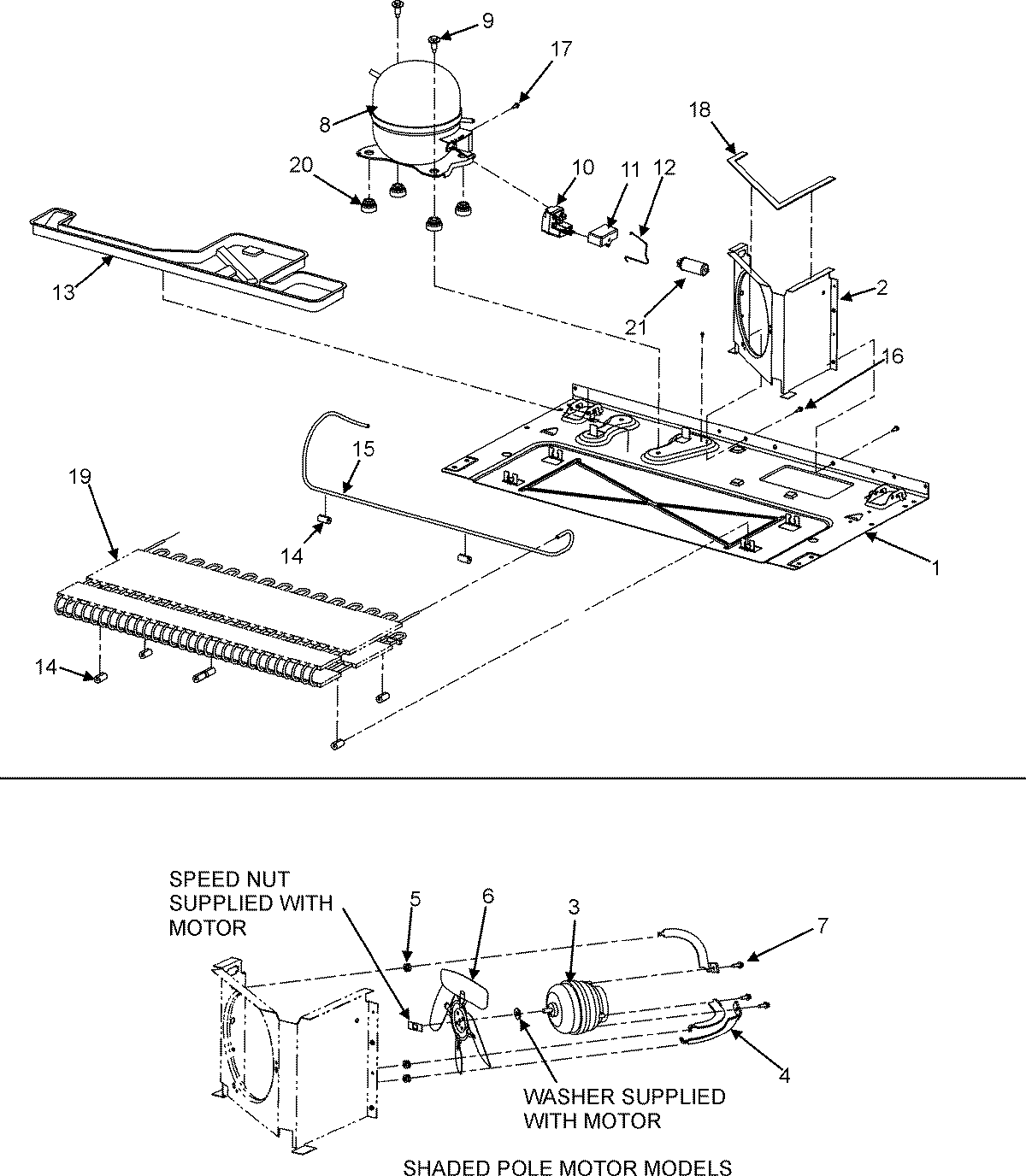

GC2227HEK3 02 – COMPRESSOR (GC2227HEK3/5/9)

Products

Position	Product
NI	MAY 67005796
1	MAY 67001512
2	MAY 12687101
3	Motor, Condenser
4	Bracket, Motor (3)
5	GROMMET, BRACKET
6	WP12587601 Whirlpool Refrigerator Condenser Blade
7	Screw (3)
8	MAY 67005028
9	MAY M0221523
10	MAY 67004815
11	MAY 67002815
12	MAY 67003179
13	MAY 67004744
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004700
16	MAY M0238616
17	MAY M0231604
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67002235
20	67003493 Whirlpool Refrigerator Compressor Grommet
21	MAY 67005062
