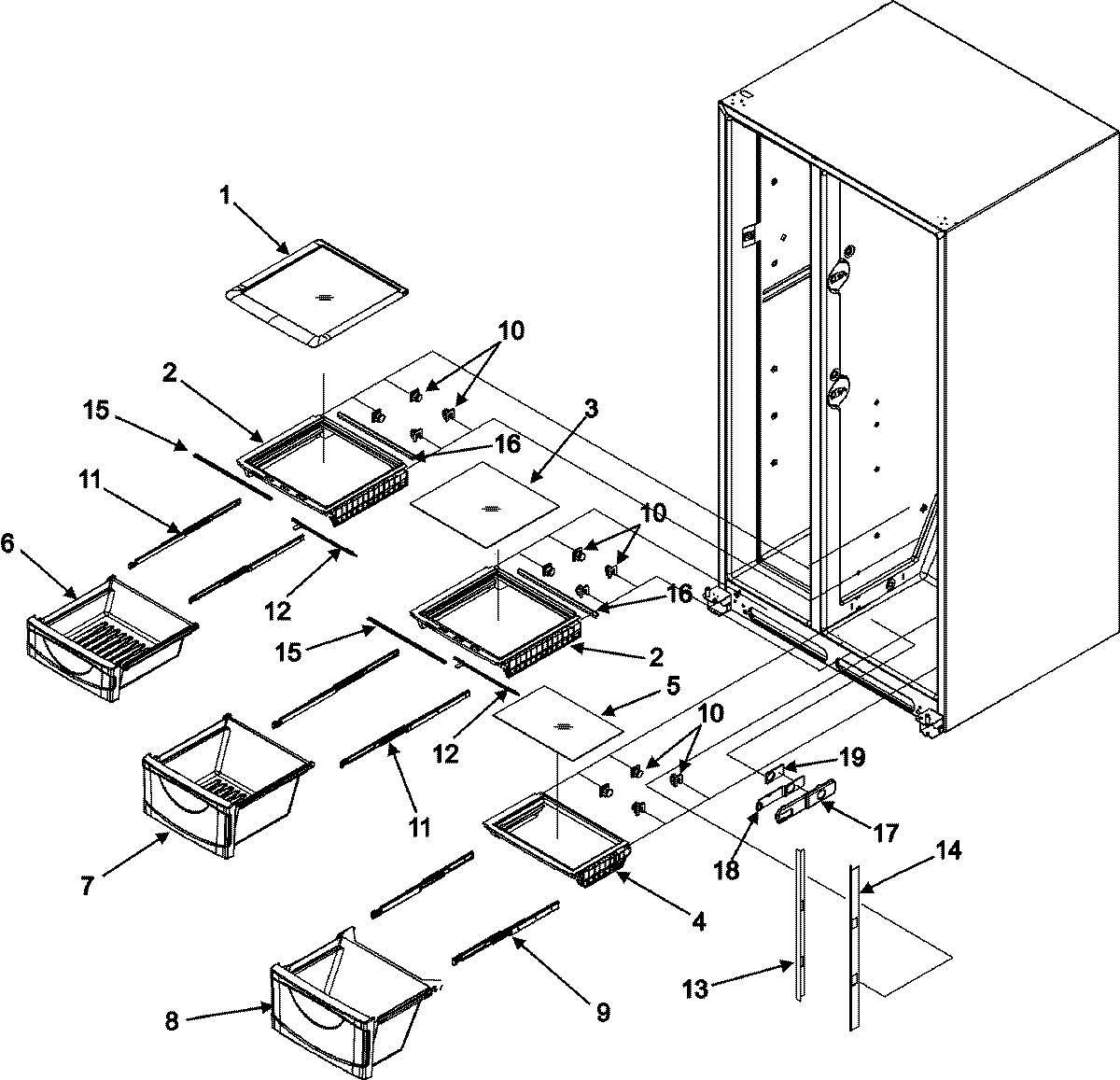

GC2227HEK3 04 – CRISPER ASSEMBLY (GC2227HEK3/5/9)

GC2227HEK3 04 – CRISPER ASSEMBLY (GC2227HEK3/5/9)

Written by

in

GC2227HEK3 04 – CRISPER ASSEMBLY (GC2227HEK3/5/9)

Products

PositionProduct
1MAY 67004130
2Frame, Crisper
3MAY 67004246
4MAY 67004247
5MAY 67004132
6MAY 67005114
7MAY 67004963
8MAY 67004487
967005620 Whirlpool Refrigerator Glide CRI
10WP12603701 Whirlpool Refrigerator Support
11MAY M0213129
11MAY 67004489
12MAY 67004885
13PILLAR (LT)
14PILLAR (RT)
15MAY 67004889
16MAY 67004249
17HOUSING, TEMP. CONTROL
18SLIDE, TEMP. CONTROL
19MAY 67004177
