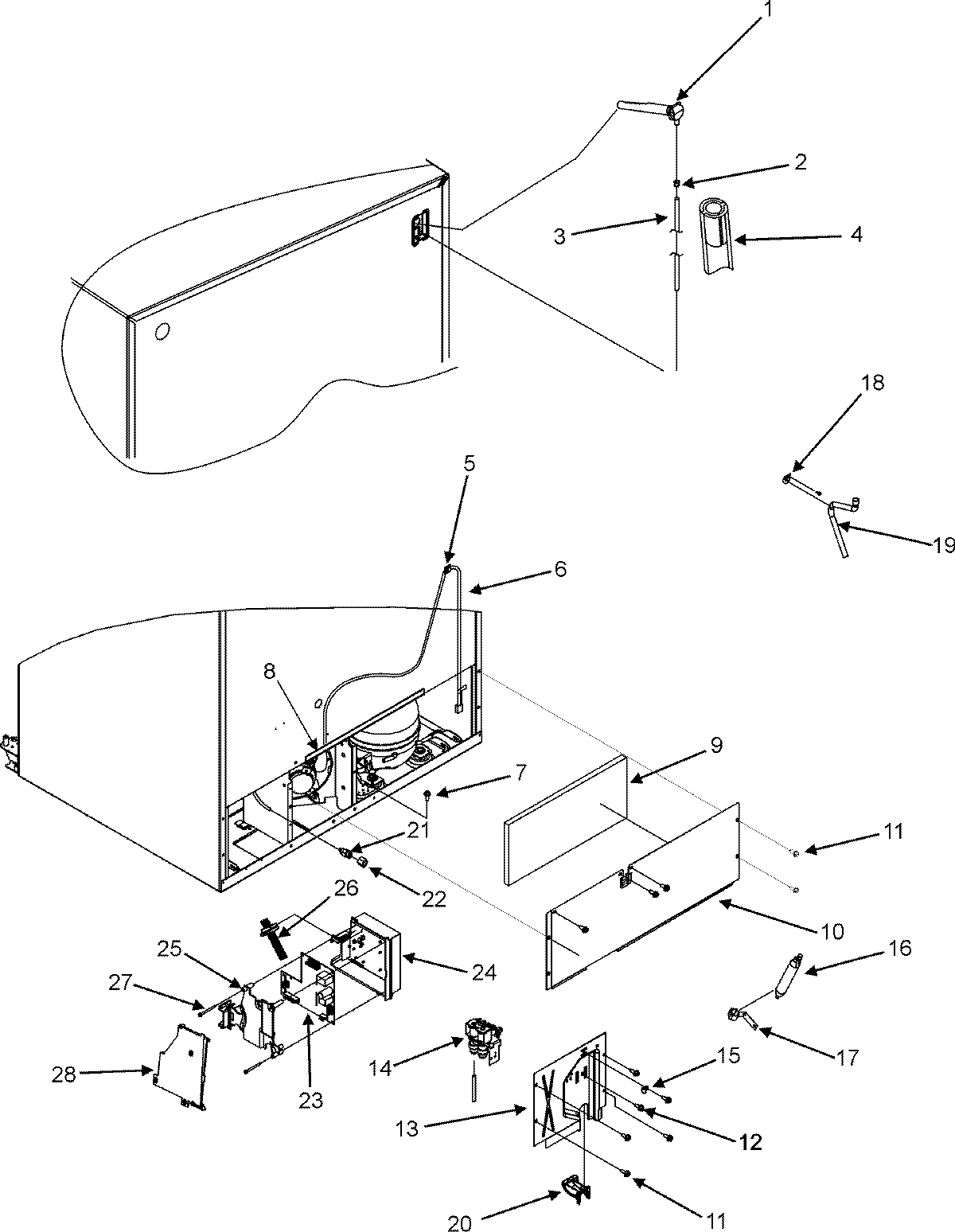

GC2227HEK5 01 – CABINET BACK (GC2227HEK3/5/9)

GC2227HEK5 01 – CABINET BACK (GC2227HEK3/5/9)

Written by

in

GC2227HEK5 01 – CABINET BACK (GC2227HEK3/5/9)

Products

PositionProduct
1MAY 67003663
2Clip
3WPB5705307 Whirlpool Refrigerator Tube
4MAY A3223101
5WPM0104106 Whirlpool Refrigerator Clip
6MAY 67002229
7MAY M0239216
8Gasket
967003796 Whirlpool Refrigerator Fiber Acoustic
10MAY 67002230
11MAY M0238616
12681390 Whirlpool Refrigerator Screw
13MAY 67005117
14MAY 67005118
15W10833902 Whirlpool Refrigerator Clamp
16DRIER
17MAY 10547002
17W10709801 Whirlpool Refrigerator Screw
18MAY M0102303
18WP489069 Whirlpool Compactor Screw
19MAY 12580401
2012831101 Whirlpool Refrigerator Tube Clamp
21MAY 67005003
22MAY 67004844
23MAY 12002629
24BOX, HV CONTROL
25SPACER, HV BOX
26MAY 67005797
27MAY 67005420
28MAY 67005421
28MAY 67005332
