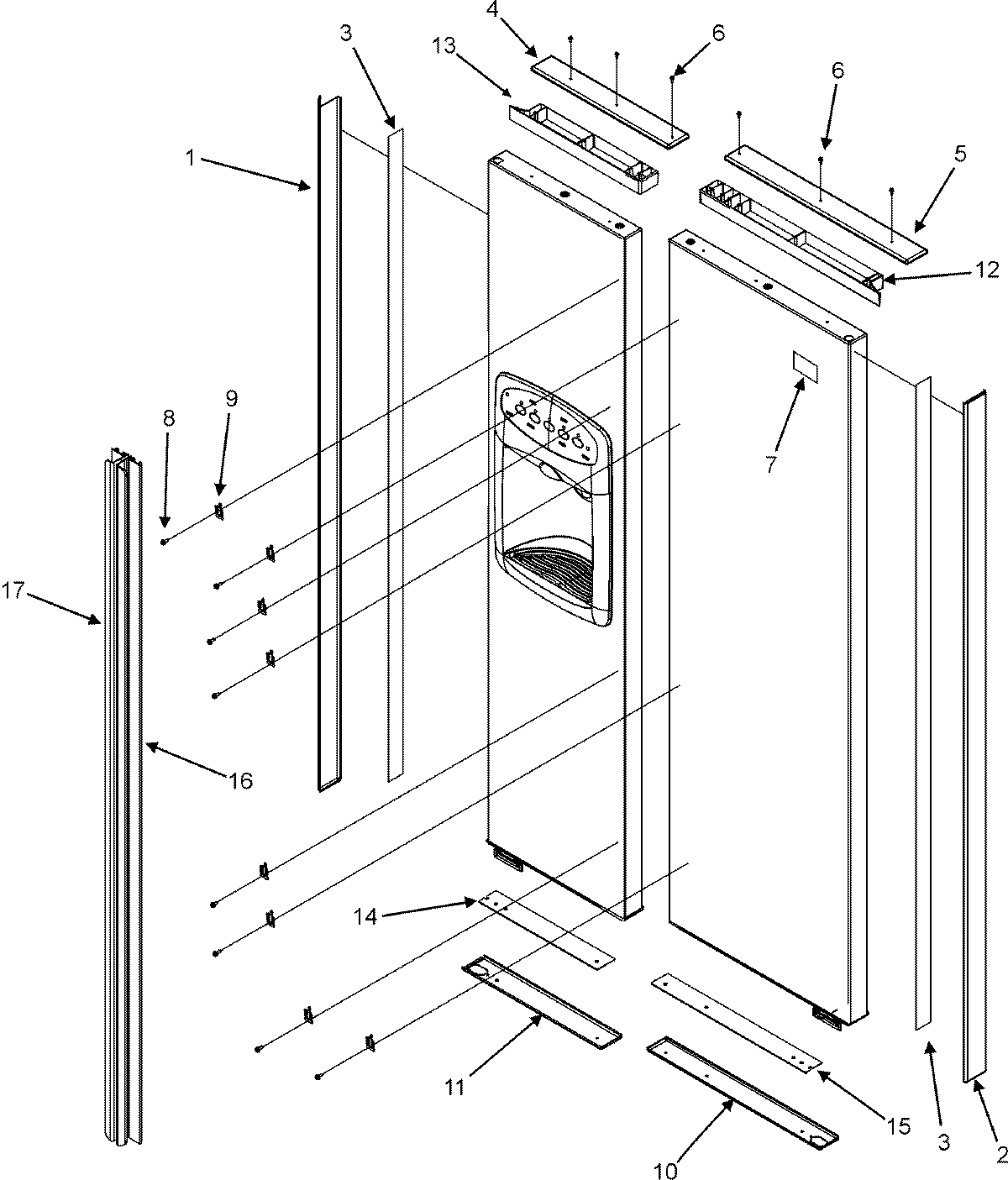

GC2227HEK5 11 – HANDLES & TRIM (GC2227HEK3/5/9)

GC2227HEK5 11 – HANDLES & TRIM (GC2227HEK3/5/9)

Written by

in

GC2227HEK5 11 – HANDLES & TRIM (GC2227HEK3/5/9)

Products

PositionProduct
1MAY 12638301B
2MAY 12638302B
3MAY M0275178
4MAY 12626505B
5MAY 12626502B
6W11245710 Whirlpool Refrigerator Screw
7BEZEL, NAMEPLATE (BLK)
8WP489399 Whirlpool Refrigerator Screw
9MAY 12315101
10MAY 67005781
11MAY 67005784
12MAY 67003750
13MAY 67003749
13MAY 67004822
14MAY 67005476
15MAY 67005477
16MAY 67005777
17MAY 67005779
