GC2227HEKS 02 – COMPRESSOR (GC2227HEKB/S/W)

GC2227HEKS 02 – COMPRESSOR (GC2227HEKB/S/W)

Written by

in

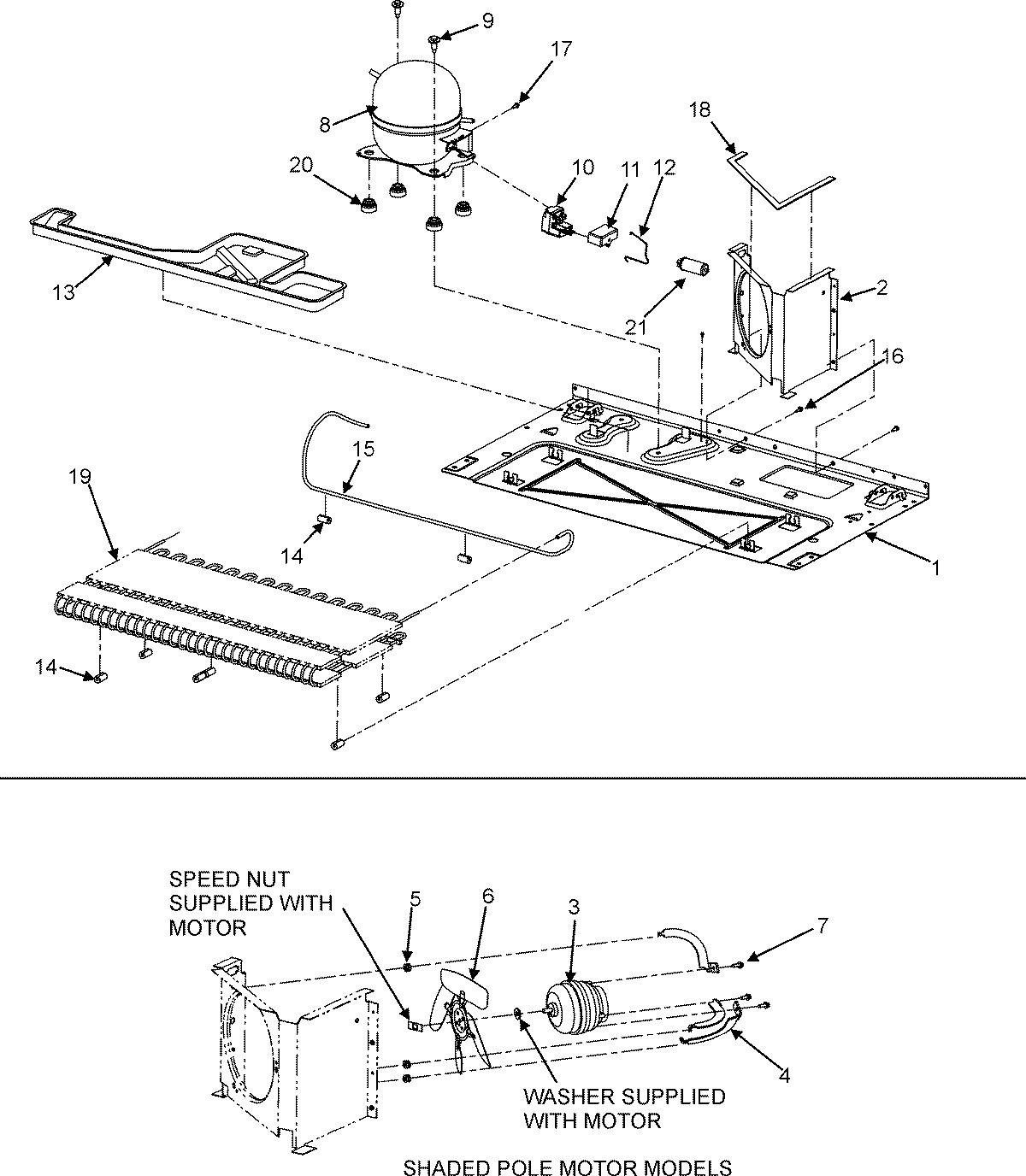

GC2227HEKS 02 – COMPRESSOR (GC2227HEKB/S/W)

Products

PositionProduct
NIMAY 67005796
1MAY 67001512
2MAY 12687101
3Motor, Condenser
4Bracket, Motor (3)
5GROMMET, BRACKET
6WP12587601 Whirlpool Refrigerator Condenser Blade
7Screw (3)
8MAY 67005028
9MAY M0221523
10MAY 67004815
11MAY 67002815
12MAY 67003179
13MAY 67004744
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67004700
16MAY M0238616
17MAY M0231604
18WP854334 Whirlpool Air Conditioner Sealing Strip
19WP67006131 Whirlpool Refrigerator Condenser
19MAY 67002235
2067003493 Whirlpool Refrigerator Compressor Grommet
21MAY 67005062
