GC2227HEKS 07 – FOUNTAIN (GC2227HEKB/S/W)

GC2227HEKS 07 – FOUNTAIN (GC2227HEKB/S/W)

Written by

in

GC2227HEKS 07 – FOUNTAIN (GC2227HEKB/S/W)

Products

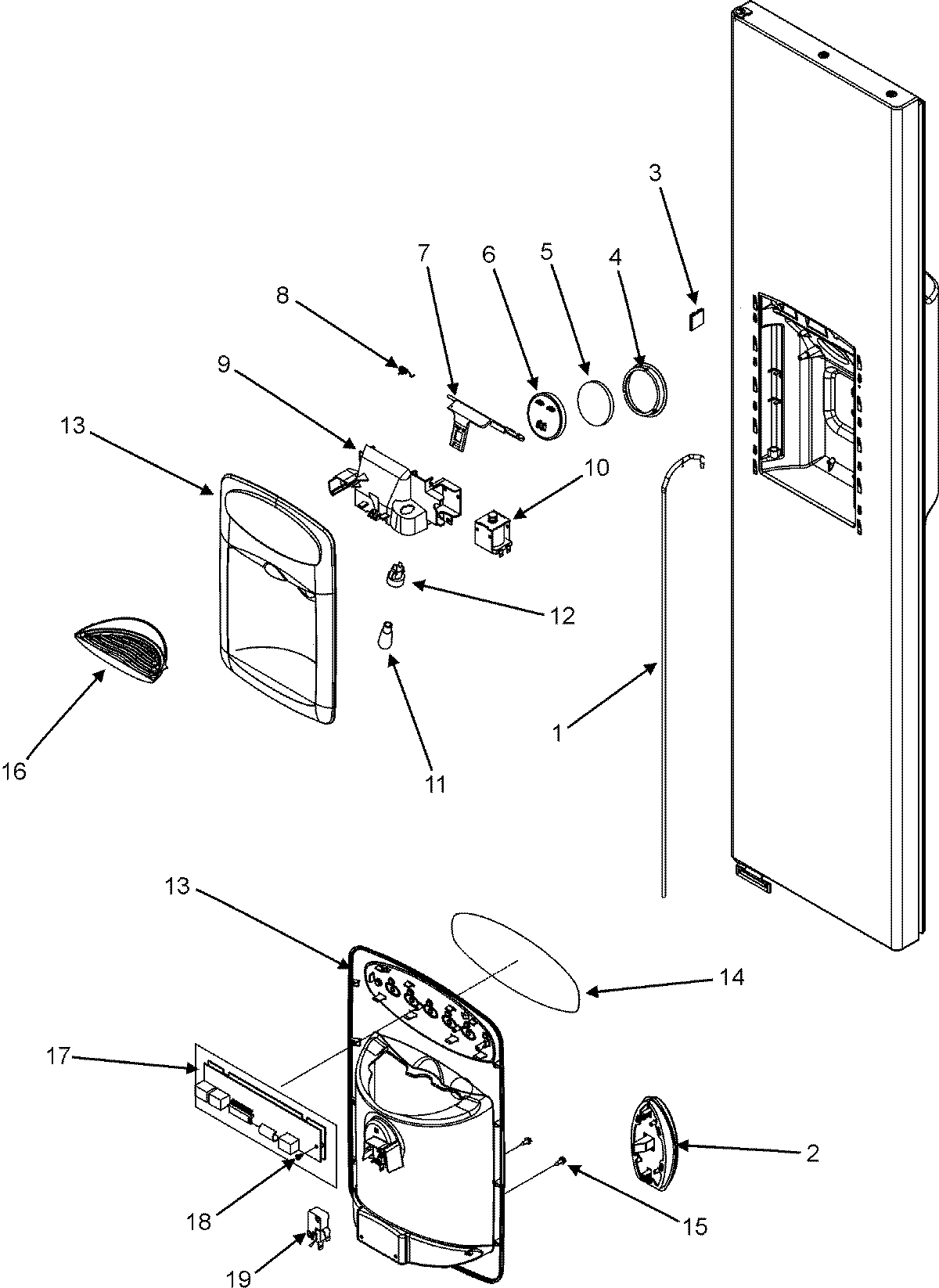

PositionProduct
1W10833902 Whirlpool Refrigerator Clamp
167004938 Whirlpool Refrigerator Waterline Assembly
2ACTR PAD FRAME ASSY. (BLK)
3MAY M0104102
4MAY 12665101
5MAY 12563401
6WP12562701 Whirlpool Dispenser Door
7MAY 67004119
8WP12565502 Whirlpool Refrigerator Spring
9MAY 67005010
9SCREW, SM
10WP488234 Whirlpool Air Conditioner Screw
10MAY 67002170
11Bulb, Light
12MAY 12617501
13MAY 67005785
14MAY 67005787
15Screw (2)
16WPY67003722 Whirlpool Refrigerator Sump Tray
17WPW10204681 Whirlpool Refrigerator Electronic Control Board
18MAY M0237902
19MAY 12575502
