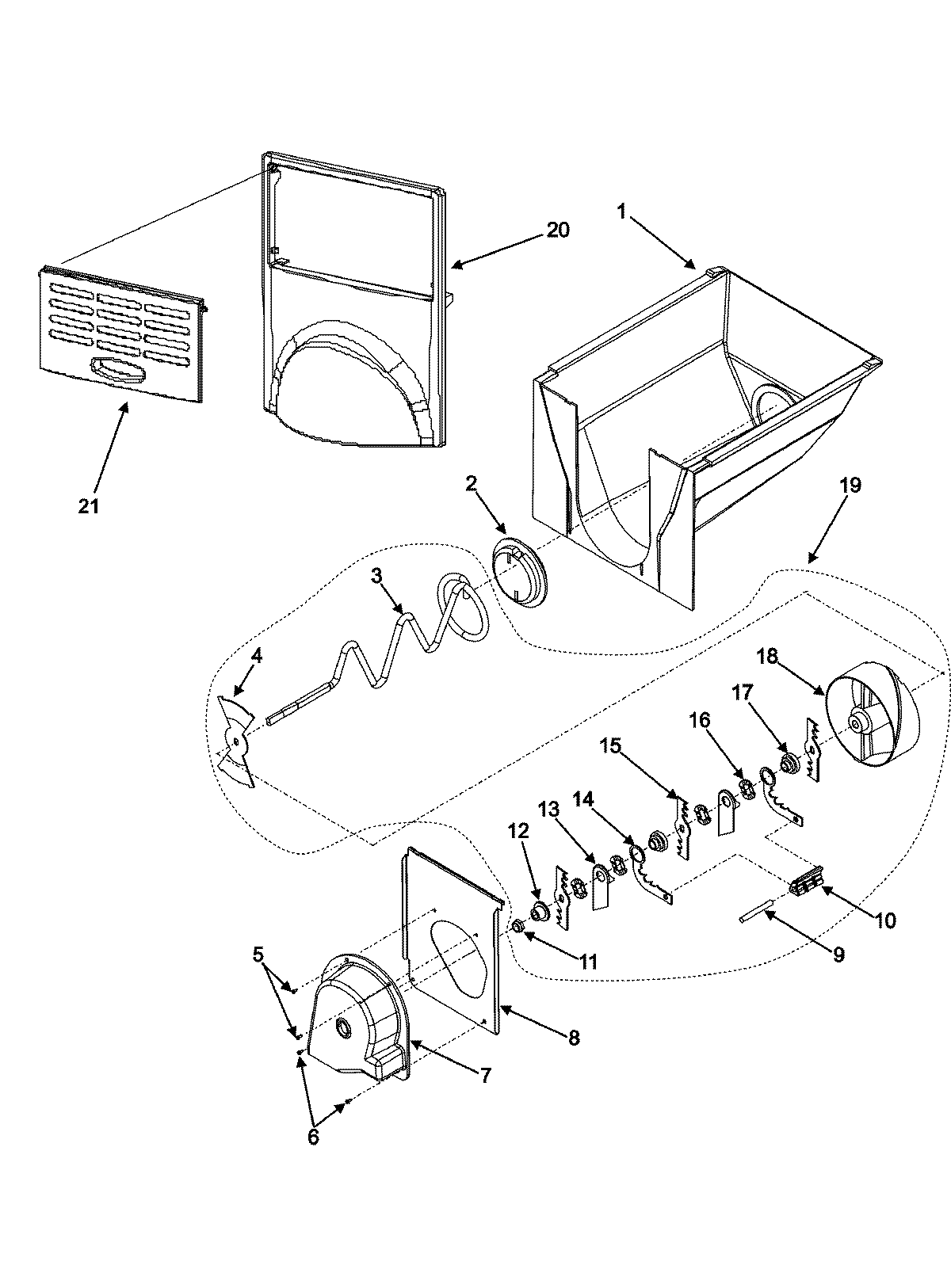

GC2227HEKS 13 – ICE BUCKET ASSY. (GC2227HEKB/S/W)

GC2227HEKS 13 – ICE BUCKET ASSY. (GC2227HEKB/S/W)

Written by

in

GC2227HEKS 13 – ICE BUCKET ASSY. (GC2227HEKB/S/W)

Products

PositionProduct
1WP67005959 Whirlpool Refrigerator Ice Bucket
2MAY D7749401
3MAY 10114401
4MAY 10113801
5MAY 59001208
6MAY M0238616
7MAY 67002271
8MAY 10115001
9MAY M1200108
10MAY 10114101
11WPM0223101 Whirlpool Refrigerator Nut
12MAY 10113901
13MAY 10275201
14MAY 10114601
15MAY 10114501
16MAY 10275101
17WASHER STEPPED
18WP67002052 Whirlpool Ice Crusher Blade
19WP12740302 Whirlpool Refrigerator Crusher Mechanism
20MAY 67004255
21MAY 67004256
