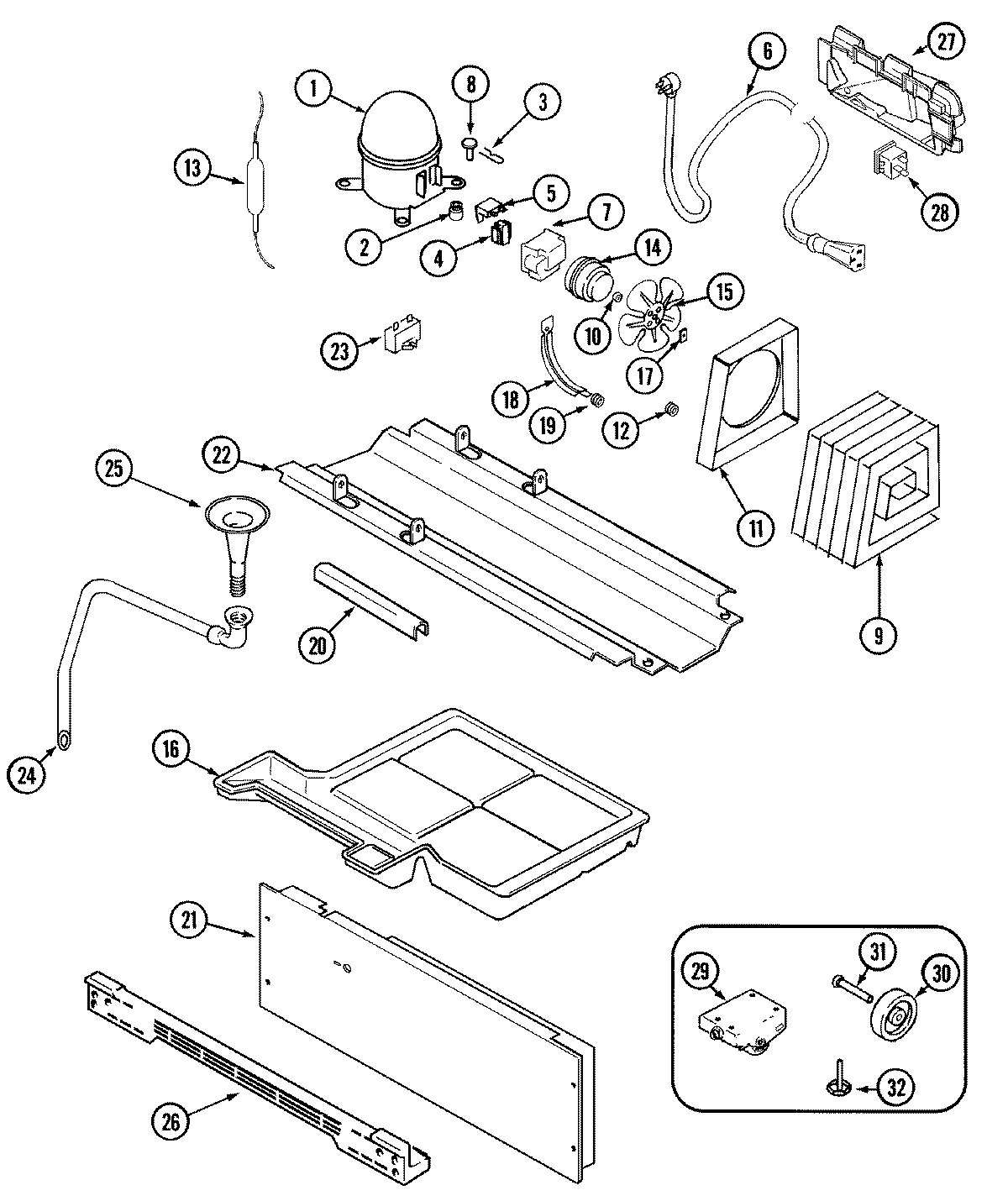

GC2227SDFW 01 – COMPRESSOR (REV.10)

Products

Position	Product
NI	MAY 12001550
NI	MAY 61003597
NI	MAY 16009103
1	MAY 61004900
1	MAY 12001726
2	MAY 17245-4
2	WP4387558 Whirlpool Refrigerator Compressor Grommet
3	MAY 61003099
4	MAY 61001832
5	MAY 61004872
6	MAY 61004874
7	WP61002138 Whirlpool Refrigerator Terminal Cover
8	MAY 52656-2
9	MAY 61004378
9	MAY 61003814
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	MAY 61002084
15	MAY 60683-1
16	MAY 61004095
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 61001414
19	GROMMET, BRACKET
20	MAY 61004584
21	MAY 61004953
21	MAY 65275-50
22	WP67006715 Whirlpool Refrigerator Screw
22	MAY 61005269
22	MAY 61003816
23	MAY 61004637
24	MAY 61003133
24	MAY 53516-9
25	MAY 61004751
26	MAY 61004053
26	SCREW
27	MAY 61004875
27	MAY 61002984
28	MAY 61004876
29	MAY 61002066
29	MAY 61005232
29	WP489478 Whirlpool Refrigerator Screw
30	WP61003826 Whirlpool Wheel
31	WP61002104 Whirlpool Refrigerator Pin Wheel
31	MAY 69810-1
32	MAY 61002014
