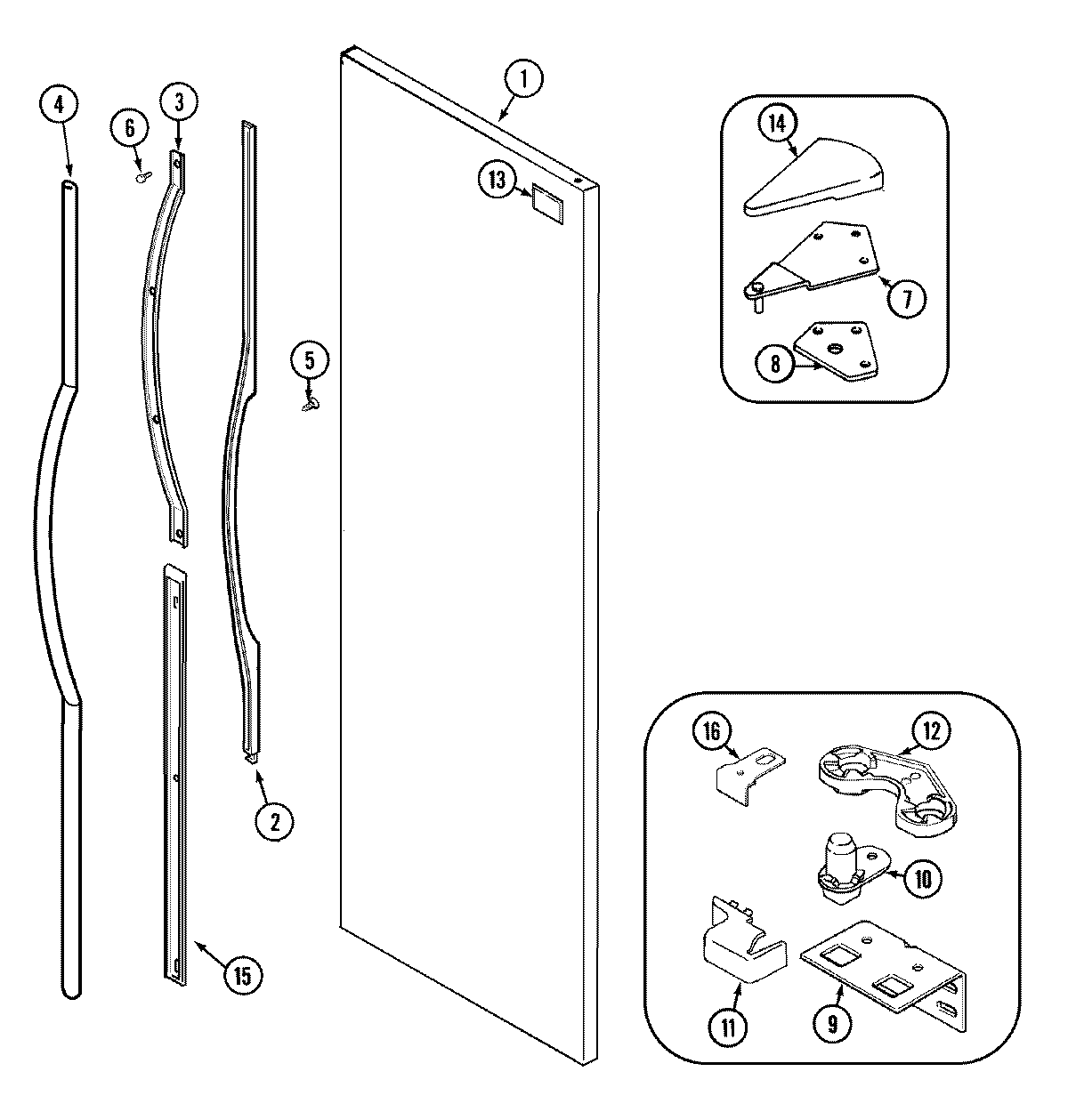

GC2228EEDW 09 – FRESH FOOD OUTER DOOR (GC2228EEDB/W)

GC2228EEDW 09 – FRESH FOOD OUTER DOOR (GC2228EEDB/W)

Written by

in

GC2228EEDW 09 – FRESH FOOD OUTER DOOR (GC2228EEDB/W)

Products

PositionProduct
NIW10856122 Whirlpool Refrigerator Screw
NIMAY 61005724
NIMAY 61004781
1MAY 61004117
1MAY 61005829
2MAY 61003739
3MAY 61004385
4MAY 61004082
5MAY 61003351
7MAY 61001971
7MAY 65275-86
8MAY 61001922
9MAY 61001918
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11MAY 61003220
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13BEZEL, NAMEPLATE (WHT)
14MAY 61004640
15MAY 61004079
16MAY 61004120
