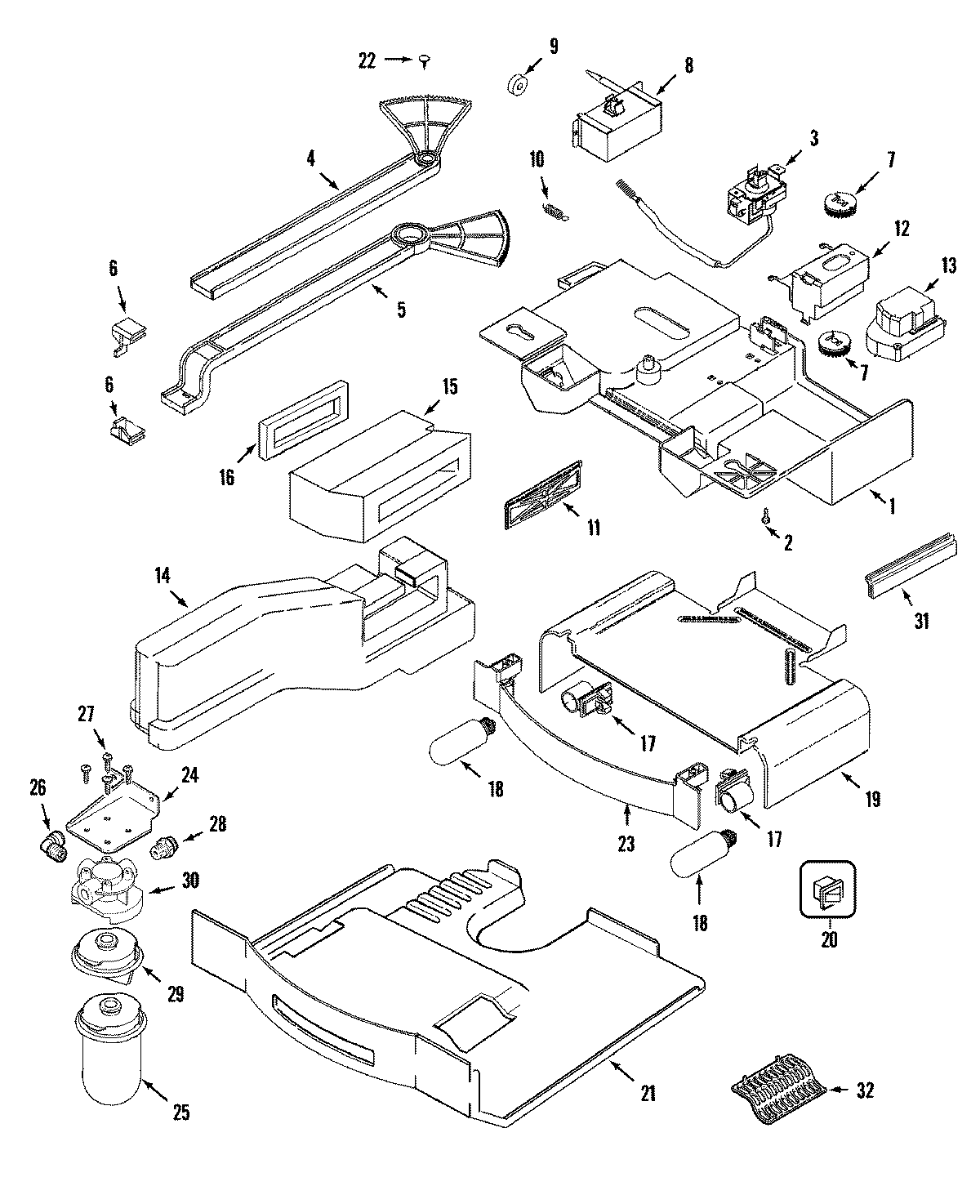

| NI | SEE NOTE GROUND WIRE, GREEN |
| NI | MAY 61006026 |
| NI | MAY 61004155 |
| NI | MAY 61003659 |
| 1 | MAY 61005021 |
| 1 | MAY 61003228 |
| 1 | MAY 61005618 |
| 1 | MAY 61005989 |
| 2 | WPW10348409 Whirlpool Screw |
| 3 | SCREW |
| 3 | MAY 61004268 |
| 4 | MAY 61003287 |
| 5 | MAY 61003293 |
| 6 | MAY 61004591 |
| 7 | MAY 61003305 |
| 8 | MAY 61005022 |
| 8 | MAY 61003359 |
| 9 | MAY 61003358 |
| 10 | MAY 61003141 |
| 11 | MAY 61003235 |
| 12 | MAY 61003315 |
| 13 | MAY 61005951 |
| 13 | WP61003601 Whirlpool Refrigerator Defrost Timer |
| 13 | MAY 405007-1 |
| 14 | MAY 61003229 |
| 14 | MAY 61003230 |
| 14 | MAY 61005972 |
| 15 | MAY 61005075 |
| 15 | MAY 61005563 |
| 15 | MAY 61006038 |
| 16 | MAY 61003819 |
| 17 | MAY 61003727 |
| 17 | MAY 70458-1 |
| 17 | MAY 61005805 |
| 18 | MAY 61003355 |
| 18 | MAY 61005975 |
| 18 | MAY 61005974 |
| 18 | W11618980 Whirlpool Light Bulb |
| 18 | MAY 61003354 |
| 19 | MAY 61005976 |
| 19 | MAY 61003238 |
| 20 | W11396033 Whirlpool Refrigerator Rocker Switch |
| 21 | MAY 61003924 |
| 22 | MAY 61003316 |
| 23 | MAY 61004380 |
| 24 | MAY 61003698 |
| 25 | MAY UKF7002AXX |
| 26 | MAY 61003705 |
| 27 | MAY 61003796 |
| 28 | MAY 61003790 |
| 29 | MAY 61003791 |
| 30 | MAY 61003789 |
| 31 | MAY 61003891 |
| 32 | MAY 61004590 |
