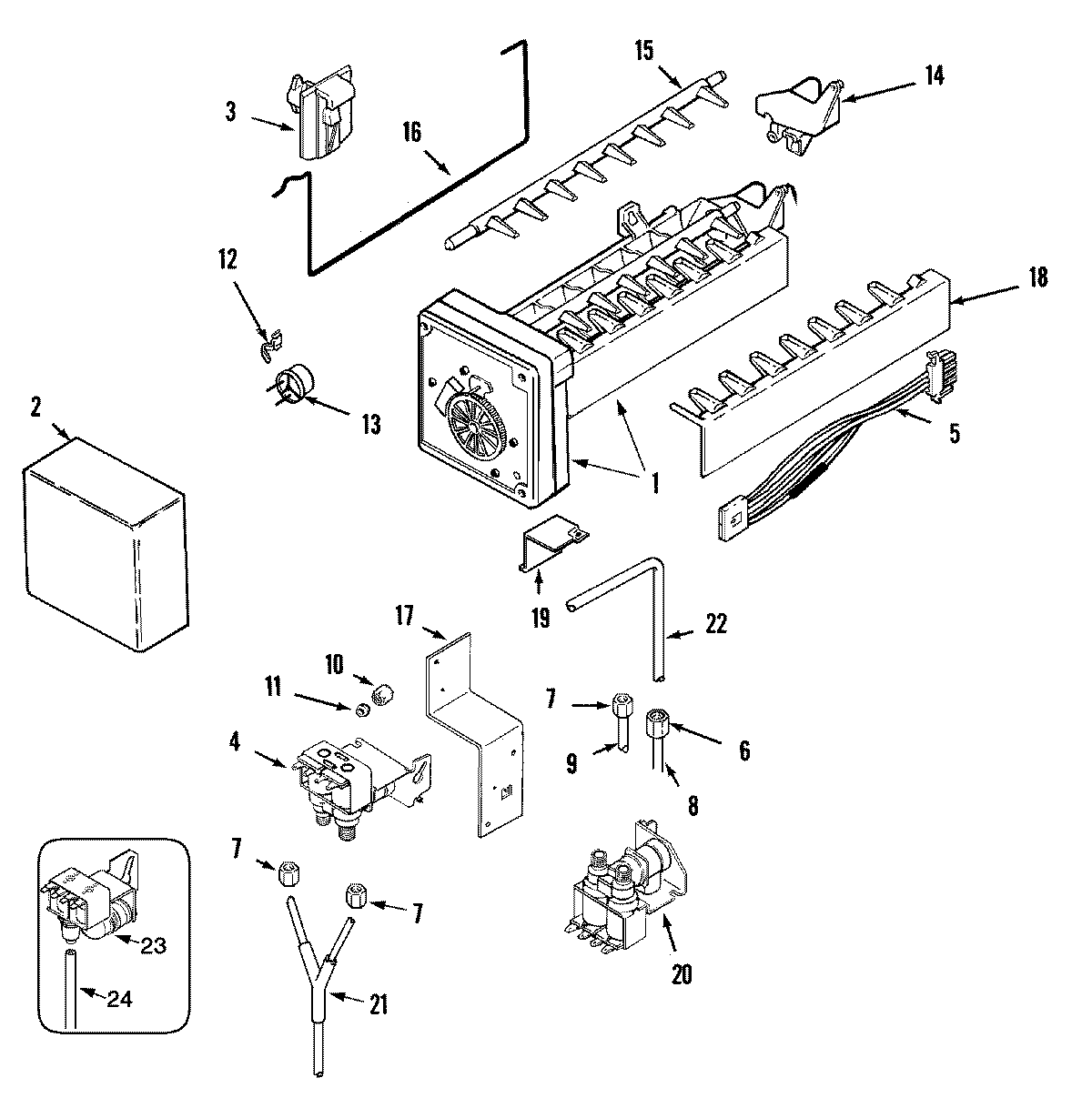

GC2228GEH5 10 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	MAY 61005948
2	MAY 61005374
3	WP61005028 Whirlpool Refrigerator Support
4	MAY 61003707
5	MAY 61005838
6	MAY 69583-2
7	WP627018 Whirlpool Refrigerator Nut
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	MAY 95093-1
13	WP627985 Whirlpool Icemaker Cycling Thermostat
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61004136
17	MAY 61003732
17	MAY 61002819
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	BRACKET, MODULE & HEATER
19	MAY 95108-1
20	WP489399 Whirlpool Refrigerator Screw
20	MAY 61004816
20	MAY 61005997
21	WPM0114003 Whirlpool Microwave Speed Clip Clamp
21	MAY 61005058
21	MAY 61004391
22	MAY 61004392
22	MAY 61005683
23	MAY 61005998
24	MAY 61005682
