GC3111SXAW 04 – GAS CONTROLS
Written by
in

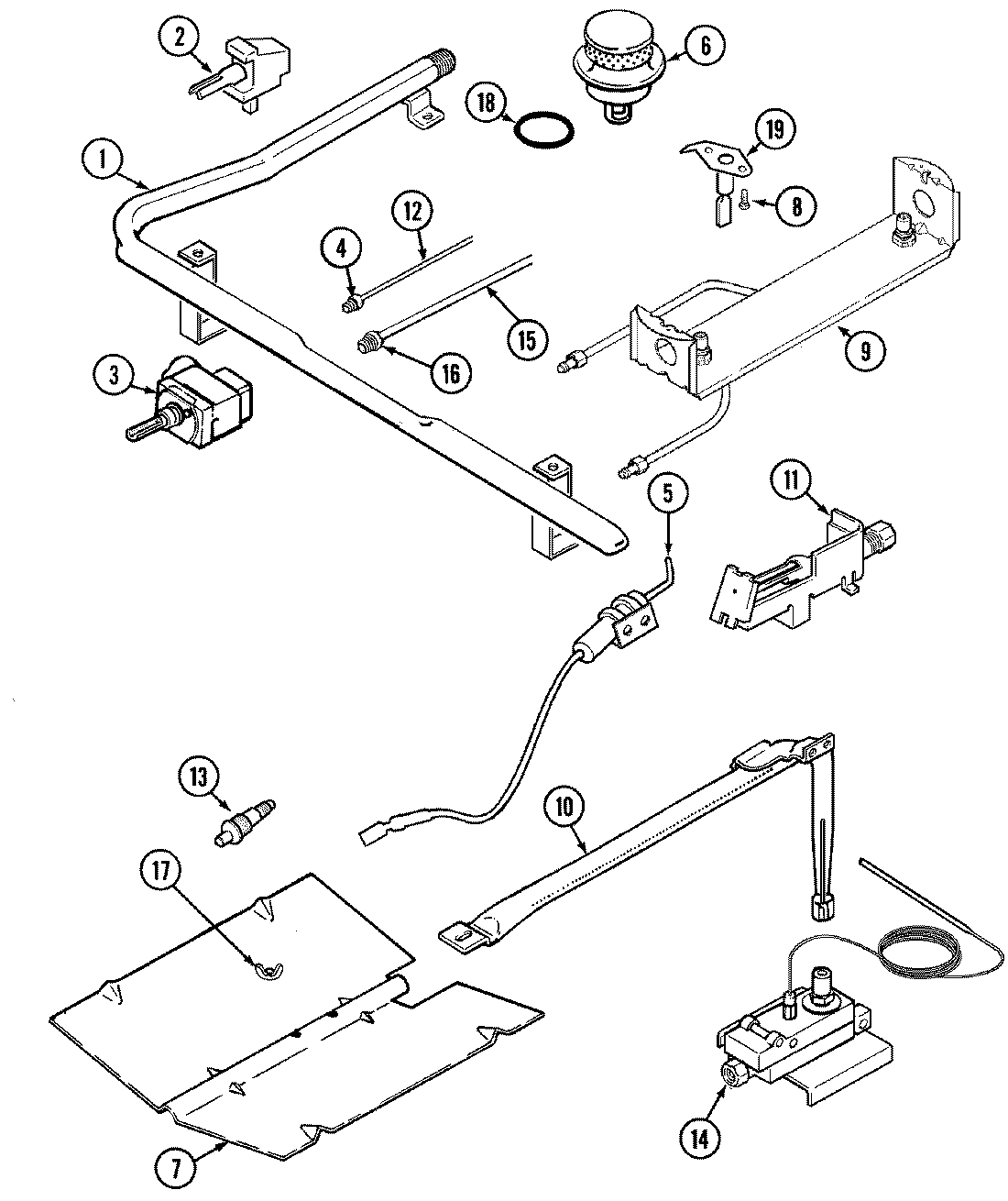

GC3111SXAW 04 – GAS CONTROLS
Products
Position
Product
NI
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1
MAY 74002773
2
MAY 74002532
2
WP8273096 Whirlpool Screw
3
MAY 7515P034-60
3
MAY 7101P010-60
4
MAY 1555222
5
MAY 74001232
6
WP3412D024-09 Whirlpool Oven Burner Head
7
MAY 74002393
8
MAY Y707113
9
MAY 5187D029-60
10
MAY 74002434
11
WP3351614 Whirlpool Screw
11
MAY 7432P070-60
12
MAY 3414F108-44
13
MAY 7432P078-60
14
MAY 74002661
14
SCREW
15
MAY 74002456
16
MAY 1555251
17
NUT, WING
18
MAY 74002745
19
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
←
