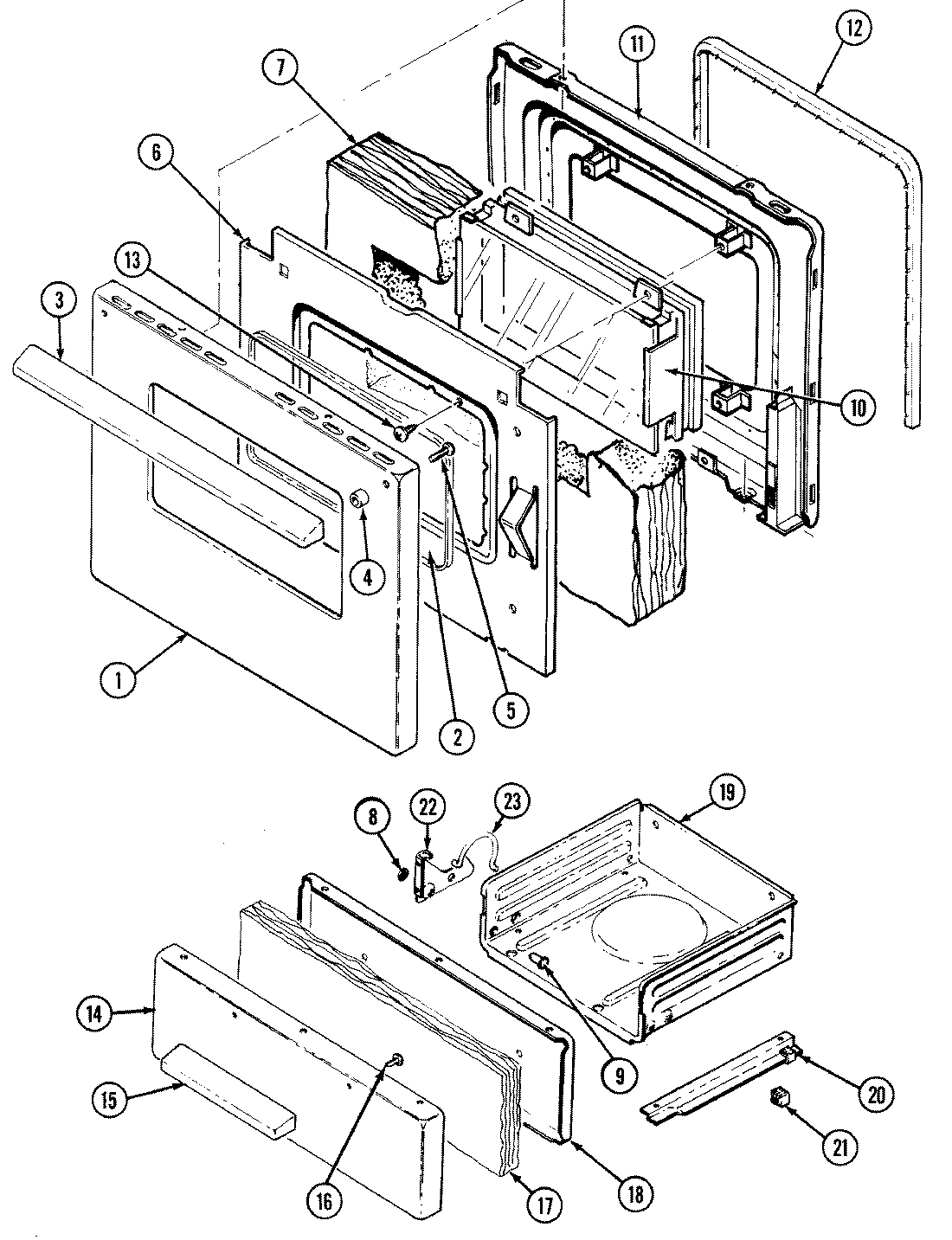

GC3177WUA 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 2401F121-64
2	MAY 7201P017-60
3	MAY 7701P030-60
4	MAY 8010P084-60
5	MAY 7101P080-60
6	MAY 3601F236-47
7	MAY 4804F050-60
8	MAY 7103P022-60
9	MAY 7113P012-60
10	MAY 7907P015-60
10	CLIP, DOOR
11	MAY 2402W212-19
12	WP7212P043-60 Whirlpool Oven Door Seal Gasket
13	MAY 7101P290-60
14	MAY 2403F028-64
15	MAY 7701P012-60
16	74002481 Whirlpool Screw
17	MAY 4804F025-60
18	MAY 2404F035-19
19	MAY 3407F012-19
20	MAY 3404F023-51
20	MAY 3404F022-51
20	MAY 7101P061-60
21	MAY 8016P011-60
21	MAY 8016P013-60
22	MAY 3418F079-51
22	MAY 3418F080-51
23	MAY 7803P064-60
23	MAY 7803P065-60
