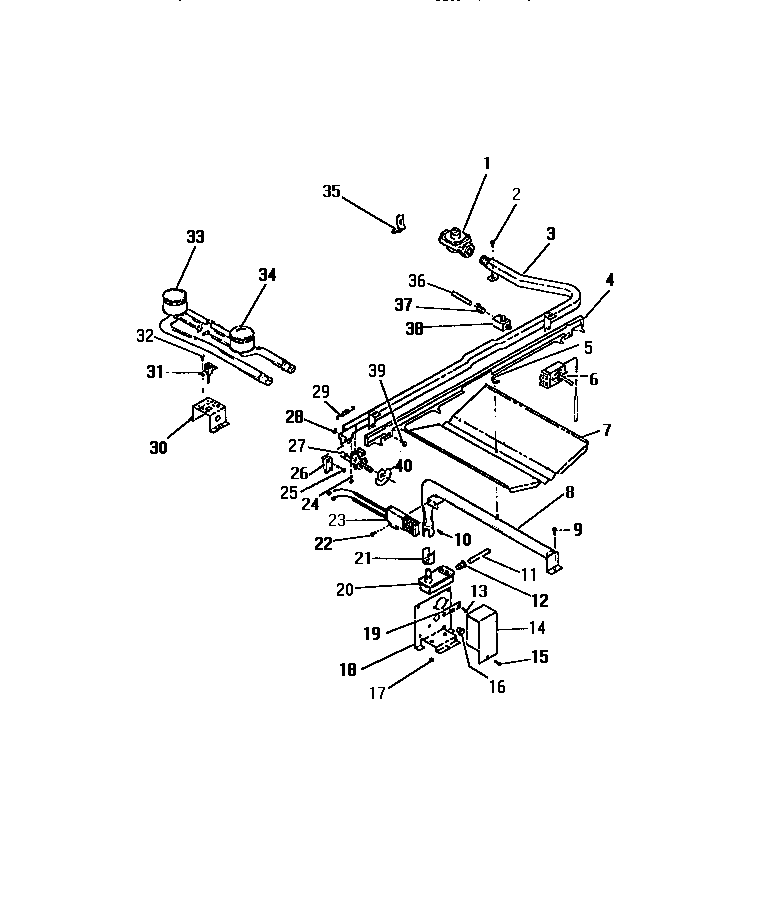

GC34BCW0 26 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	WCI 8007974
3	WCI 8013906
4	WCI 8014021
5	WCI 8007979
6	WCI 8013926
7	WCI 8007980
8	WCI 8009418
14	WCI 8007986
16	BUSHING
17	WCI 8007960
18	WCI 8007987
19	WCI 8007985
20	VALVE, OVEN
21	WCI 8008010
22	WCI 8008011
23	IGNITOR, OVEN
24	SCREW (2)
25	WCI 8008000
26	SWITCH-MICRO
27	WCI 8013940
28	WCI 8007991
29	WCI 8013921
30	WCI 8014002
31	IGNITOR-TOP, R.H.
31A	WCI 8013884
32	WCI 8007905
33	WCI 8013853
34	WCI 8013852
35	CLIP, CAPILLARY TUBE
36	3/8`` TUBE
37	WCI 8008363
38	SHUT OFF VALVE
39	WCI 8012509
40	WCI 8008002
