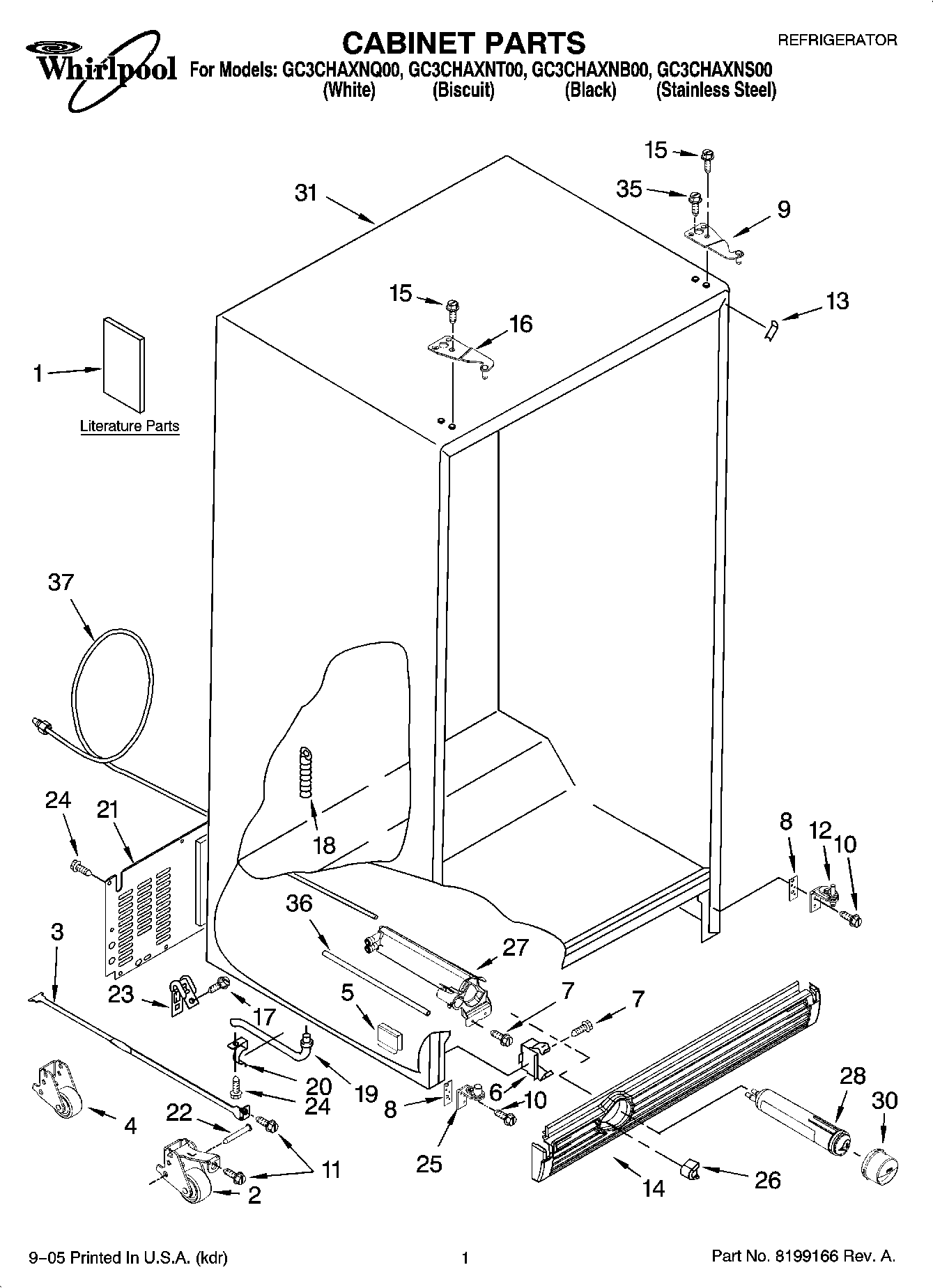

GC3CHAXNQ00 01 – CABINET PARTS

GC3CHAXNQ00 01 – CABINET PARTS

Written by

in

GC3CHAXNQ00 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Installation Instructions
1	Use & Care Guide
2	ASSEMBLY, FRONT ROLLER (LEFT HAND)
2	ASSEMBLY, FRONT ROLLER (RIGHT HAND)
3	Strap, Roller
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008B Whirlpool Refrigerator Butt Hinge
9	2307008AP Whirlpool Refrigerator Hinge
9	2307008T Whirlpool Refrigerator Butt Hinge
10	WP489497 Whirlpool Screw
11	W10151272 Whirlpool Refrigerator Screw
12	Hinge Assembly, Bottom-RC
13	Filler, Wrapper (Biscuit)
13	Filler, Wrapper (Black)
13	2223893W Whirlpool Refrigerator Filler
14	Grille (White)
14	Grille (Biscuit)
14	Grille (Black)
15	3400108 Whirlpool Refrigerator Screw
16	2307007AP Whirlpool Refrigerator Hinge
16	2307007B Whirlpool Refrigerator Butt Hinge
16	2307007T Whirlpool Refrigerator Butt Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Extension Tube
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	PIN, ROLLER
23	549193 Whirlpool Refrigerator Power Clamp
25	Hinge Assembly, Bottom-FC
26	2260503W Whirlpool Refrigerator Button
26	WP2260503B Whirlpool Refrigerator Button
27	WPW10121140 Whirlpool Refrigerator Housing
28	FILTER 3-SINGLE TEAL
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	Cap, Water Filter (Biscuit)
31	Cabinet (Not A Serviceable Part)
35	W10853301 Whirlpool Refrigerator Screw
36	W11496481 Whirlpool Refrigerator Water Tube
37	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
