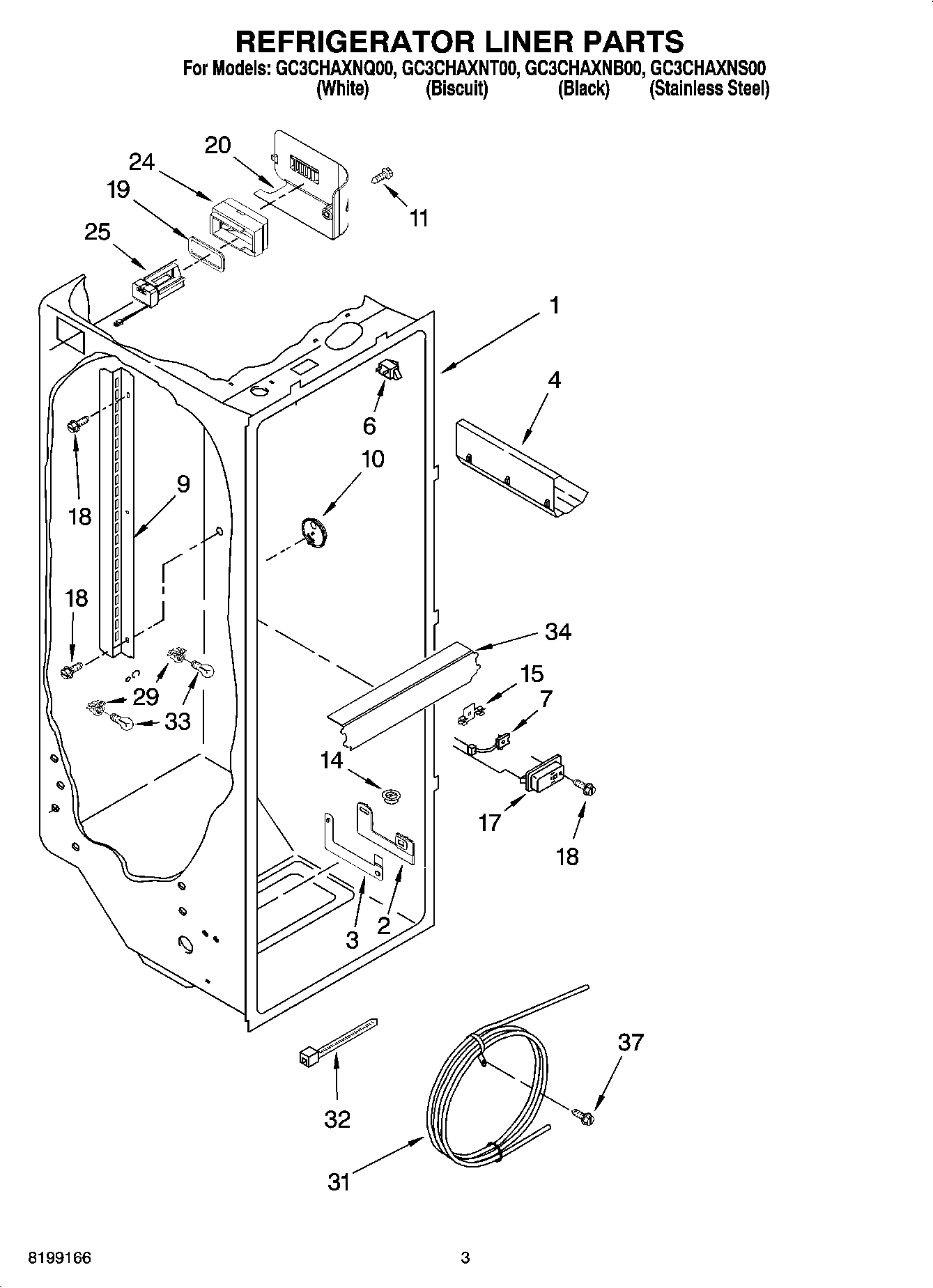

GC3CHAXNQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
4	W10777924 Whirlpool Refrigerator Wine Rack
6	W11384469 Whirlpool Door Switch
7	WP2188820 Whirlpool Refrigerator Thermistor
9	Ladder, Shelf
10	Door Control Asm
14	2171846 Whirlpool Refrigerator Release Valve
15	Clip, Thermistor
17	1116793 Whirlpool Refrigerator Cover
18	WP489478 Whirlpool Refrigerator Screw
19	Gasket, Air Baffle
20	COVER, AIR DIFFUSER
24	ASSEMBLY, AIR DIFFUSER
25	WP2220377 Whirlpool Refrigerator Air Baffle
29	4387478 Whirlpool Refrigerator Light Socket
31	RESERVOIR
32	WPW10339879 Whirlpool Wire Tie
33	RANGE ONLY 40W 120V APPL BULB
34	LENS, LIGHT
37	Screw (2)
