GC3CHAXNQ00 07 – FREEZER DOOR PARTS

GC3CHAXNQ00 07 – FREEZER DOOR PARTS

Written by

in

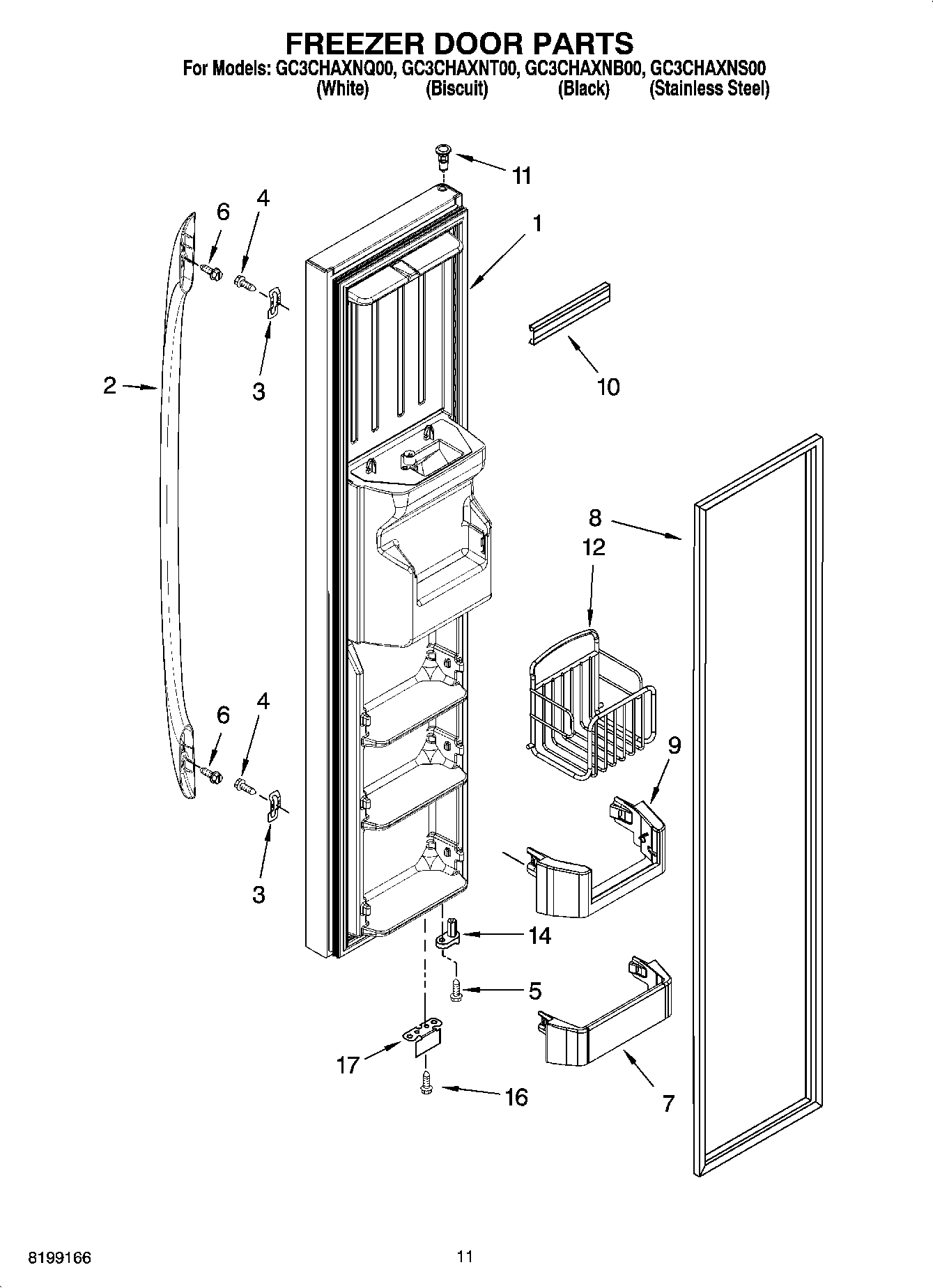

GC3CHAXNQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
2Handle (Biscuit)
2Handle (Includes 20) (White)
2Handle
3WP2255411 Whirlpool Refrigerator Clip
4WP489491 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6SCREW
7WP2171157 Whirlpool Shelf Trim
8GASKET, DOOR (MIST BEIGE)
8GASKET, DOOR (BLACK)
9TRIVET, TILT-OUT
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182181 Whirlpool Refrigerator Thimble
12Basket, Tilt Out
14WP2223752 Whirlpool Refrigerator Door Cam
16WP489483 Whirlpool Screw
172306940B Whirlpool Refrigerator Bracket
172306940 Whirlpool Refrigerator Bracket
