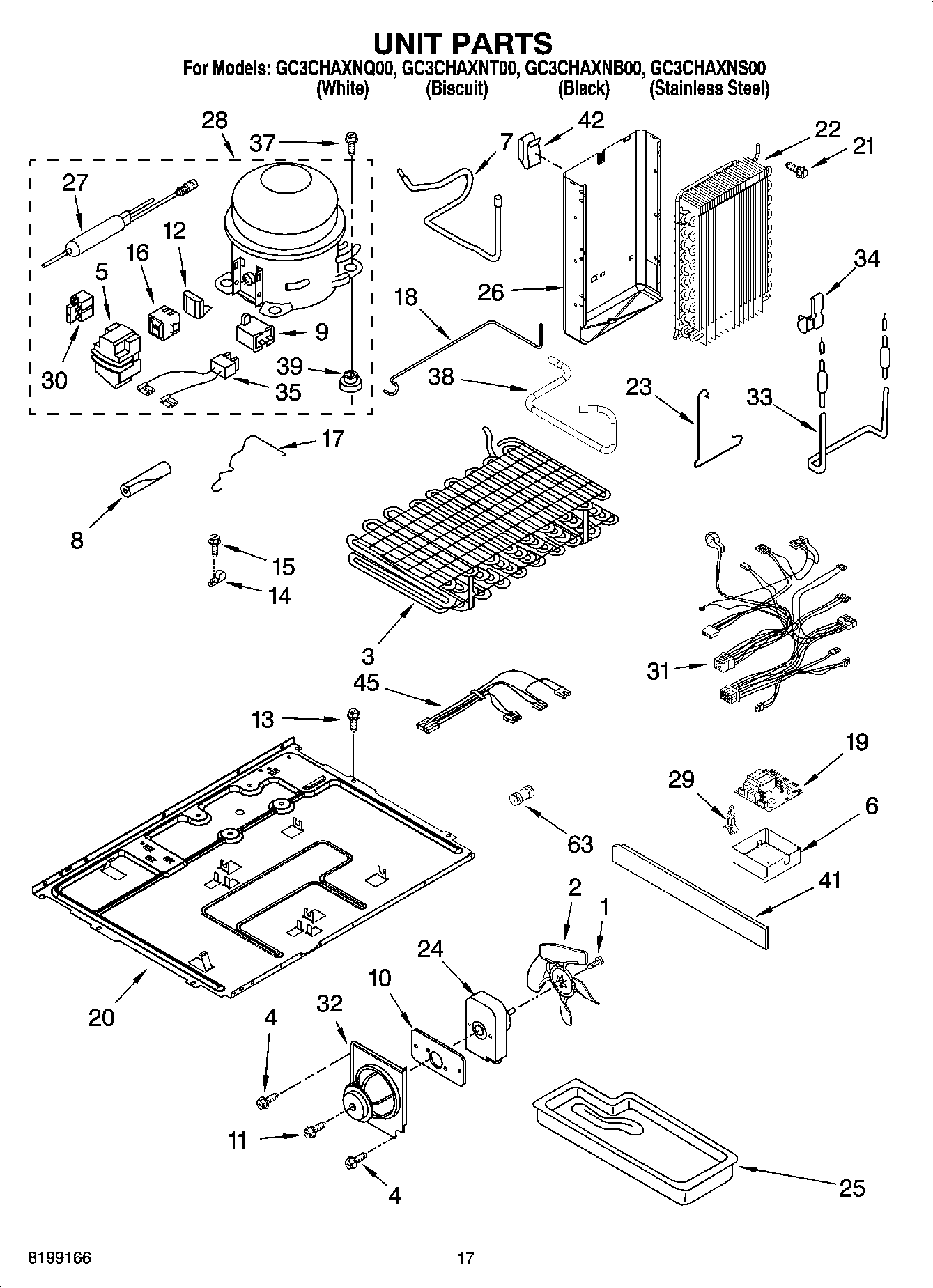

GC3CHAXNQ00 11 – UNIT PARTS

GC3CHAXNQ00 11 – UNIT PARTS

Written by

in

GC3CHAXNQ00 11 – UNIT PARTS

Products

PositionProduct
1WP488234 Whirlpool Air Conditioner Screw
2W11458267 Whirlpool Refrigerator Fan Blade
3W10193018 Whirlpool Refrigerator Condenser
48281197 Whirlpool Refrigerator Screw
5WP2162358 Whirlpool Refrigerator Terminal Cover
6Housing, Control Board
7W10528579 Whirlpool Refrigerator Tube
8SLEEVE
9WPW10662129 Whirlpool Refrigerator Run Capacitor
10Plate
11WP8281196 Whirlpool Screw
12WP2154697 Whirlpool Refrigerator Overload
133400524 Whirlpool Refrigerator Screw
14W11456069 Whirlpool Refrigerator Clamp
15WPW10141625 Whirlpool Refrigerator Screw Assembly
16WP2319792 Whirlpool Refrigerator Start Device
17Clip, Retaining
18Tube, Condenser to Heat Loop
19Electronic Control
20Baseplate
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25Tray, Evaporator
26SHIELD, HEAT
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
292223800 Whirlpool Refrigerator Spacer
30W10920279 Whirlpool Refrigerator Start Relay
31Harness, Main Control
32BRACKET, FAN MOUNTING
33WP2210737 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
35WP2172890 Whirlpool Refrigerator Wire
37SCREW
38Tube, Discharge
39W11661108 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
412223394 Whirlpool Extension
42Clip, Heat Shield
452187737 Whirlpool Refrigerator Wire Harness
63Following Parts Not Illustrated and Optional Parts Not Included
63VALVE, ACCESS (5/8“)
63876764 Whirlpool Refrigerator Primary Valve
63978026 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP4373559 Whirlpool Fitting
63978027 Whirlpool Refrigerator Primary Valve
63VALVE, ACCESS (1/2“)
63WP978025 Whirlpool Refrigerator Valve
63REFRIGERAN
