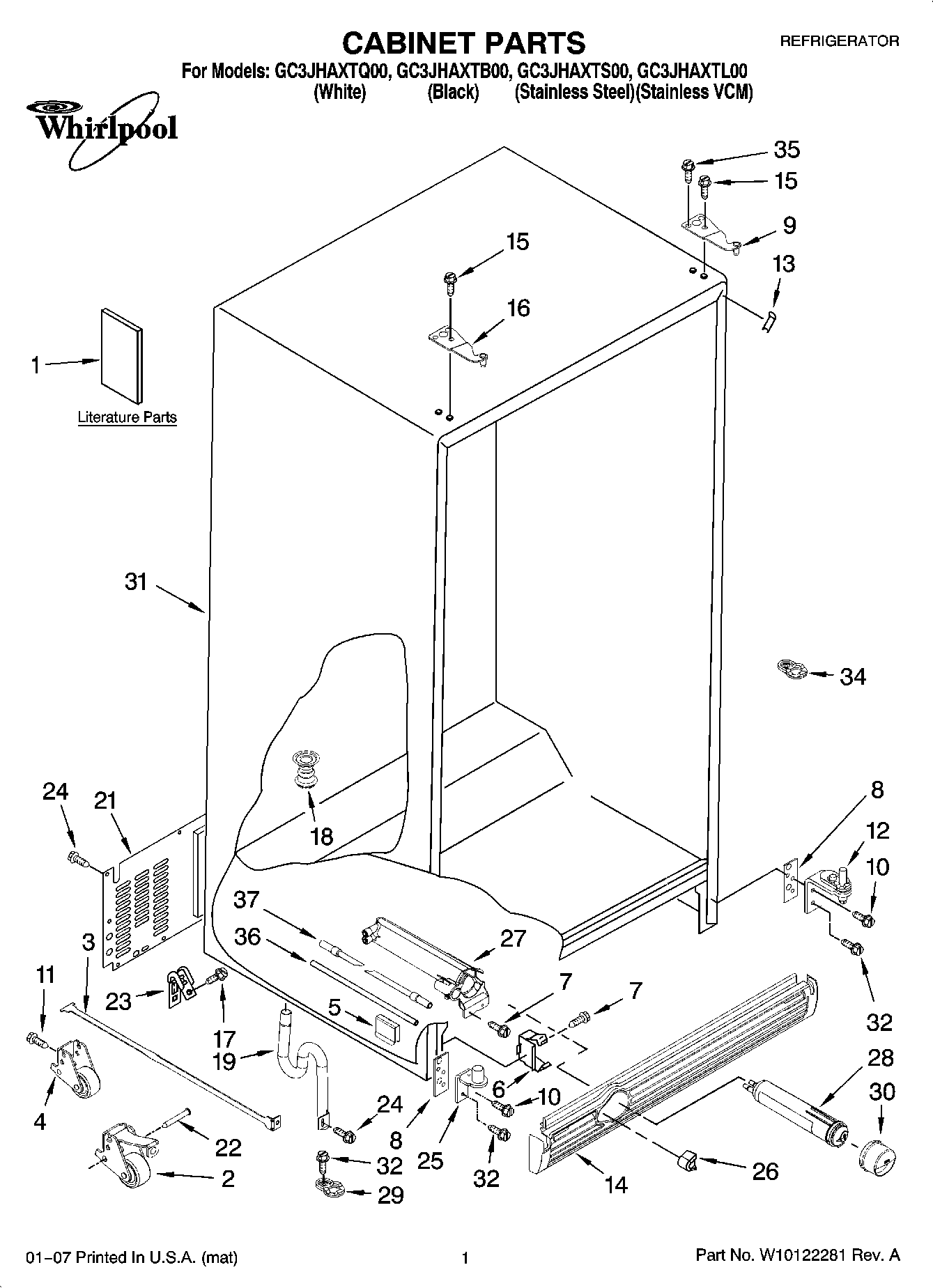

GC3JHAXTL00 01 – CABINET PARTS

GC3JHAXTL00 01 – CABINET PARTS

Written by

in

GC3JHAXTL00 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
1Use & Care Guide
1Energy Guide
2ASSEMBLY, FRONT ROLLER (RIGHT HAND)
2ASSEMBLY, FRONT ROLLER (LEFT HAND)
3Strap, Roller
4WPW10173132 Whirlpool Refrigerator Cabinet Roller
5W11545866 Whirlpool Refrigerator Clip
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
82223545 Whirlpool Refrigerator Shim
92307008B Whirlpool Refrigerator Butt Hinge
92307008AP Whirlpool Refrigerator Hinge
10WP489497 Whirlpool Screw
11W10151272 Whirlpool Refrigerator Screw
12Hinge Assembly, Bottom-RC
13Filler, Wrapper (Black)
132223893W Whirlpool Refrigerator Filler
14Grille (Black)
14Grille (White)
153400108 Whirlpool Refrigerator Screw
162307007B Whirlpool Refrigerator Butt Hinge
162307007AP Whirlpool Refrigerator Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Tube, Extension
21Cover, Unit
22PIN, ROLLER
23549193 Whirlpool Refrigerator Power Clamp
25Hinge Assembly, Bottom-FC
26WP2260503B Whirlpool Refrigerator Button
262260503W Whirlpool Refrigerator Button
27WPW10121140 Whirlpool Refrigerator Housing
28FILTER 3-SINGLE TEAL
29Door Closer, FC
30WP2260518W Whirlpool Refrigerator Filter Cap
30WP2260518B Whirlpool Water Filter Cap
31Cabinet, (Not A Serviceable Part)
32WP489483 Whirlpool Screw
34WPL 2307049
35W10853301 Whirlpool Refrigerator Screw
36WPW10350006 Whirlpool Refrigerator Water Tube
378201597 Whirlpool Inlet Water Fill Tube Kit Filter
