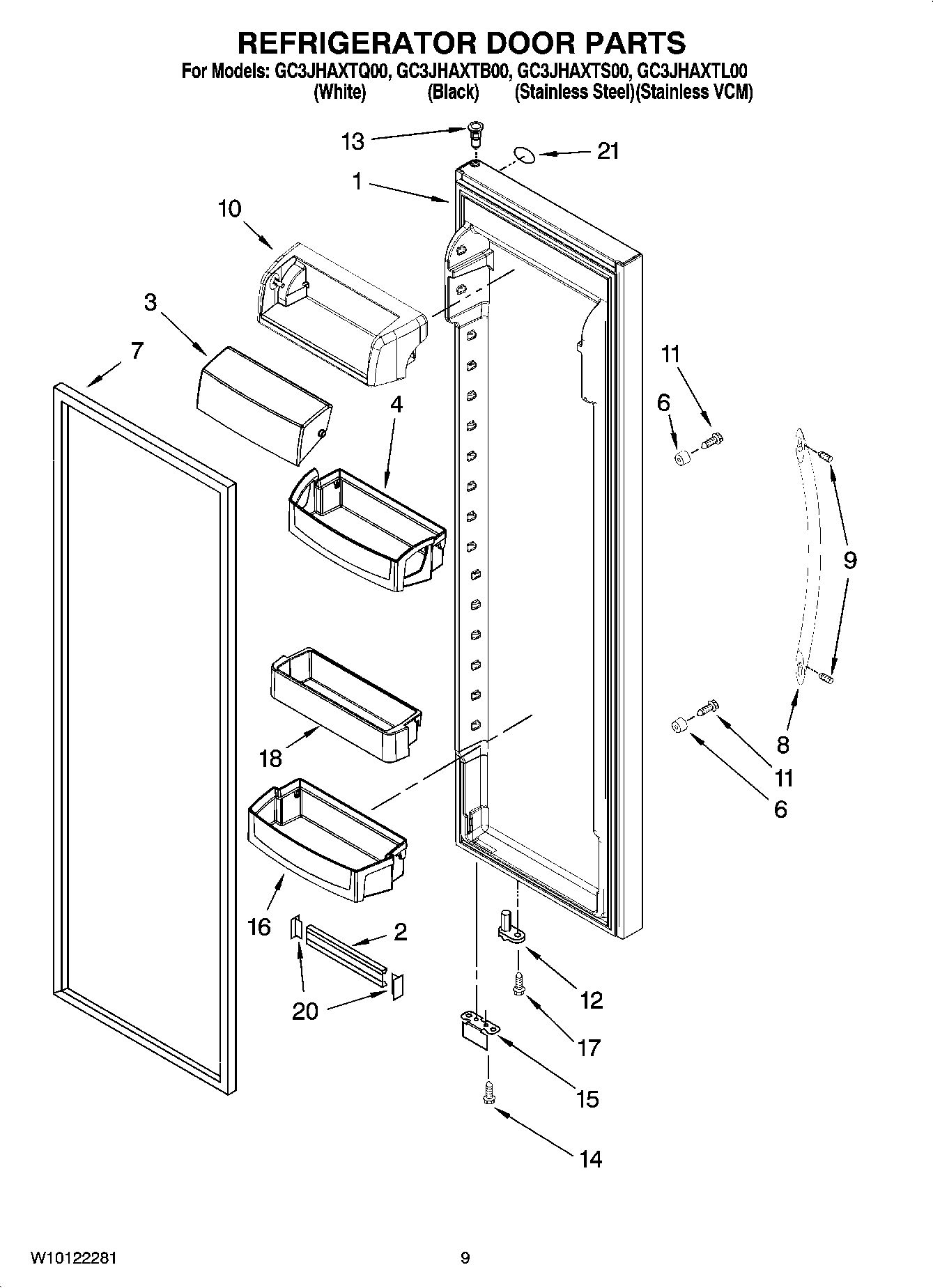

GC3JHAXTL00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Black)
1Refrigerator Door (Includes 7) (White)
1Refrigerator Door (Includes 7) (Stainless VCM)
1Refrigerator Door (Includes 7) (Stainless Steel)
2Trim, Shelf
3Dairy Door
4Door Bin (3)
6WPW10170540 Whirlpool Screw
7GASKET, DOOR (MIST BEIGE)
7GASKET, DOOR (BLACK)
8Handle (Stainless)
8WP2254600B Whirlpool Refrigerator Handle
8WP2254600W Whirlpool Refrigerator Handle
9SCREW
10WP2223879 Whirlpool Refrigerator Compressor Door
11WP488163 Whirlpool Refrigerator Screw
12CLOSER, DOOR
12WP2182179 Whirlpool Cam Closer
13WP2182181 Whirlpool Refrigerator Thimble
14WP489483 Whirlpool Screw
152306940 Whirlpool Refrigerator Bracket
152306940B Whirlpool Refrigerator Bracket
16Door Bin (3)
17WP3400012 Whirlpool Refrigerator Screw
18WP2224173 Whirlpool Refrigerator Cantilever Bin
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21Nameplate
