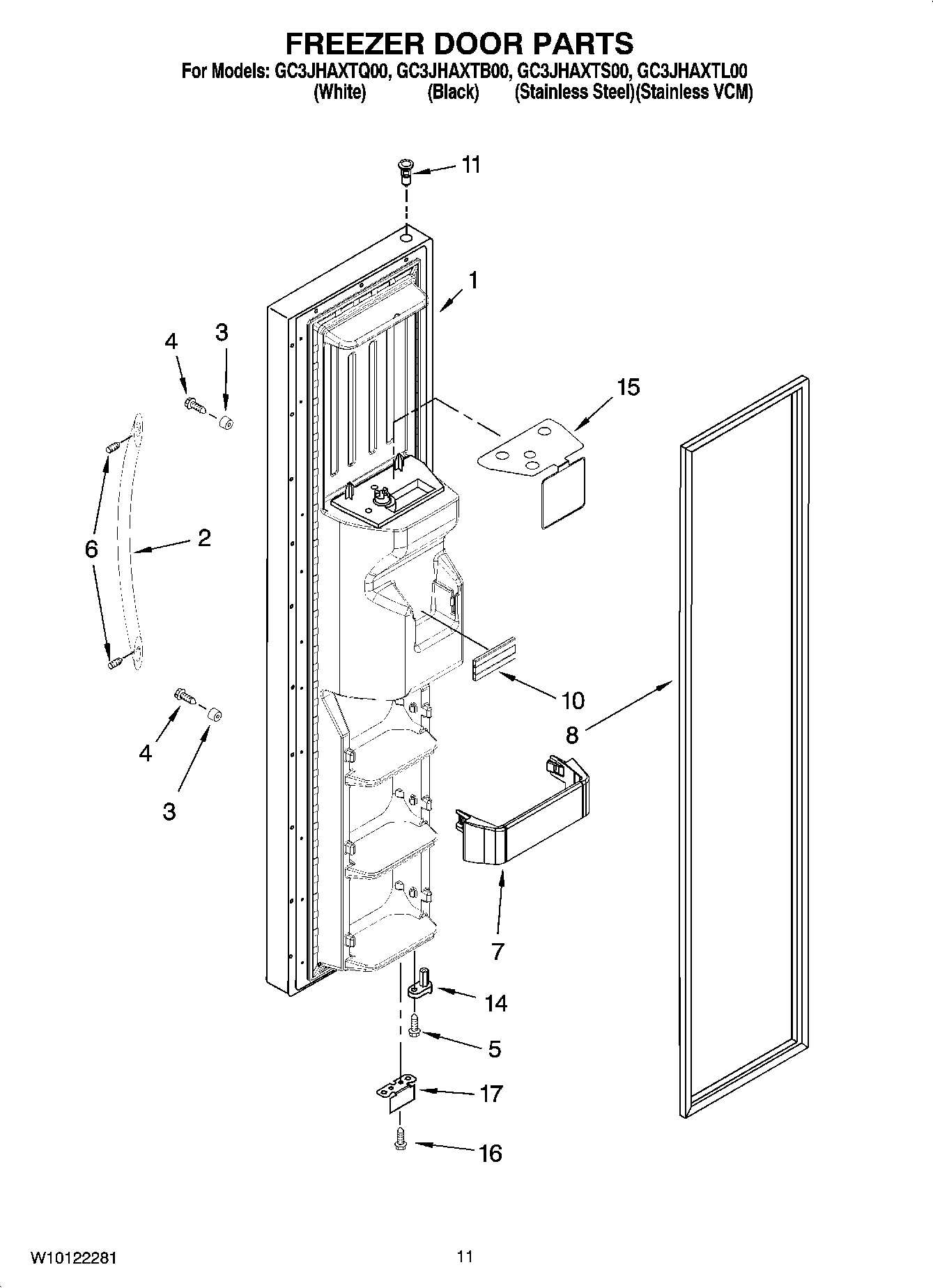

GC3JHAXTL00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless VCM)
2WP2254600W Whirlpool Refrigerator Handle
2WP2254600B Whirlpool Refrigerator Handle
2Handle (Stainless)
3WPW10170540 Whirlpool Screw
4WP488163 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6SCREW
7WP2171157 Whirlpool Shelf Trim
8GASKET, DOOR (BLACK)
8GASKET, DOOR (MIST BEIGE)
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182181 Whirlpool Refrigerator Thimble
14Door Closer, Upper Cam
15Safety Barrier
16WP489483 Whirlpool Screw
172306940B Whirlpool Refrigerator Bracket
172306940 Whirlpool Refrigerator Bracket
