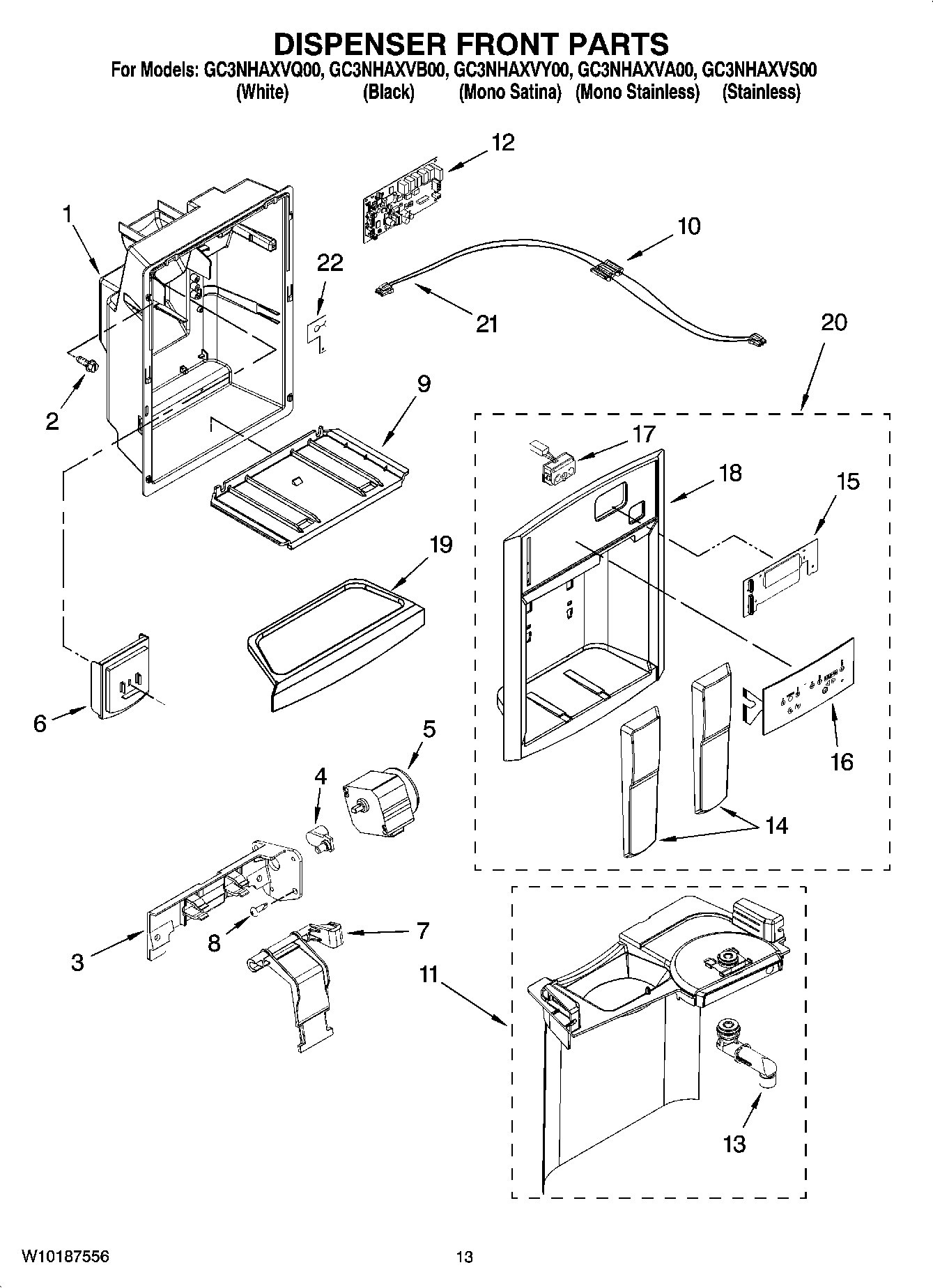

GC3NHAXVA00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP939101 Whirlpool Refrigerator Plate
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (Black)
9	Grille, Slide (White)
9	Grille, Slide (Apollo Gray)
10	Ferrite Bead
11	Separator Assembly (Black)
11	Separator Assembly (White)
11	Separator Assembly (Nickel Alloy)
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	WP2305235 Whirlpool Refrigerator Spigot
14	Pad, Ice & Water (For Monochromatic Stainless Model)
14	Pad, Ice & Water (For Black Model)
14	Pad, Ice & Water (For White Model)
15	Cover Assembly, User Interface
16	Overlay, Front Control (Not Available, Order 20)
17	LED Assembly
18	Front Cover, Housing (Not Available, Order 20)
19	Tray, Housing (Black)
19	Tray, Housing (Nickel One)
19	Tray, Housing (White)
20	Front Cover Assembly (Includes Items 17, 18, 19, 20 & 21) (Black)
20	Front Cover Assembly (Includes Items 14, 15, 16, 17 & 18) (White)
20	Front Cover Assembly (Includes Items 14, 15, 16, 17 & 18) (Nickel One)
21	WPL 2187814
22	2305447 Whirlpool Refrigerator Clip
