GC3NHAXVA00 11 – UNIT PARTS

GC3NHAXVA00 11 – UNIT PARTS

Written by

in

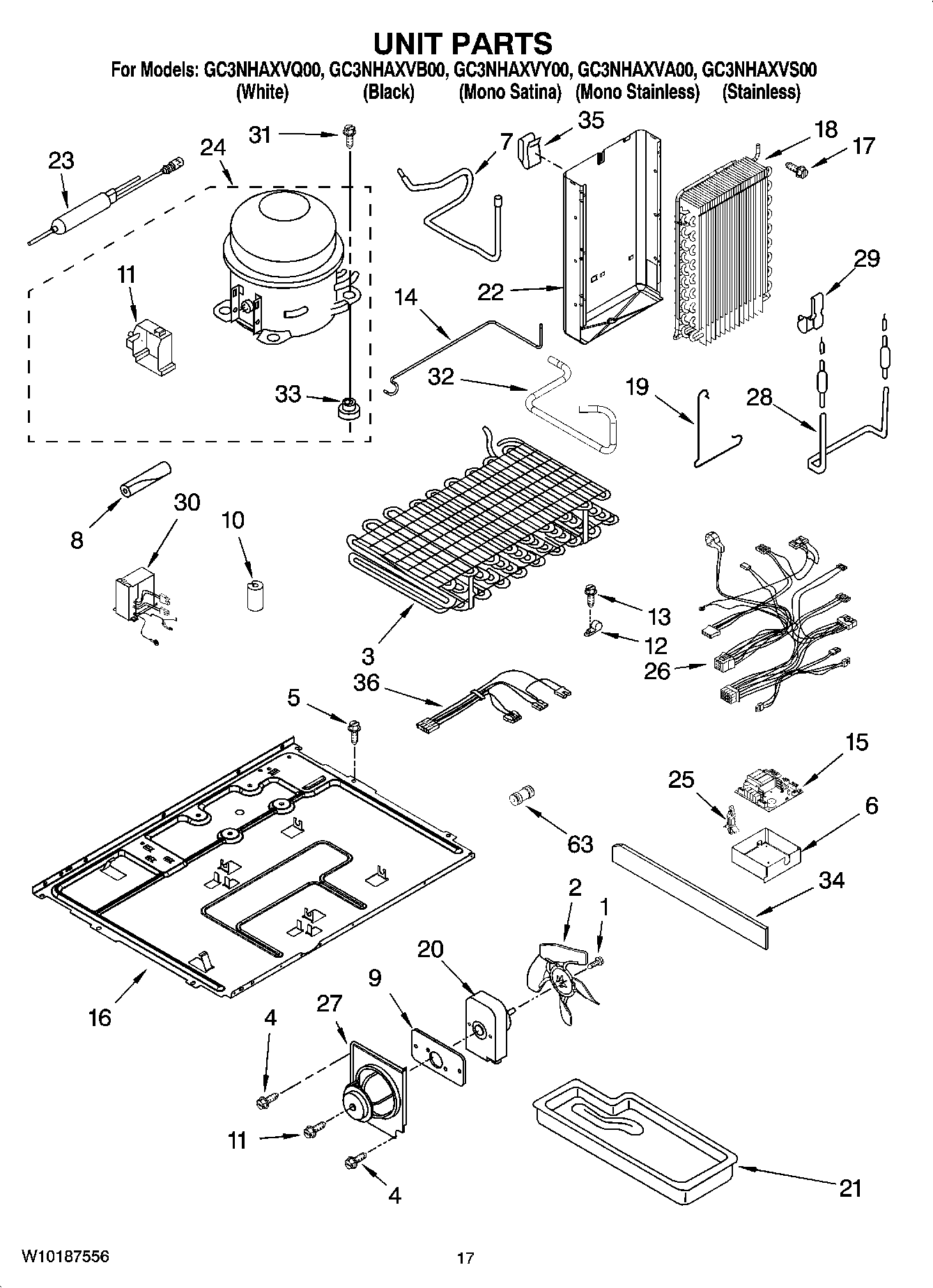

GC3NHAXVA00 11 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 6.00 oz. (R-134A)
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	WP488234 Whirlpool Air Conditioner Screw
2	W11458267 Whirlpool Refrigerator Fan Blade
3	ASSEMBLY, CONDENSER
4	WPW10171469 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	Plate
10	W10852725 Whirlpool Refrigerator Grommet
11	2215676 Whirlpool Refrigerator Terminal Cover
12	WPL 2305373
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Tube, Condenser to Heat Loop
15	W10219463 Whirlpool Control Board + Core
16	Baseplate
17	WP489478 Whirlpool Refrigerator Screw
18	WP2188823 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	Tray, Evaporator
22	SHIELD, HEAT
23	WPW10143759 Whirlpool Dryer Filter
24	8201675 Whirlpool Refrigerator Compressor
25	2223800 Whirlpool Refrigerator Spacer
26	WP2310122 Whirlpool Refrigerator Wire Harness
27	BRACKET, FAN MOUNTING
28	Heater, Defrost
29	W11623163 Whirlpool Refrigerator Clip
30	W10629033 Whirlpool Refrigerator Inverter Control Box
31	Screw
32	Tube, Discharge
33	WP4387558 Whirlpool Refrigerator Compressor Grommet
33	4388295 Whirlpool Refrigerator Mounting Kit
34	2223394 Whirlpool Extension
35	Clip, Heat Shield
36	2310121 Whirlpool Refrigerator Wire Harness
63	WP2300868 Whirlpool Refrigerator Fitting
