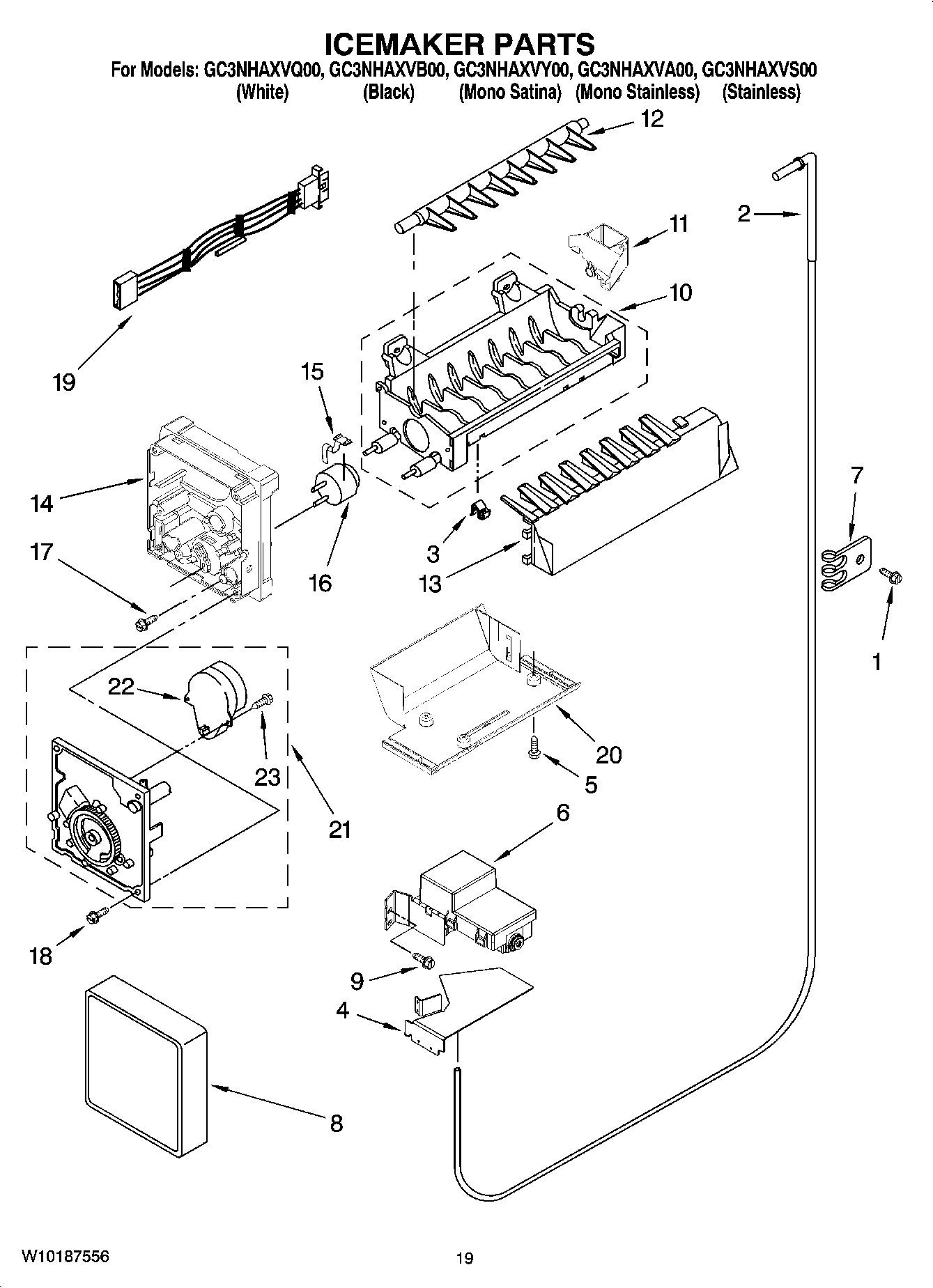

GC3NHAXVA00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GC3NHAXVA00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GC3NHAXVA00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
350942 Whirlpool Spray Paint
PAINT, BULK (1 QT. GRAPHITE)
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Torx Key
WPL ARI59491A2
WPL ARI59490A6
WPL ARI59492A8
212643 Whirlpool Refrigerator Permagum Sealer
72032 Whirlpool Touch Up Paint Black
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4Shield, Water Valve
5WP489478 Whirlpool Refrigerator Screw
6WPW10159840 Whirlpool Refrigerator Valve
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11WPW10272168 Whirlpool Refrigerator Water Fill Cup
12WP627843 Whirlpool Refrigerator Ejector Arm
13W10297244 Whirlpool Refrigerator Arm Strip
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19WP2187467 Whirlpool Refrigerator Wire Harness
20BRACKET, ICEMAKER MOUNTING
228201515 Whirlpool Refrigerator Motor and Gear Module Kit
23489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
