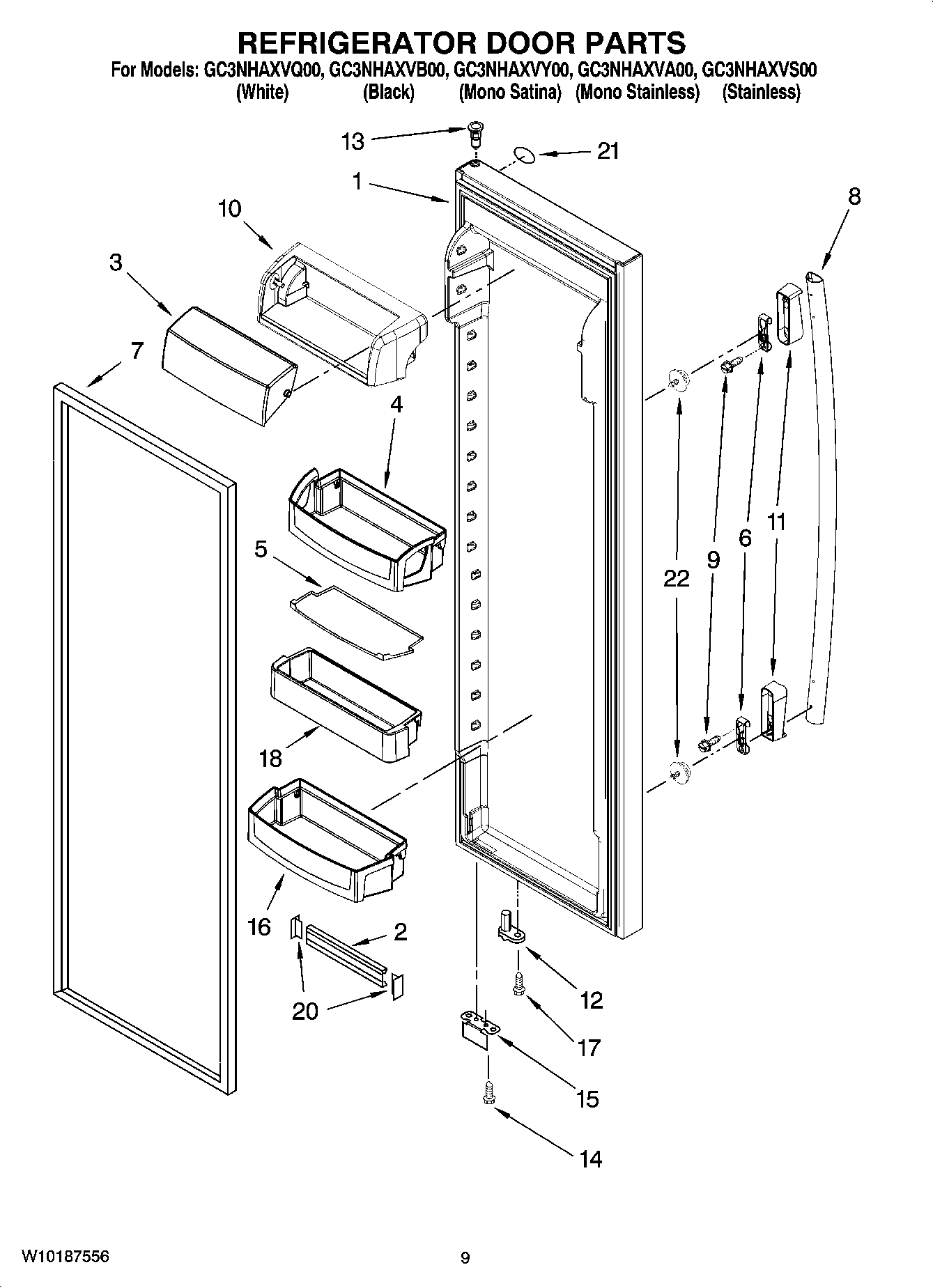

GC3NHAXVB00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1	REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC SATINA)
1	REFRIGERATOR DOOR (INCLUDES No.7) (STAINLESS)
2	Trim, Shelf
3	Dairy Door
4	Door Bin (2)
5	Mat, Bin (2)
6	WP2255411 Whirlpool Refrigerator Clip
7	GASKET, DOOR (BLACK)
7	GASKET, DOOR (MIST BEIGE)
7	Door Gasket, Magnetic (Apollo Grey)
8	W10273556 Whirlpool Refrigerator Handle
8	W10210943A Whirlpool Refrigerator Handle
8	W10210942A Whirlpool Refrigerator Handle
9	WP8533988 Whirlpool Screw Fastener
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	Handle, Endcap (Stainless, All)
11	Handle, Endcap (Black)
11	W10127813 Whirlpool Refrigerator Handle Endcap
12	WP2182179 Whirlpool Cam Closer
13	WP2182181 Whirlpool Refrigerator Thimble
14	WP489483 Whirlpool Screw
15	2306940 Whirlpool Refrigerator Bracket
15	2306940B Whirlpool Refrigerator Bracket
16	Door Bin (3)
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2224173 Whirlpool Refrigerator Cantilever Bin
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Nameplate
22	WPW10288153 Whirlpool Refrigerator Screw
