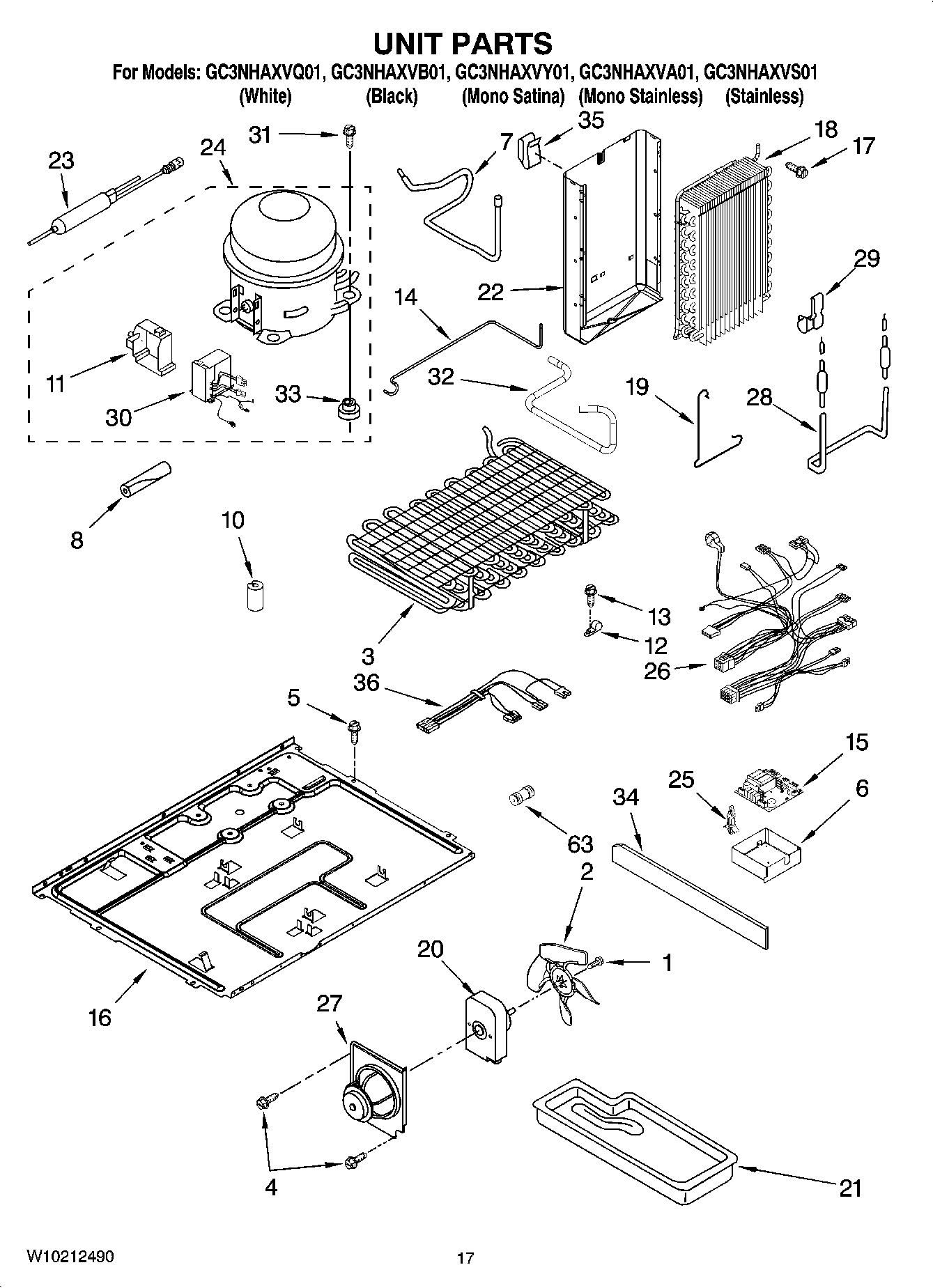

GC3NHAXVS01 11 – UNIT PARTS

GC3NHAXVS01 11 – UNIT PARTS

Written by

in

GC3NHAXVS01 11 – UNIT PARTS

Products

PositionProduct
978030 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
REFRIGERANT CHARGE 6.00 oz. (R-134A)
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
Following Parts Not Illustrated and Optional Parts Not Included
1WP488234 Whirlpool Air Conditioner Screw
2WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3ASSEMBLY, CONDENSER
4WPW10171469 Whirlpool Refrigerator Screw
53400524 Whirlpool Refrigerator Screw
6Housing, Control Board
7W10528579 Whirlpool Refrigerator Tube
8SLEEVE
10W10852725 Whirlpool Refrigerator Grommet
112215676 Whirlpool Refrigerator Terminal Cover
12WPL 2305373
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Tube, Condenser to Heat Loop
15W10219463 Whirlpool Control Board + Core
16Baseplate
17WP489478 Whirlpool Refrigerator Screw
18WP2188823 Whirlpool Refrigerator Evaporator
19Clamp
20WP2188874 Whirlpool Refrigerator Condenser Motor
21Tray, Evaporator
22SHIELD, HEAT
23WPW10143759 Whirlpool Dryer Filter
24W10276644 Whirlpool Refrigerator Compressor
252223800 Whirlpool Refrigerator Spacer
26WP2310122 Whirlpool Refrigerator Wire Harness
27BRACKET, FAN MOUNTING
28Heater, Defrost
29W11623163 Whirlpool Refrigerator Clip
30WPW10154805 Whirlpool Refrigerator Inverter Box
31Screw
32Tube, Discharge
33876811 Whirlpool Grommet
342223394 Whirlpool Extension
35Clip, Heat Shield
362310121 Whirlpool Refrigerator Wire Harness
63WP2300868 Whirlpool Refrigerator Fitting
