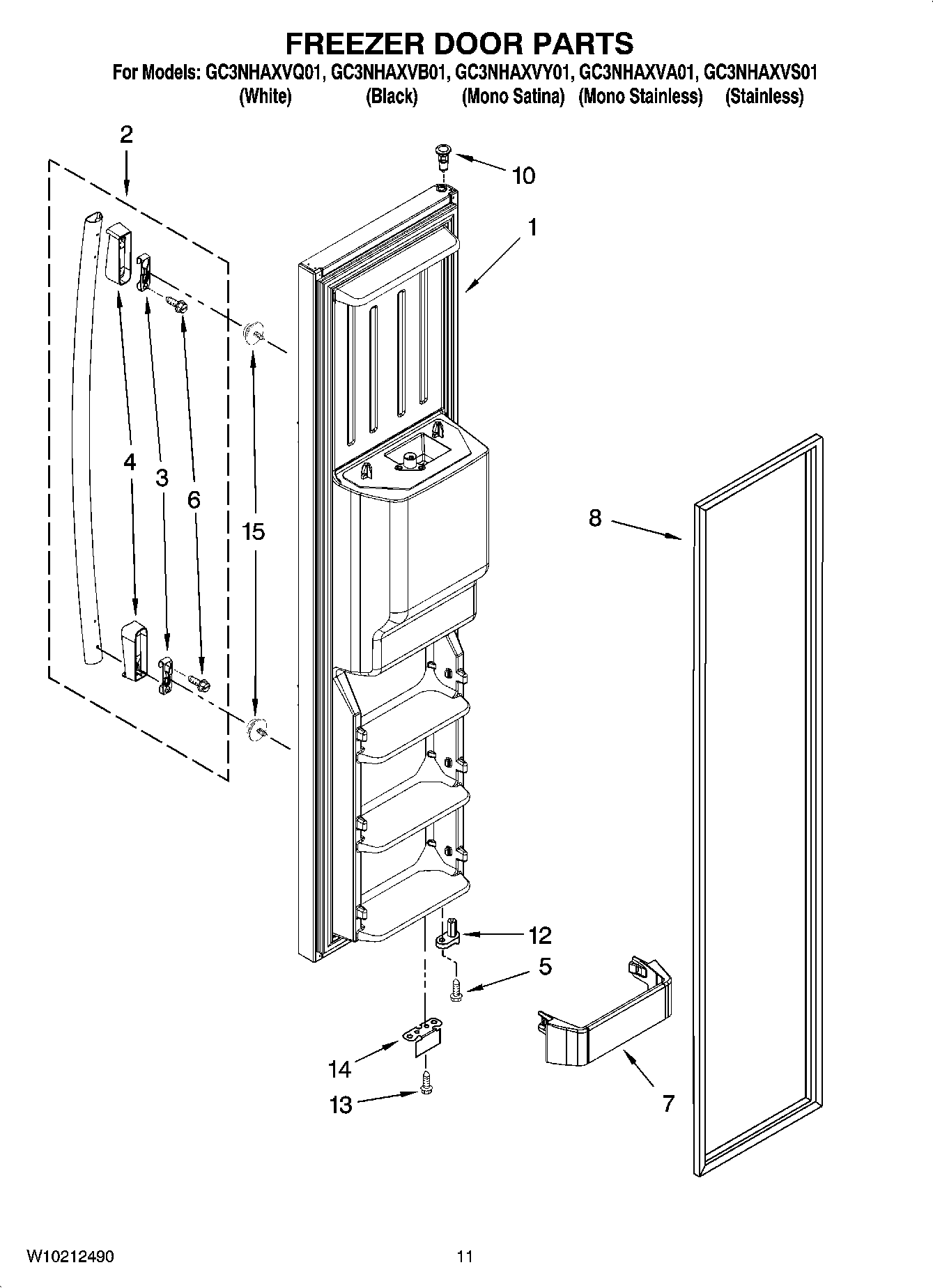

GC3NHAXVY01 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	2310224 Whirlpool Dispense Harness
	Tube, Door
1	Freezer Door (Includes 8) (White)
1	Freezer Door (Includes 8) (Black)
1	Freezer Door (Includes 8) (Mono Satina)
1	Freezer Door (Includes 8) (Monochromatic Stainless)
1	Freezer Door (Includes 8) (Stainless Steel)
2	W10273556 Whirlpool Refrigerator Handle
2	W10210943A Whirlpool Refrigerator Handle
2	W10210942A Whirlpool Refrigerator Handle
3	WP2255411 Whirlpool Refrigerator Clip
4	Handle, Endcap (Stainless, All)
4	W10127813 Whirlpool Refrigerator Handle Endcap
4	Handle, Endcap (Black)
5	WP3400012 Whirlpool Refrigerator Screw
6	WP8533988 Whirlpool Screw Fastener
7	WP2171157 Whirlpool Shelf Trim
8	GASKET, DOOR (BLACK)
8	Door Gasket, Magnetic (Apollo Grey)
8	GASKET, DOOR (MIST BEIGE)
10	WP2182181 Whirlpool Refrigerator Thimble
12	Door Closer, Upper Cam
13	WP489483 Whirlpool Screw
14	2306940 Whirlpool Refrigerator Bracket
14	2306940B Whirlpool Refrigerator Bracket
15	WPW10288153 Whirlpool Refrigerator Screw
