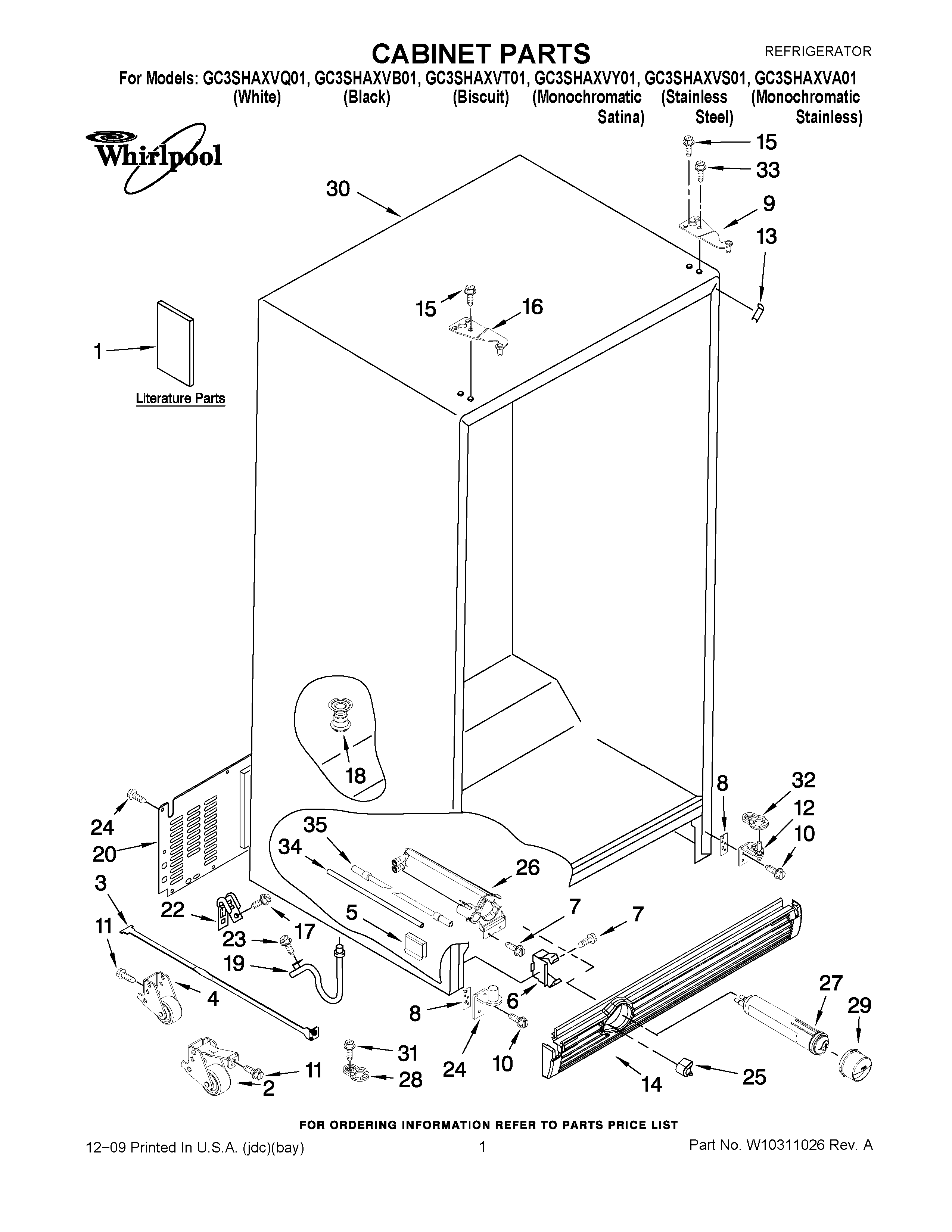

GC3SHAXVB01 01 – CABINET PARTS

GC3SHAXVB01 01 – CABINET PARTS

Written by

in

GC3SHAXVB01 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1ENERGY GUIDE
1Modular Icemaker Service Sheet
1SERVICE AND WIRING SHEET ENERGY GUIDE
2FRONT ROLLER ASM (LEFT SIDE)
2FRONT ROLLER ASM (RIGHT SIDE)
3STRAP, ROLLER
4WPW10173132 Whirlpool Refrigerator Cabinet Roller
5W11545866 Whirlpool Refrigerator Clip
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
82223545 Whirlpool Refrigerator Shim
92307008AP Whirlpool Refrigerator Hinge
92307008B Whirlpool Refrigerator Butt Hinge
92307008T Whirlpool Refrigerator Butt Hinge
10WP489497 Whirlpool Screw
11W10151272 Whirlpool Refrigerator Screw
12Hinge Assembly, Bottom-RC
132223893AP Whirlpool Refrigerator Filler
132223893W Whirlpool Refrigerator Filler
13Filler, Wrapper (Biscuit)
13Filler, Wrapper (Black)
14Grille (Midnight Grey)
14Grille (Biscuit)
14Grille (White)
14Grille (Black)
153400108 Whirlpool Refrigerator Screw
162307007T Whirlpool Refrigerator Butt Hinge
162307007AP Whirlpool Refrigerator Hinge
162307007B Whirlpool Refrigerator Butt Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Tube, Extension
20Cover, Unit
22549193 Whirlpool Refrigerator Power Clamp
24Hinge Assembly, Bottom-FC
252260503W Whirlpool Refrigerator Button
252260503MG Whirlpool Refrigerator Button
25WP2260503B Whirlpool Refrigerator Button
26WPW10121140 Whirlpool Refrigerator Housing
27FILTER 3-SINGLE TEAL
28Door Closer, FC
29WP2260518B Whirlpool Water Filter Cap
29WP2260518W Whirlpool Refrigerator Filter Cap
29Cap, Water Filter (Biscuit)
29WP2260518MG Whirlpool Water Filter Cap
30CABINET (NOT A SERVICEABLE PART)
31WP489483 Whirlpool Screw
32WPL 2307049
33W10853301 Whirlpool Refrigerator Screw
34W11496481 Whirlpool Refrigerator Water Tube
35TUBE, FILTER INLET
