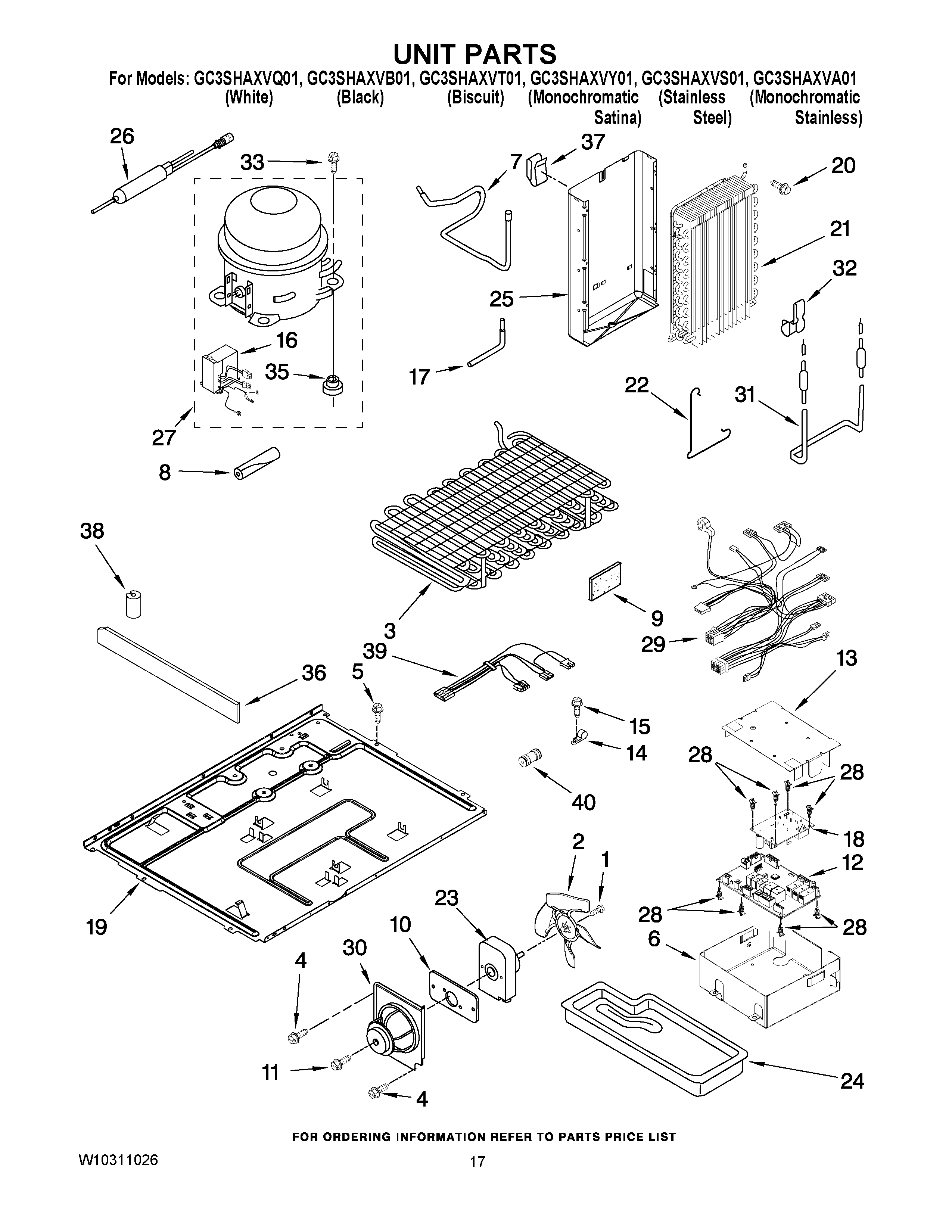

GC3SHAXVB01 11 – UNIT PARTSadmin2025-04-26T11:41:44+00:00GC3SHAXVB01 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | WP978025 Whirlpool Refrigerator Valve |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | 978030 Whirlpool Refrigerator Valve |
| NI | 978027 Whirlpool Refrigerator Primary Valve |
| NI | 978026 Whirlpool Refrigerator Primary Valve |
| NI | 876764 Whirlpool Refrigerator Primary Valve |
| NI | VALVE, ACCESS (5/8``) |
| NI | VALVE, ACCESS (1/2``) |
| 1 | WP488234 Whirlpool Air Conditioner Screw |
| 2 | WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40% |
| 3 | W10193018 Whirlpool Refrigerator Condenser |
| 4 | WPW10171469 Whirlpool Refrigerator Screw |
| 5 | 3400524 Whirlpool Refrigerator Screw |
| 6 | HOUSING, CONTROL BOARD |
| 7 | W10528579 Whirlpool Refrigerator Tube |
| 8 | SLEEVE |
| 9 | W11553819 Whirlpool Refrigerator Insulation |
| 10 | Plate, Mounting |
| 11 | WP489464 Whirlpool Refrigerator Screw |
| 12 | WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core |
| 13 | COVER, CTRL BOARD |
| 14 | WP1115374 Whirlpool Refrigerator Clip |
| 15 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 16 | W10893917 Whirlpool Refrigerator Inverter Box |
| 17 | W10858105 Whirlpool Refrigerator Tube |
| 18 | WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core |
| 19 | Baseplate |
| 20 | WP489478 Whirlpool Refrigerator Screw |
| 21 | WP2188823 Whirlpool Refrigerator Evaporator |
| 22 | Clamp |
| 23 | WP2188874 Whirlpool Refrigerator Condenser Motor |
| 24 | Tray, Evaporator |
| 25 | SHIELD, HEAT |
| 26 | WPW10143759 Whirlpool Dryer Filter |
| 27 | 8201675 Whirlpool Refrigerator Compressor |
| 28 | 2223800 Whirlpool Refrigerator Spacer |
| 29 | Harness, Main Control |
| 30 | BRACKET, FAN MOUNTING |
| 31 | Heater, Defrost |
| 32 | W11623163 Whirlpool Refrigerator Clip |
| 35 | 876811 Whirlpool Grommet |
| 35 | WP4387558 Whirlpool Refrigerator Compressor Grommet |
| 36 | 2223394 Whirlpool Extension |
| 37 | Clip, Heat Shield |
| 38 | W10852725 Whirlpool Refrigerator Grommet |
| 39 | 2187737 Whirlpool Refrigerator Wire Harness |
| 40 | Fitting, Water Tube |
