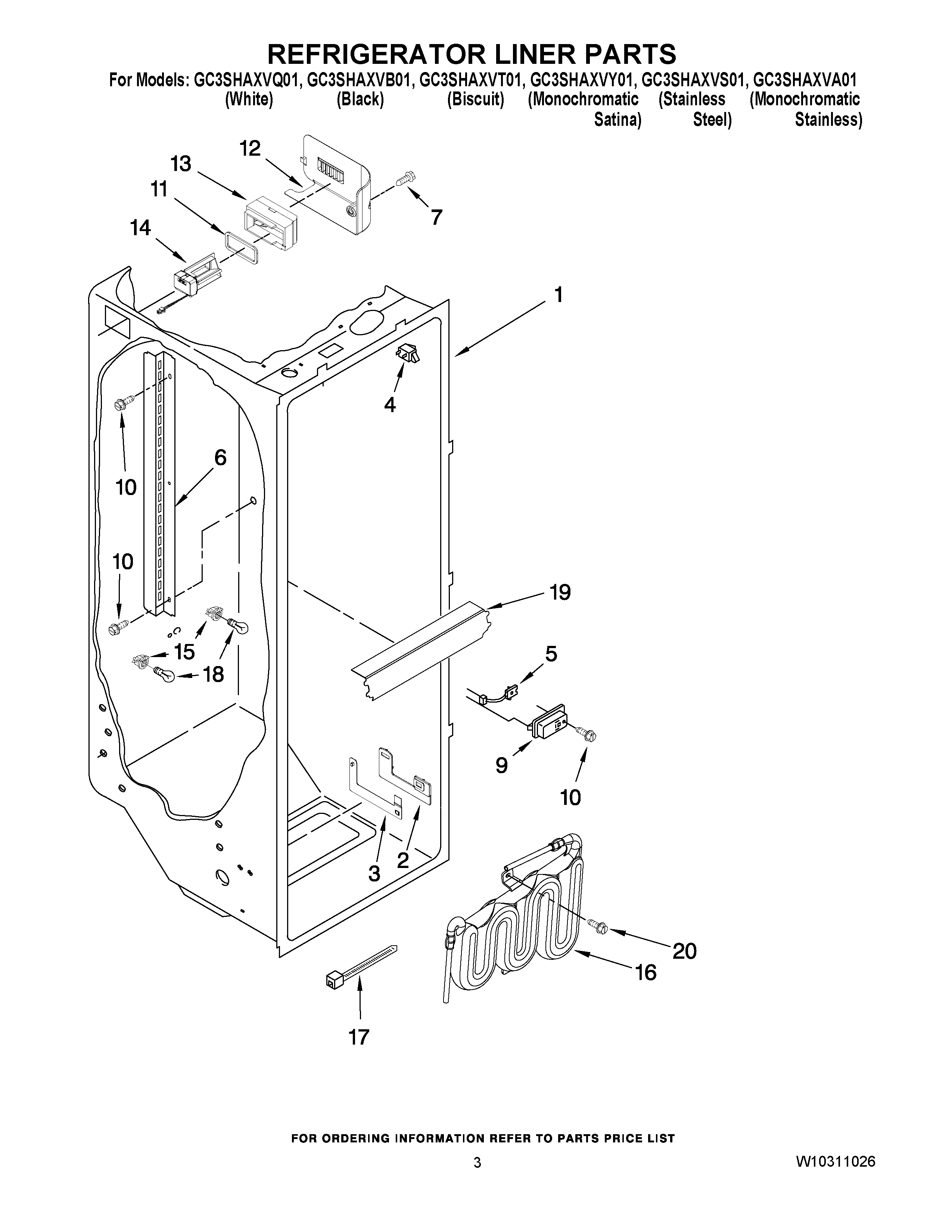

GC3SHAXVQ01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22223524 Whirlpool Escutcheon
32223339 Whirlpool Slide
4W11384469 Whirlpool Door Switch
5WP2188820 Whirlpool Refrigerator Thermistor
6Shelf Ladder
9WP2317844 Whirlpool Refrigerator Cover
10WP489478 Whirlpool Refrigerator Screw
11Gasket, Air Baffle
12COVER, AIR DIFFUSER
13ASSEMBLY, AIR DIFFUSER
14WP2220377 Whirlpool Refrigerator Air Baffle
154387478 Whirlpool Refrigerator Light Socket
16RESERVOIR
17WPW10339879 Whirlpool Wire Tie
18RANGE ONLY 40W 120V APPL BULB
19LENS, LIGHT
20Screw, 8-18 x 5/8
