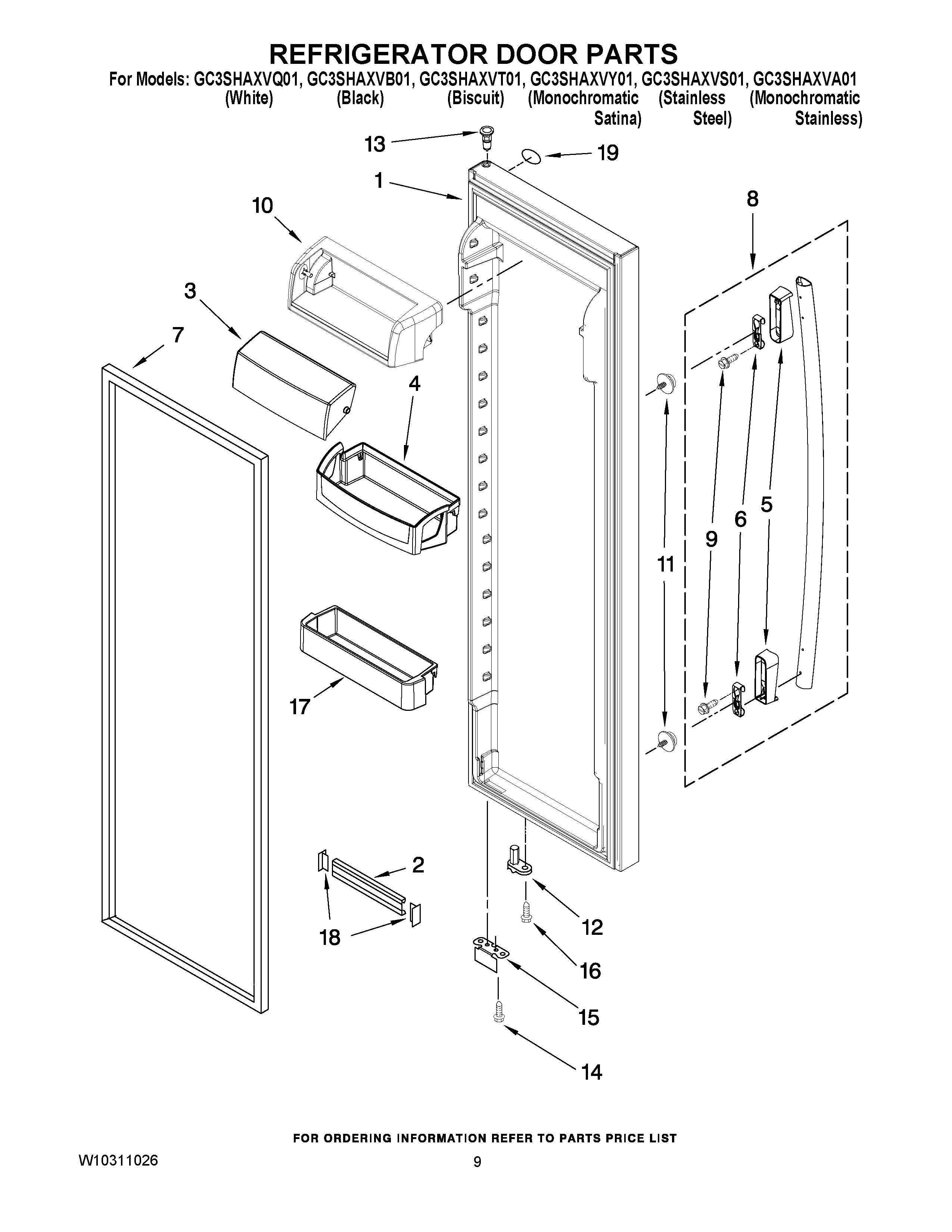

GC3SHAXVQ01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES No.7) (BISCUIT)
1	REFRIGERATOR DOOR (INCLUDES No.7) (STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC SATINA)
1	REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
2	Trim, Door Shelf
3	Dairy Door
4	Door Bin (3)
5	W10127813 Whirlpool Refrigerator Handle Endcap
5	Handle, Endcap (Black)
5	Handle, Endcap (Biscuit)
5	Handle, Endcap (Stainless, All)
6	WP2255411 Whirlpool Refrigerator Clip
7	GASKET, DOOR (MIST BEIGE)
7	GASKET, DOOR (BLACK)
8	WPW10257120 Whirlpool Refrigerator Handle
8	W10210944A Whirlpool Refrigerator Handle M
8	W10210943A Whirlpool Refrigerator Handle
8	W10210942A Whirlpool Refrigerator Handle
9	W10267047 Whirlpool Screw
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	WPW10288153 Whirlpool Refrigerator Screw
12	CLOSER, DOOR
13	WP2182181 Whirlpool Refrigerator Thimble
14	WP489483 Whirlpool Screw
15	2306940B Whirlpool Refrigerator Bracket
15	2306940 Whirlpool Refrigerator Bracket
16	WP3400012 Whirlpool Refrigerator Screw
17	WP2224173 Whirlpool Refrigerator Cantilever Bin
18	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19	Nameplate
