GC3SHAXVQ01 07 – FREEZER DOOR PARTS
Written by
in

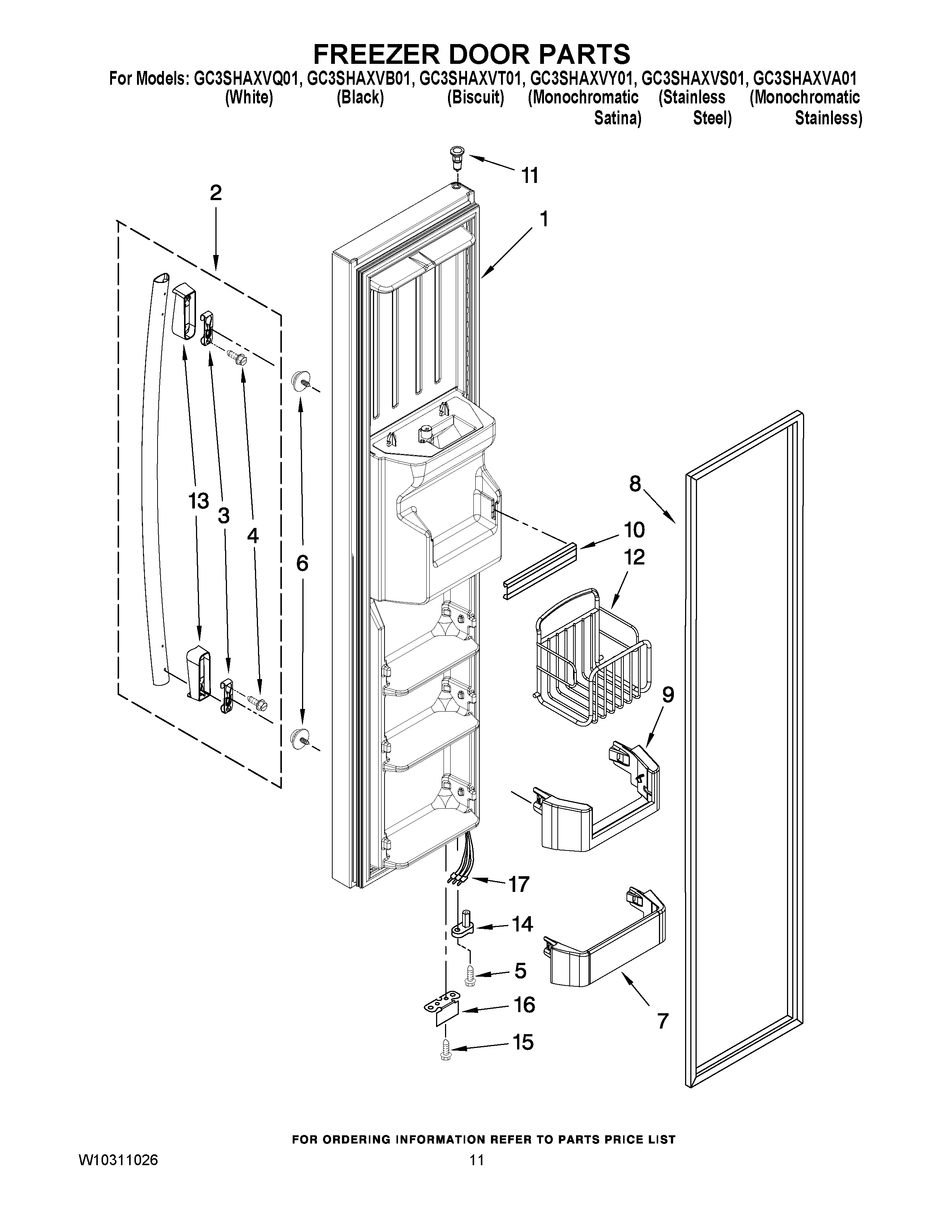

GC3SHAXVQ01 07 – FREEZER DOOR PARTS
Products
Position
Product
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC SATINA)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BISCUIT)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2
W10210944A Whirlpool Refrigerator Handle M
2
W10210943A Whirlpool Refrigerator Handle
2
W10210942A Whirlpool Refrigerator Handle
2
WPW10257120 Whirlpool Refrigerator Handle
3
WP2255411 Whirlpool Refrigerator Clip
4
W10267047 Whirlpool Screw
5
WP3400012 Whirlpool Refrigerator Screw
6
WPW10288153 Whirlpool Refrigerator Screw
7
WP2171157 Whirlpool Shelf Trim
8
GASKET, DOOR (BLACK)
8
GASKET, DOOR (MIST BEIGE)
9
TRIVET, TILT-OUT
10
WPW10307490 Whirlpool Door Trim Assembly
11
WP2182181 Whirlpool Refrigerator Thimble
12
Basket, Tilt Out
13
W10127813 Whirlpool Refrigerator Handle Endcap
13
Handle, Endcap (Stainless, All)
13
Handle, Endcap (Biscuit)
13
Handle, Endcap (Black)
14
W10132977 Whirlpool Refrigerator Door Cam
15
WP489483 Whirlpool Screw
16
W10215323 Whirlpool Bracket
16
BRACKET, DOOR STOP (SILVER)
17
Wire Assy, Door
←
