GC3SHAXVS00 06 – MOTOR AND ICE CONTAINER PARTS

GC3SHAXVS00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

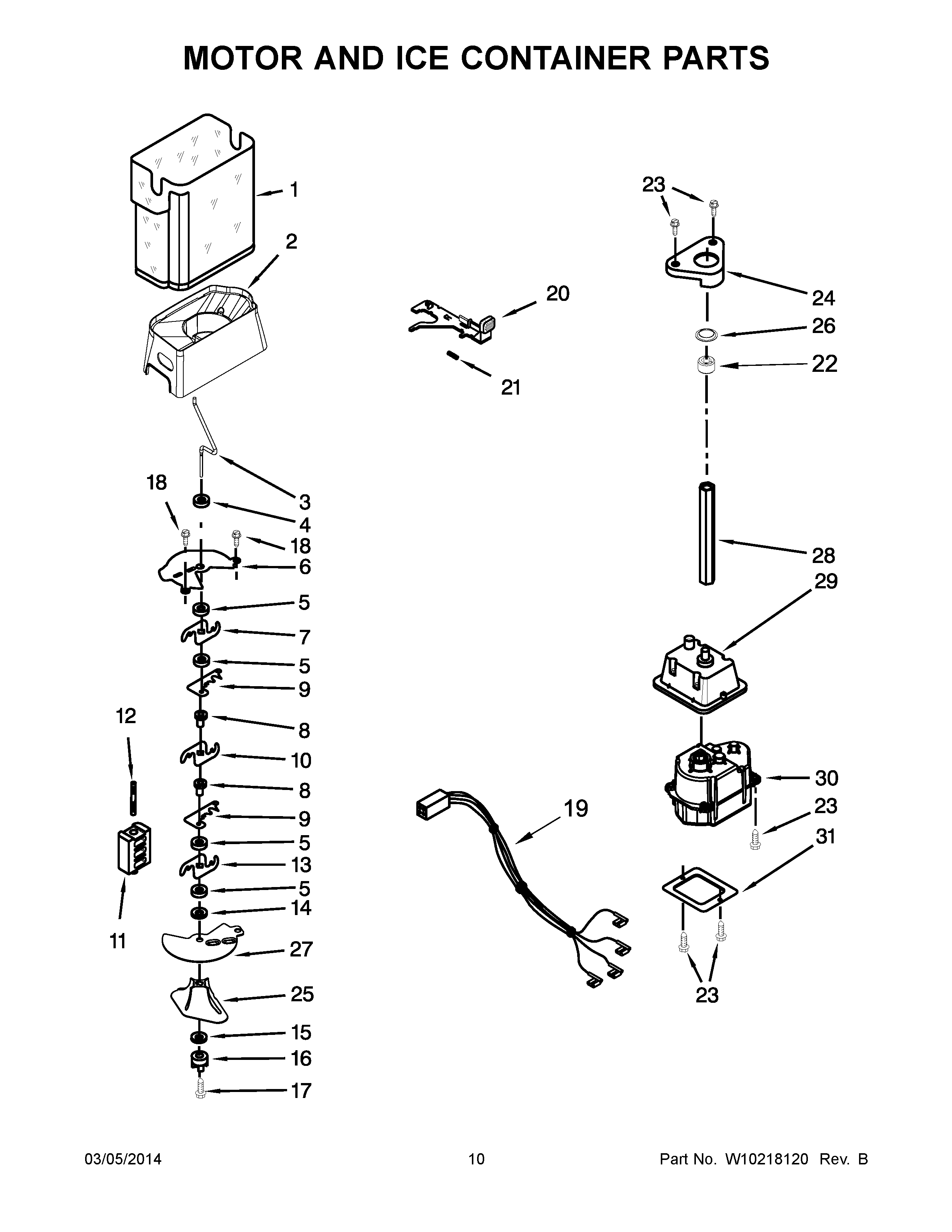

GC3SHAXVS00 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Ice Bin
2WPW10130497 Whirlpool Refrigerator Crush Bin
3WP2317240 Whirlpool Refrigerator Ice Auger
4Washer
5WP1119007 Whirlpool Refrigerator Spacer
6Cover, Crusher
7W10278731 Whirlpool Refrigerator Blade
8WP1119005 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
112317239 Whirlpool Refrigerator Blade Block
12489229 Whirlpool Refrigerator Roll Pin
13W10278733 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16W11629923 Whirlpool Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
19W10193342 Whirlpool Refrigerator Dispenser Harness
20Latch, Bin
21WP2198608 Whirlpool Refrigerator Spring
22WP2315559 Whirlpool Motor Coupling
23WP8281163 Whirlpool Refrigerator Screw
24WP2188919 Whirlpool Refrigerator Holder
252317243 Whirlpool Refrigerator Wiper
26WP2198628 Whirlpool Door Seal
272317250 Whirlpool Refrigerator Divider
28WP2188917 Whirlpool Drive Shaft
29Enclosure, Motor
30W10822606 Whirlpool Dishwasher Dispenser Motor
31Cover
100WP2317251 Whirlpool Refrigerator Ice Container
