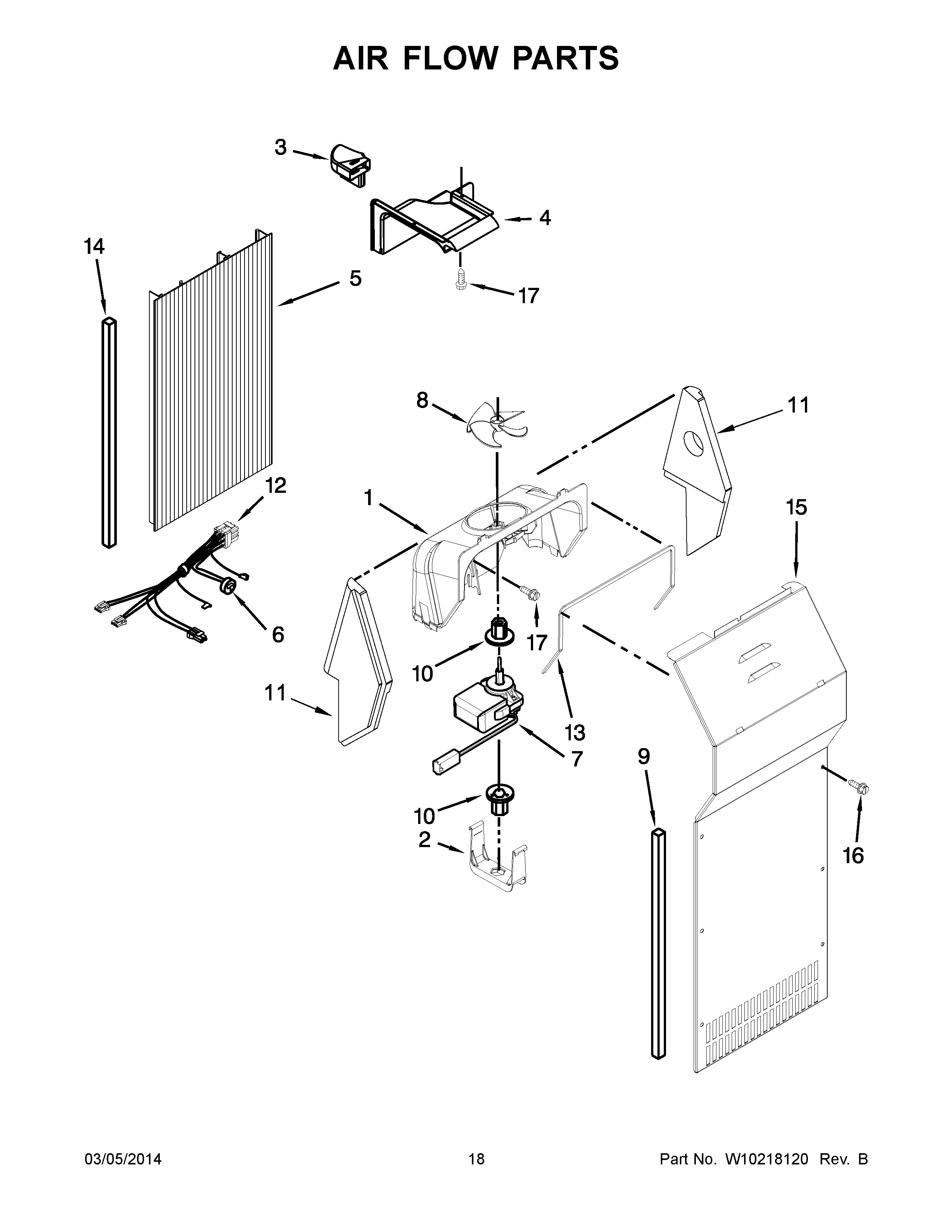

GC3SHAXVS00 10 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	8201663 Whirlpool Refrigerator Primary Fan Blade
3	Air Scoop
4	Air Duct, Upper
5	2223771 Whirlpool Refrigerator Air Duct
6	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7	Motor, Fan
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	W11669856 Whirlpool Grommet
11	Support, R.S
11	4388358 Whirlpool Refrigerator Support Bracket
12	Harness, Fan Evaporator (Includes 6)
13	WP2155789 Whirlpool Refrigerator Gasket
14	4388500 Whirlpool Refrigerator Gasket
15	2223413 Whirlpool Refrigerator Evaporator Cover
16	4389654 Whirlpool Screw
17	WP489478 Whirlpool Refrigerator Screw
