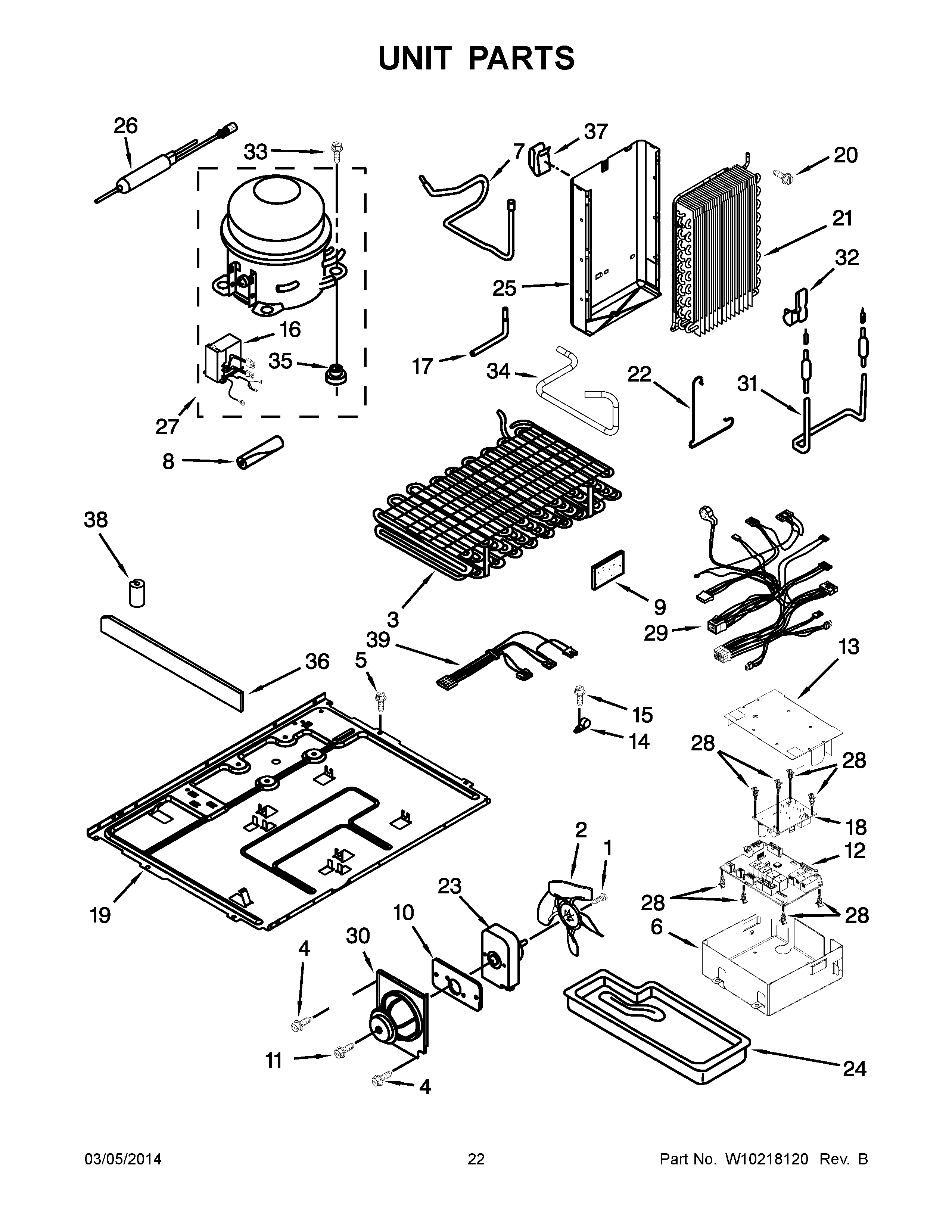

GC3SHAXVS00 12 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	VALVE, ACCESS (1/2“)
1	WP488234 Whirlpool Air Conditioner Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	WPW10171469 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	Plate, Mounting
11	WP489464 Whirlpool Refrigerator Screw
12	WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
13	COVER, CONTROL BOX
14	WP1115374 Whirlpool Refrigerator Clip
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
16	W10893917 Whirlpool Refrigerator Inverter Box
17	W10858105 Whirlpool Refrigerator Tube
18	WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core
19	Baseplate
20	WP489478 Whirlpool Refrigerator Screw
21	WP2188823 Whirlpool Refrigerator Evaporator
22	Clamp
23	WP2188874 Whirlpool Refrigerator Condenser Motor
24	Tray, Evaporator
25	SHIELD, HEAT
26	WPW10143759 Whirlpool Dryer Filter
27	8201675 Whirlpool Refrigerator Compressor
28	2223800 Whirlpool Refrigerator Spacer
29	Harness, Main Control
30	BRACKET, FAN MOUNTING
31	Heater, Defrost
32	W11623163 Whirlpool Refrigerator Clip
33	876811 Whirlpool Grommet
34	Tube, Discharge
35	WP4387558 Whirlpool Refrigerator Compressor Grommet
36	2223394 Whirlpool Extension
37	Clip, Heat Shield
38	W10852725 Whirlpool Refrigerator Grommet
39	2187737 Whirlpool Refrigerator Wire Harness
