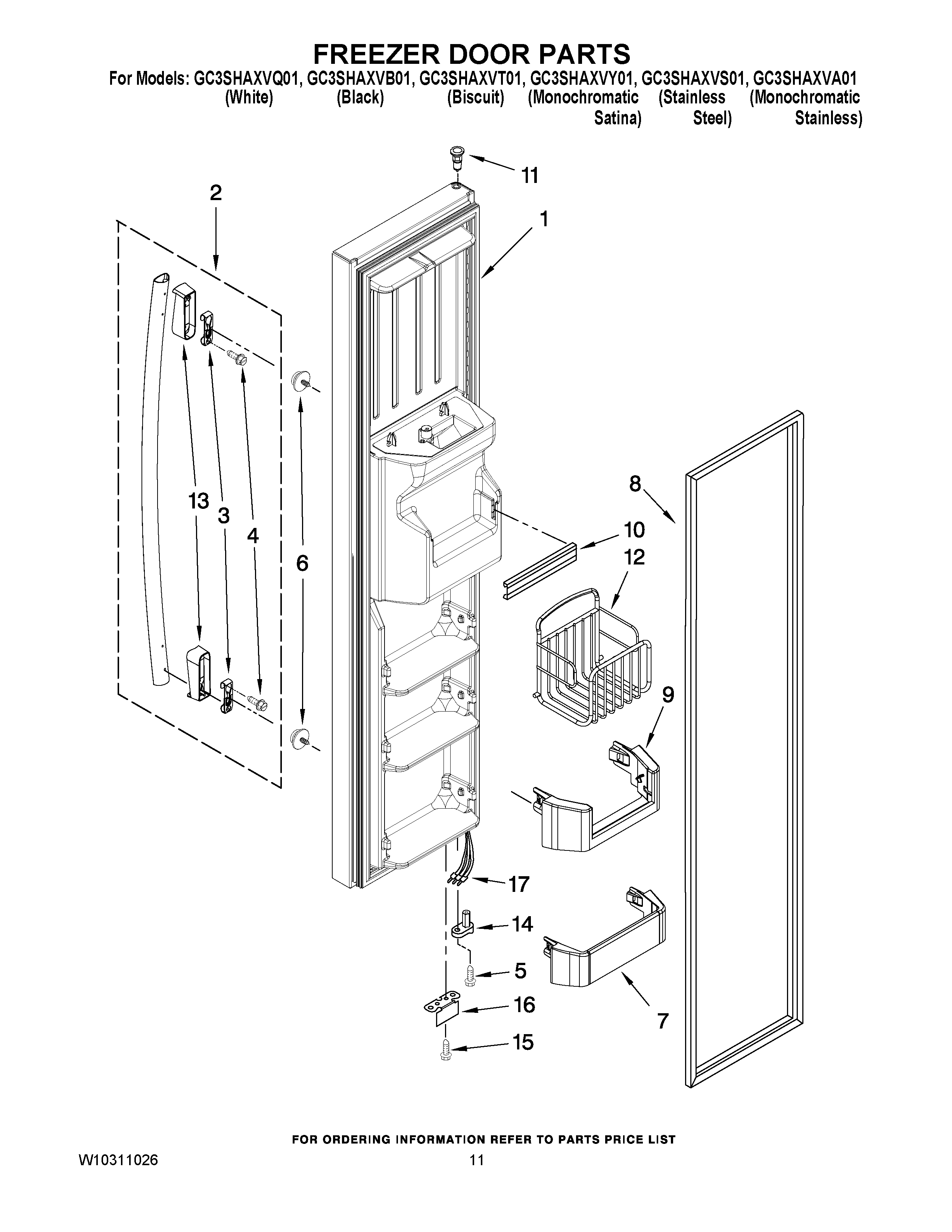

GC3SHAXVY01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC SATINA)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BISCUIT)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2	W10210944A Whirlpool Refrigerator Handle M
2	W10210943A Whirlpool Refrigerator Handle
2	W10210942A Whirlpool Refrigerator Handle
2	WPW10257120 Whirlpool Refrigerator Handle
3	WP2255411 Whirlpool Refrigerator Clip
4	W10267047 Whirlpool Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WPW10288153 Whirlpool Refrigerator Screw
7	WP2171157 Whirlpool Shelf Trim
8	GASKET, DOOR (BLACK)
8	GASKET, DOOR (MIST BEIGE)
9	TRIVET, TILT-OUT
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP2182181 Whirlpool Refrigerator Thimble
12	Basket, Tilt Out
13	W10127813 Whirlpool Refrigerator Handle Endcap
13	Handle, Endcap (Stainless, All)
13	Handle, Endcap (Biscuit)
13	Handle, Endcap (Black)
14	W10132977 Whirlpool Refrigerator Door Cam
15	WP489483 Whirlpool Screw
16	W10215323 Whirlpool Bracket
16	BRACKET, DOOR STOP (SILVER)
17	Wire Assy, Door
