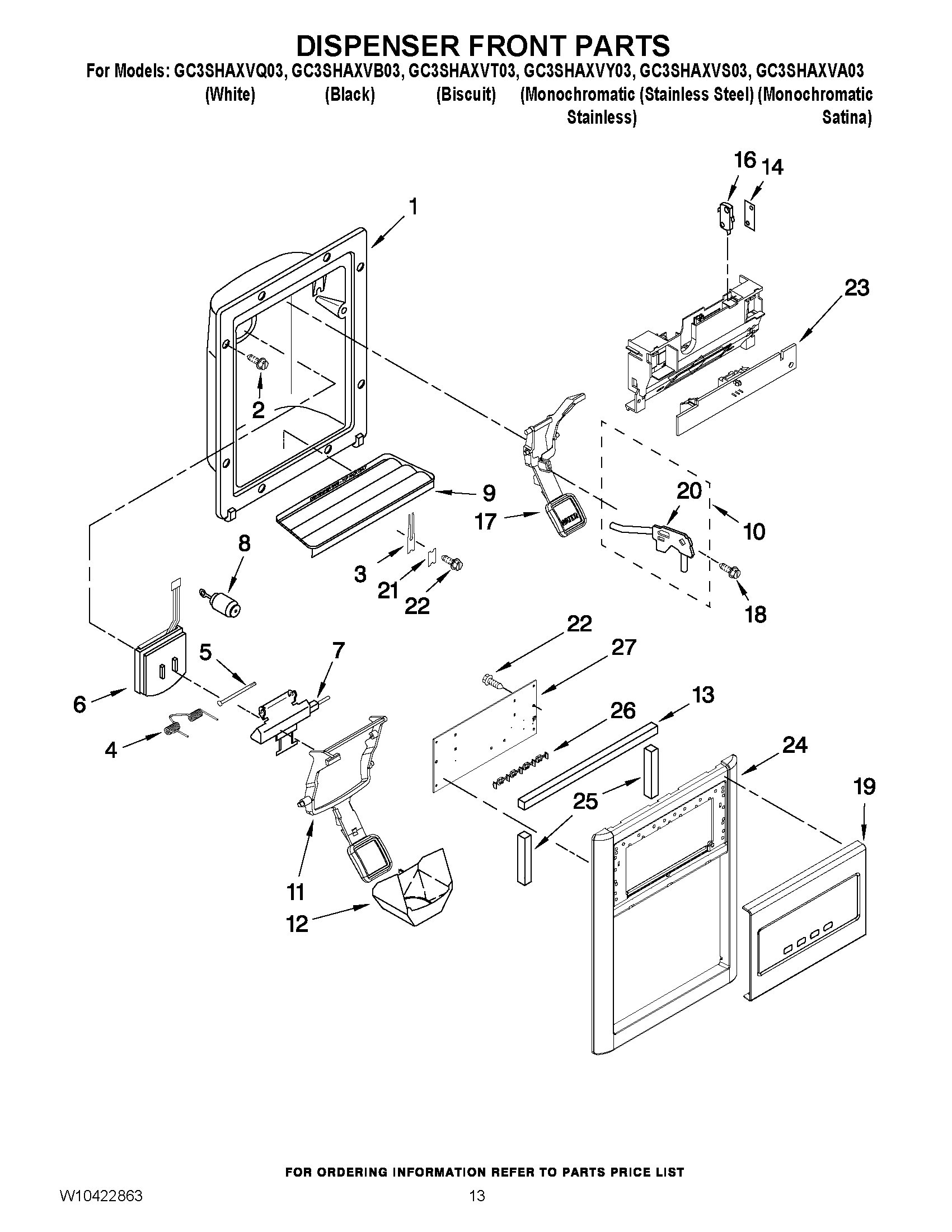

GC3SHAXVY03 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670W Whirlpool Dispenser Tray
9WP2206670T Whirlpool Refrigerator Grille
9WP2206670B Whirlpool Dispenser Tray
108201537 Whirlpool Water Tubing Assembly
11W10152855 Whirlpool Refrigerator Dispenser Arm
11W10155161 Whirlpool Refrigerator Dispenser Arm
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
11WPW10152853 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
132305571 Whirlpool Gasket Assembly
14Spacer, Switch (2)
16WP2162361 Whirlpool Switch
17WPW10152859 Whirlpool Refrigerator Dispenser Arm
17W10152860 Whirlpool Refrigerator Dispenser Arm
17Lever, Water Dispenser (Apollo Grey)
17WPW10152858 Whirlpool Refrigerator Dispenser Arm
18WP3400906 Whirlpool Refrigerator Screw
19W10136850 Whirlpool Refrigerator Front Cover
19W10136852 Whirlpool Front Cover
19W10171988 Whirlpool Refrigerator Front Cover
19Bezel, Disp (Black)
19Bezel, Disp (Mono Satina (SS))
20WP2304673 Whirlpool Refrigerator Bracket
21WP2195051 Whirlpool Refrigerator Clip
22WP3400065 Whirlpool Refrigerator Screw
23LED Assy
24Fascia, Disp (White)
24Fascia, Disp (Black)
24Fascia, Disp (Mono Satina)
24Fascia, Disp (Mono Stainless)
24W10139748 Whirlpool Escutcheon
25Gasket, Disp (2)
26Support, Window
27WPW10175973-includeCORE Whirlpool WPW10175973 Refrigerator Electronic Control Board + Core
