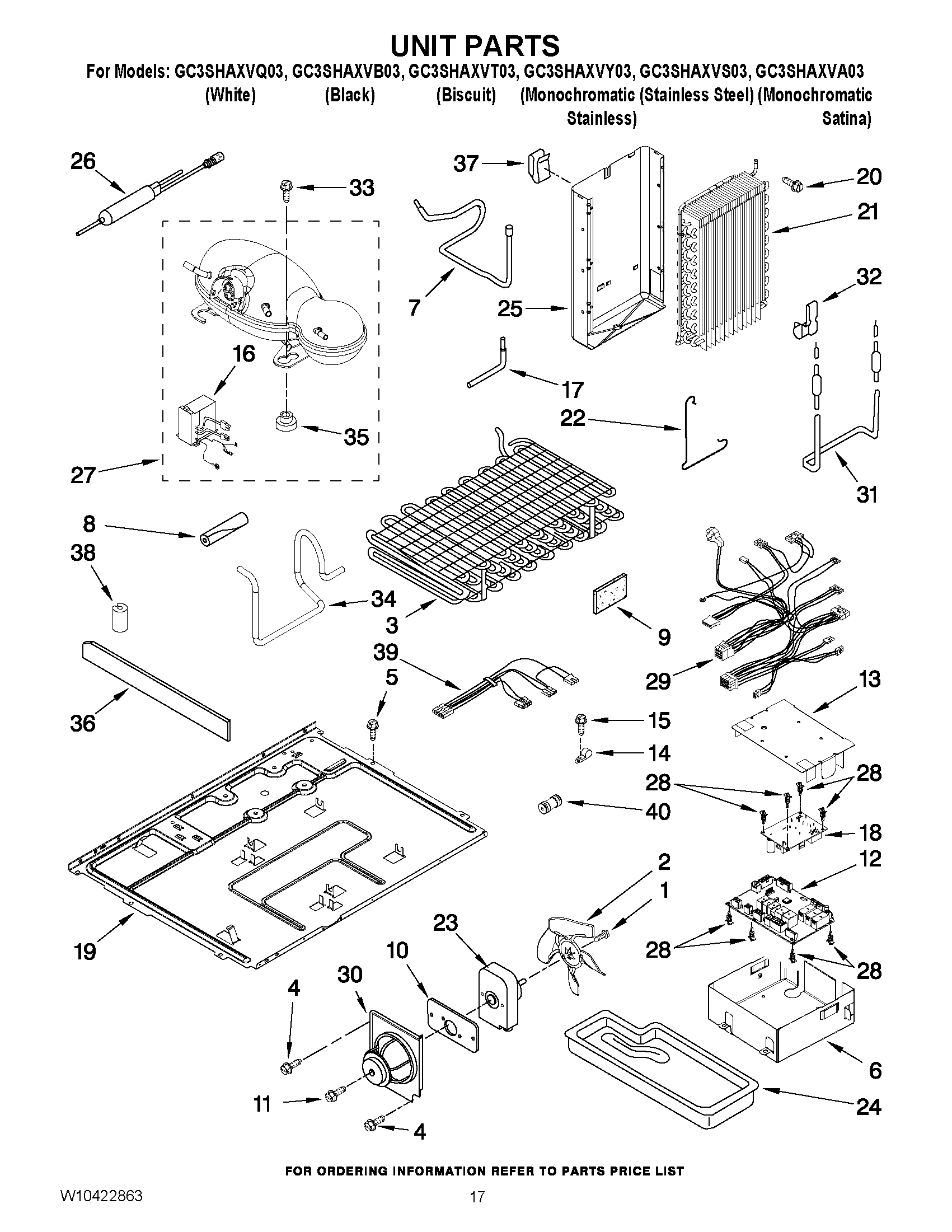

GC3SHAXVY03 11 – UNIT PARTS

GC3SHAXVY03 11 – UNIT PARTS

Written by

in

GC3SHAXVY03 11 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
1WP488234 Whirlpool Air Conditioner Screw
2WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3ASSEMBLY, CONDENSER
4WPW10171469 Whirlpool Refrigerator Screw
53400524 Whirlpool Refrigerator Screw
6HOUSING, CONTROL BOARD
7TUBE SUCTION
8SLEEVE
9W11553819 Whirlpool Refrigerator Insulation
10Plate, Mounting
11WP489464 Whirlpool Refrigerator Screw
12WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
13COVER, CTRL BOARD
14WP1115374 Whirlpool Refrigerator Clip
15WPW10141625 Whirlpool Refrigerator Screw Assembly
16INVERTER BOX ASSY (PART NOT AVAIL. CALL 1-800-832-7140)
17W10858105 Whirlpool Refrigerator Tube
18WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core
19Baseplate
20WP489478 Whirlpool Refrigerator Screw
21WP2188823 Whirlpool Refrigerator Evaporator
22Clamp
23WP2188874 Whirlpool Refrigerator Condenser Motor
24Tray, Evaporator
25SHIELD, HEAT
26WPW10143759 Whirlpool Dryer Filter
27COMPRESSOR (PART NOT AVAIL. CALL 1-800-832-7140)
282223800 Whirlpool Refrigerator Spacer
29Harness, Main Control
30BRACKET, FAN MOUNTING
31Heater, Defrost
32W11623163 Whirlpool Refrigerator Clip
33876811 Whirlpool Grommet
34TUBE, DISCHARGE
35W11661108 Whirlpool Grommet
362223394 Whirlpool Extension
37Clip, Heat Shield
38W10852725 Whirlpool Refrigerator Grommet
392187737 Whirlpool Refrigerator Wire Harness
40Fitting, Water Tube
