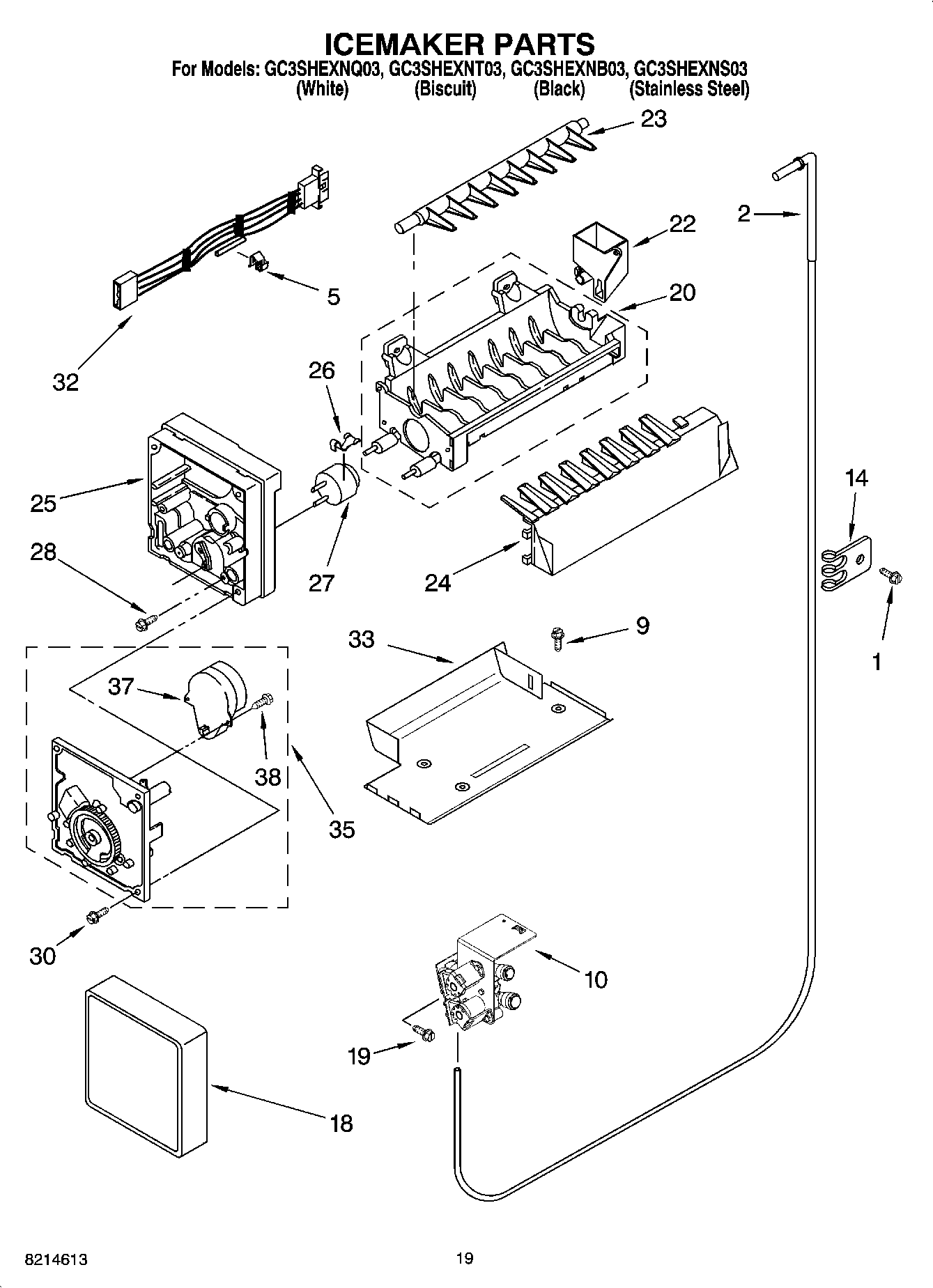

GC3SHEXNS03 12 – ICEMAKER PARTS, OPTIONAL PARTS

GC3SHEXNS03 12 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

GC3SHEXNS03 12 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 799833
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	Enamel, Black (1 Qt. Uncut)
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	212643 Whirlpool Refrigerator Permagum Sealer
	WPL 876029
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI60105A7
	WP503695 Whirlpool Refrigerator Sealer
	WPL ARI60104A2
	WPL ARI60103A6
	WPL ARI60102A1
	Ice Container Assembly
	WPL ARI60106A8
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
2	WP2256096 Whirlpool Refrigerator Fitting
5	WP628379 Whirlpool Refrigerator Clip
9	WP489478 Whirlpool Refrigerator Screw
10	W10247725 Whirlpool Water Inlet Valve
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
32	WP2187467 Whirlpool Refrigerator Wire Harness
33	WP2212322 Whirlpool Refrigerator Bracket
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	2198597 Whirlpool Refrigerator Ice Maker
