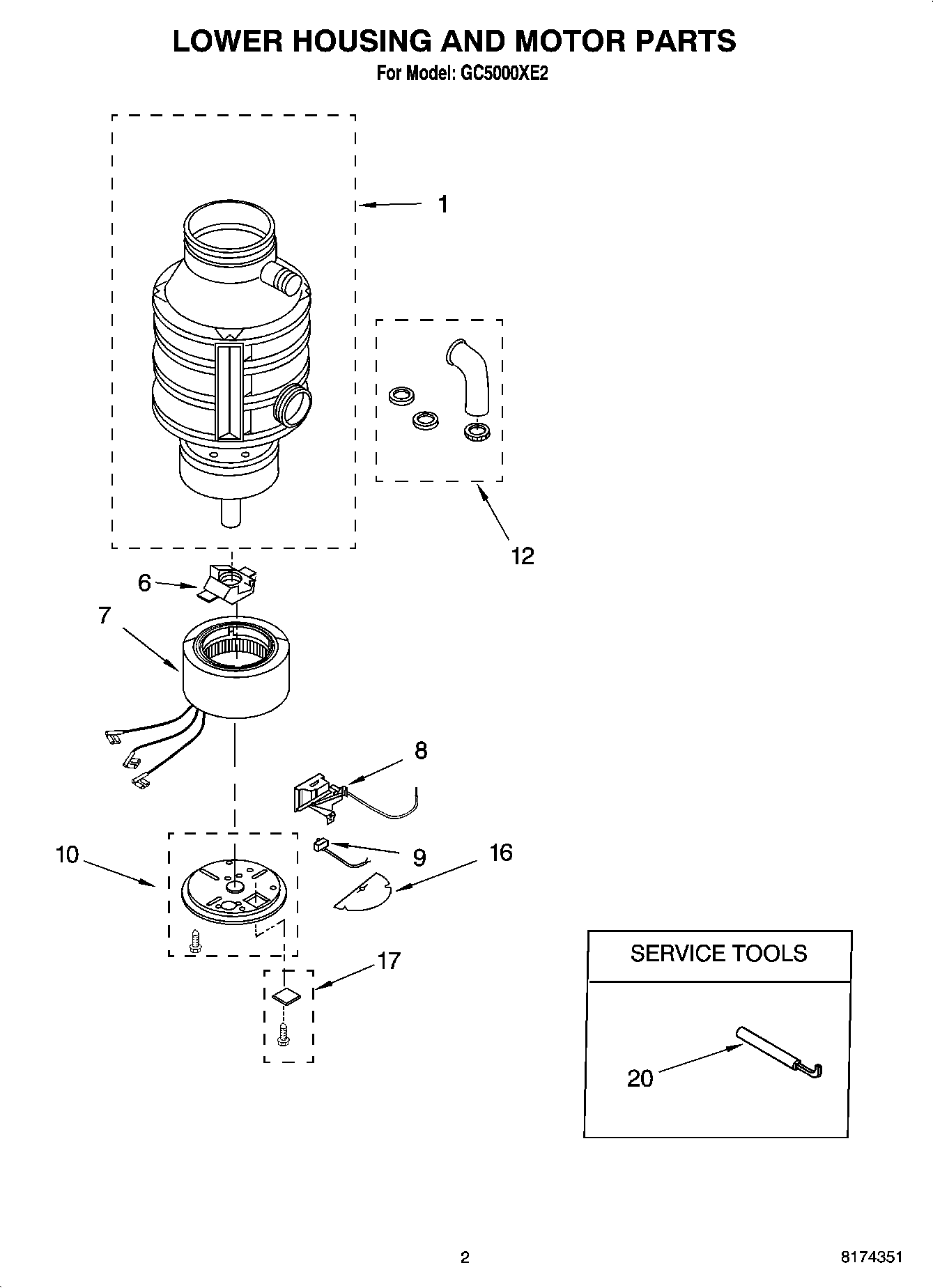

GC5000XE2 02 – LOWER HOUSING AND MOTOR PARTS

Products

PositionProduct
1Enclosure Assy (Not Serviceable)
64211322 Whirlpool Disposer Actuator
7Stator Assembly
88174312 Whirlpool Disposer Switch
9Overload, Protector
108174345 Whirlpool Frame
128174355A Whirlpool Disposer Installation Kit
16Shield, Wire
17Cover, Terminal
20Guide, Use And Care
20FOLLOWING PARTS NOT ILLUSTRATED
20WP8174310 Whirlpool Disposer Wrench
