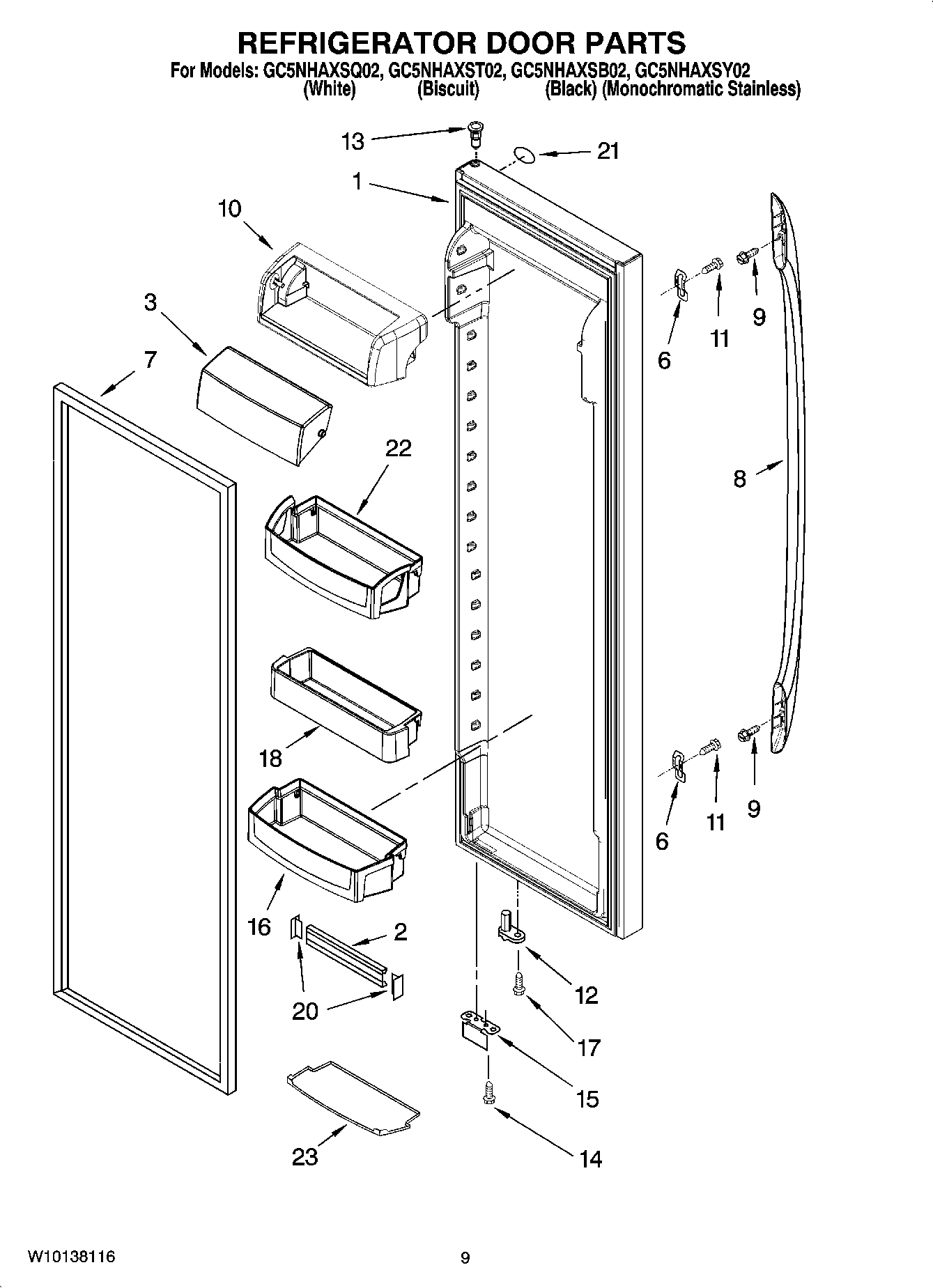

GC5NHAXSQ02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (White)
1	Refrigerator Door (Includes 7) (Biscuit)
1	Refrigerator Door (Includes 7) (Black)
1	Refrigerator Door (Includes 7) (Monochromatic Stainless)
2	Trim, Shelf
3	Dairy Door
6	WP2255411 Whirlpool Refrigerator Clip
7	2306992 Whirlpool Refrigerator FIP Gasket
7	2306996 Whirlpool Refrigerator Door Gasket
7	W10136737 Whirlpool Refrigerator FIP Gasket
8	Handle (White)
8	Handle (Universal Silver)
8	Handle (Biscuit)
8	Handle (Black)
9	SCREW
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	WP489491 Whirlpool Refrigerator Screw
12	CLOSER, DOOR
13	Thimble, Top (For Stainless Steel Models)
14	WP489483 Whirlpool Screw
15	2306940B Whirlpool Refrigerator Bracket
15	2306940 Whirlpool Refrigerator Bracket
16	Door Bin (3)
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2224173 Whirlpool Refrigerator Cantilever Bin
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Nameplate
22	Door Bin (2)
23	Mat, Bin (2)
