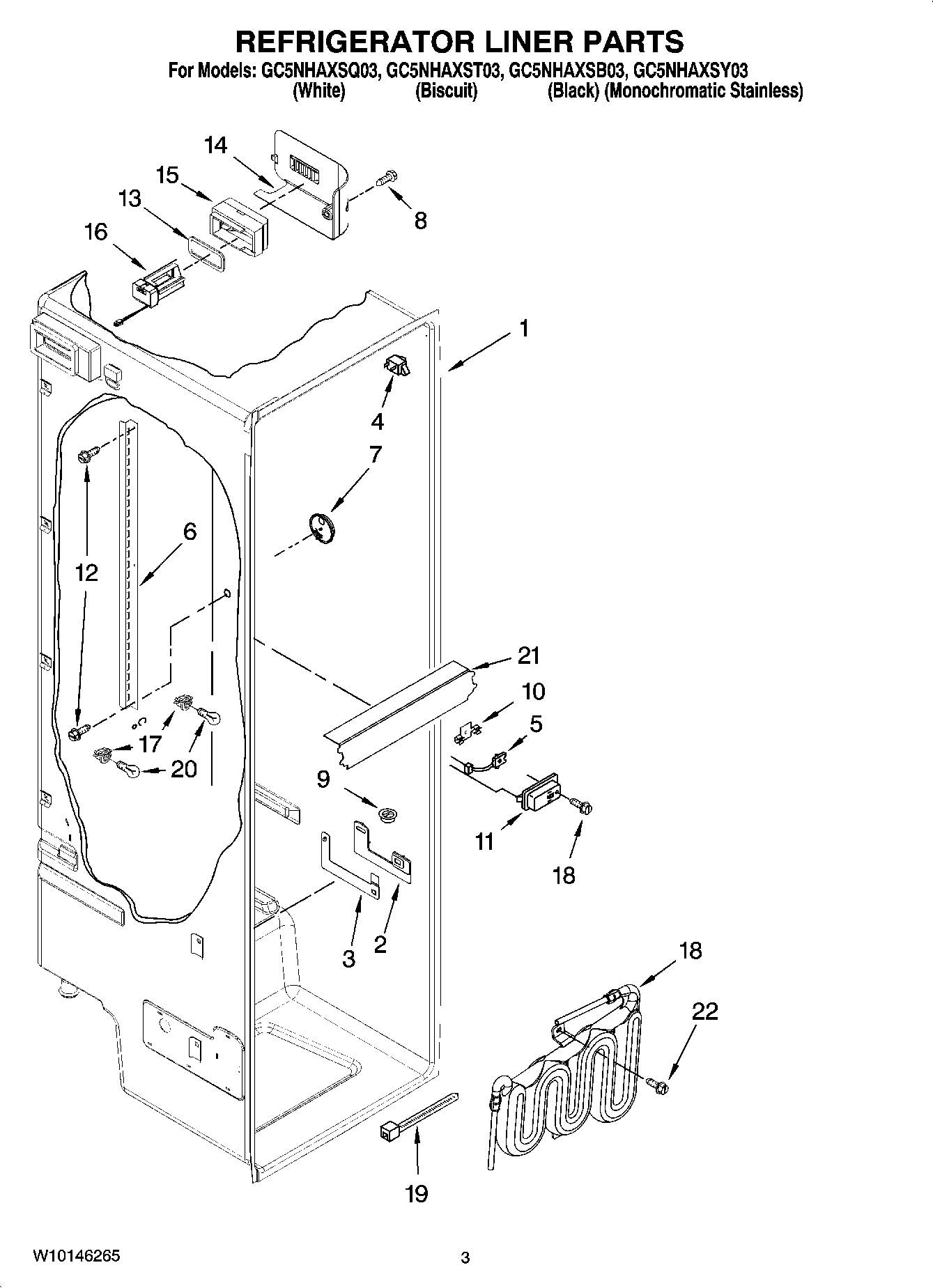

GC5NHAXST03 02 – REFRIGERATOR LINER PARTS

GC5NHAXST03 02 – REFRIGERATOR LINER PARTS

Written by

in

GC5NHAXST03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22223524 Whirlpool Escutcheon
32223339 Whirlpool Slide
4W11384469 Whirlpool Door Switch
5WP2188820 Whirlpool Refrigerator Thermistor
6Ladder, Shelf (2)
7Door Control Asm
92171846 Whirlpool Refrigerator Release Valve
10Clip, Thermistor
111116793 Whirlpool Refrigerator Cover
12WP489478 Whirlpool Refrigerator Screw
13Gasket, Air Baffle
14COVER, AIR DIFFUSER
15ASSEMBLY, AIR DIFFUSER
16WP2220377 Whirlpool Refrigerator Air Baffle
174387478 Whirlpool Refrigerator Light Socket
18RESERVOIR
19WP2205813 Whirlpool Refrigerator Wire Tie
20RANGE ONLY 40W 120V APPL BULB
21LENS, LIGHT
22Screw (2)
