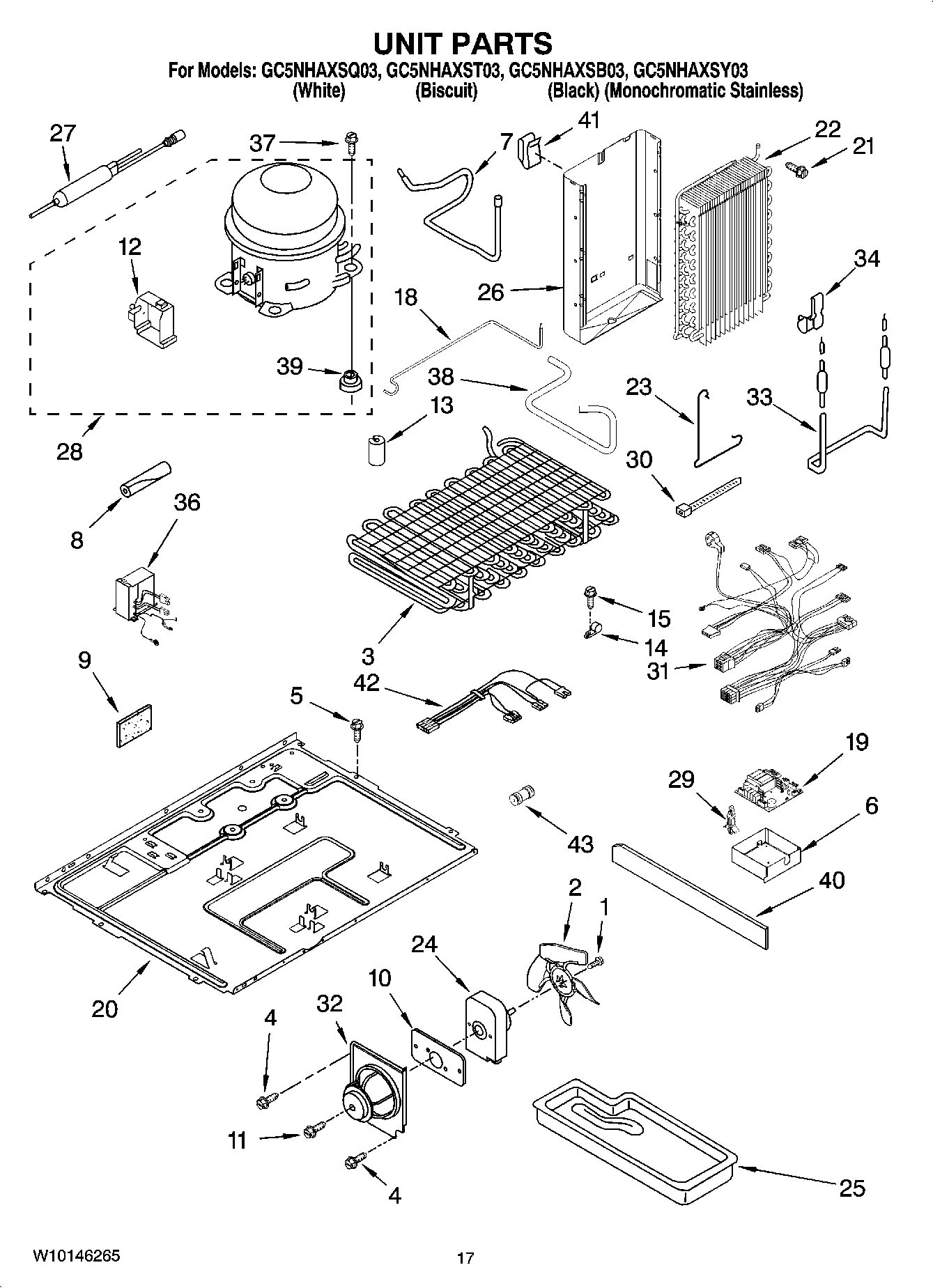

GC5NHAXST03 11 – UNIT PARTS

GC5NHAXST03 11 – UNIT PARTS

Written by

in

GC5NHAXST03 11 – UNIT PARTS

Products

PositionProduct
1WP488234 Whirlpool Air Conditioner Screw
2W11458267 Whirlpool Refrigerator Fan Blade
3W10193018 Whirlpool Refrigerator Condenser
48281197 Whirlpool Refrigerator Screw
53400524 Whirlpool Refrigerator Screw
6Housing, Control Board
7W10528579 Whirlpool Refrigerator Tube
8SLEEVE
9W11553819 Whirlpool Refrigerator Insulation
10Plate
11WP8281196 Whirlpool Screw
122215676 Whirlpool Refrigerator Terminal Cover
13W10852725 Whirlpool Refrigerator Grommet
14WPL 2305373
15WPW10141625 Whirlpool Refrigerator Screw Assembly
18Tube, Condenser to Heat Loop
19W10219463 Whirlpool Control Board + Core
20Baseplate
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25Tray, Evaporator
26SHIELD, HEAT
27W10843121 Whirlpool Refrigerator Tube
288201675 Whirlpool Refrigerator Compressor
292223800 Whirlpool Refrigerator Spacer
30WPW10339879 Whirlpool Wire Tie
31WP2310122 Whirlpool Refrigerator Wire Harness
32BRACKET, FAN MOUNTING
33WP2210737 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
36W10629033 Whirlpool Refrigerator Inverter Control Box
38Tube, Discharge
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
402223394 Whirlpool Extension
41Clip, Heat Shield
422310121 Whirlpool Refrigerator Wire Harness
43Following Parts Not Illustrated and Optional Parts Not Included
43VALVE, ACCESS (5/8“)
43WP2300868 Whirlpool Refrigerator Fitting
43876764 Whirlpool Refrigerator Primary Valve
43VALVE, ACCESS (1/2“)
43WP978025 Whirlpool Refrigerator Valve
43978030 Whirlpool Refrigerator Valve
43978027 Whirlpool Refrigerator Primary Valve
43978026 Whirlpool Refrigerator Primary Valve
43REFRIGERANT CHARGE 6.00 oz. (R-134A)
